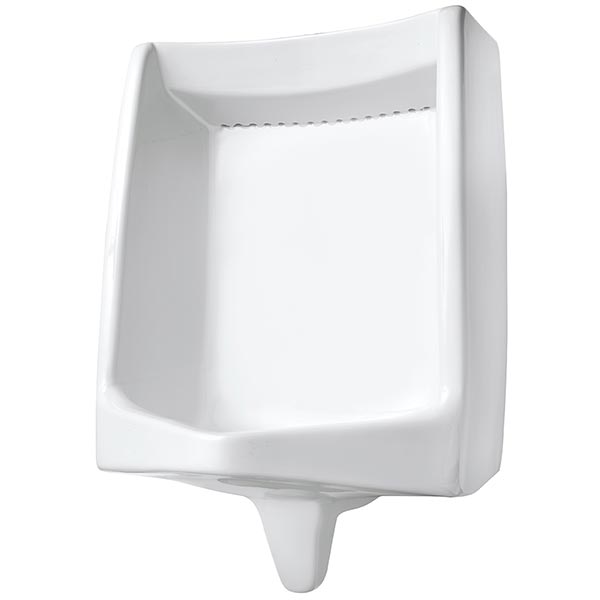

Mansfield 410UHEWH High Efficiency Half-Stall Wall-Mount Wash-Down Urinal with Extended Shields 0.125 or 0.5 gpf

Product Description

The Mansfield 410UHEWH is a high efficiency half-stall wall-mount wash-down urinal designed for commercial use. It features an ultra high-efficiency water consumption rate of either zero point one two five gallons per flush or zero point five gallons per flush, depending on the flushometer used.

• Compact wall-mount design with extended shields
• Integrated trap for easy maintenance
• Includes all necessary installation components

Product Highlights

The Mansfield 410UHEWH is ideal for restrooms in high-traffic areas. This urinal is designed to be durable and easy to clean, making it suitable for commercial environments.

Product Information

Standard Information

• Brand: Mansfield Plumbing Products
• Part Number: C0976

Technical Specifications

• Dimensions: 26-1/4 inches H x 18-5/8 inches W x 14-1/4 inches D
• Finish/Color: White
• Flow Rate: 0.125 or 0.5 gpf
• Includes: 3/4 inch top spud, 2 inch outlet spud and gaskets, two concealed hangers and bolts
• Material: Vitreous China
• Mfg Standards/Approvals: BAA Compliant, ADA compliant
• Mounting Type: Wall-Mount
• Outlet: 2 inch
• Top Spud: 3/4 inch
• Type: Urinal
