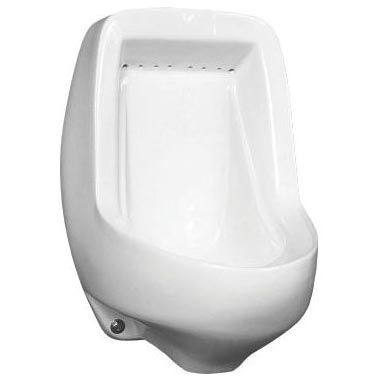

Mansfield 401HE WH Adam Wash-Down Urinal 0.5 gpf Top Spud Wall Mount

Product Description

The Mansfield 401HE WH Adam Wash-Down Urinal is designed for wall mounting and operates at a flush rate of 0.5 gallons per flush (gpf). This unit is made of vitreous china for durability and ease of cleaning. The urinal features a top spud inlet and includes a mounting bracket and hanger.

• Designed for wall installation
• Exposed trap for easy maintenance
• Rim-flushing action for effective waste removal

Product Highlights

The Mansfield 401HE WH is built to meet compliance with ASME and CSA standards while being EPA WaterSense certified, making it an efficient choice for water conservation.

Product Information

Standard Information

• Collection: Adam
• Finish/Color: White

Technical Specifications

• Dimensions: 19.5 inches H x 13.625 inches W x 13.25 inches D
• Flush Rate: 0.5 gpf
• Inlet Spud Size: 3/4 inches
• Outlet Tap Size: 1.5 inches
• Mounting Type: Wall
• Package Weight: 37.0 lbs
• Spud Location: Top
• Warranty: Limited Lifetime
