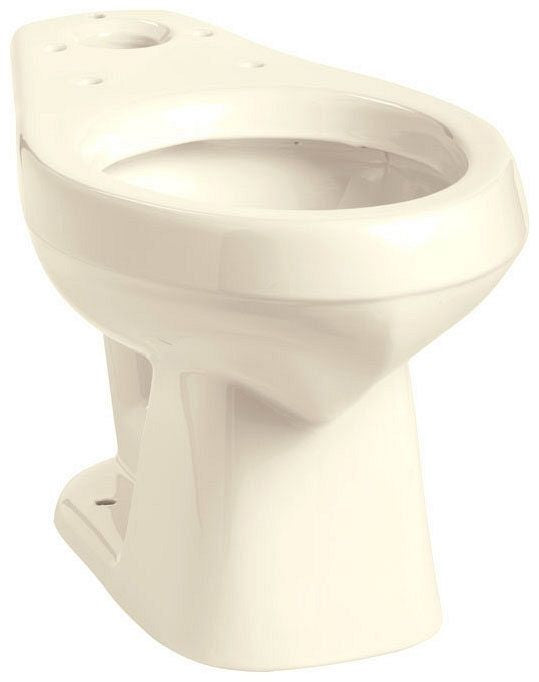

Mansfield 135-CBO 2-Piece Elongated Front Toilet

Product Description

The Mansfield 135-CBO is a two-piece toilet designed with an elongated front bowl. This toilet is made from vitreous china, providing durability and ease of cleaning. It is suitable for floor mounting and requires a twelve-inch rough-in. This model uses 1.6 gallons per flush, making it efficient for water conservation. The recommended working pressure is between fifteen to one hundred twenty-five PSI, ensuring reliable operation. The bottom outlet design and a trapway size of two inches facilitate smooth drainage.

• Two-piece design with elongated front bowl
• Constructed from vitreous china for durability
• Uses 1.6 gallons per flush

Product Highlights

The Mansfield 135-CBO combines efficiency and comfort, suitable for both residential and commercial use.

Product Information

Standard Information

• Material: Vitreous China
• Bowl Height: 14 3/4 inches

Technical Specifications

• Color/Finish: Classic Bone
• Applicable Standards: ANSI/ASME A112.19.2M, ANSI/ASME A112.19.6, CAN/CSA B45
• Toilet Seat: Excluded
• Item: 2-Piece Elongated Front Toilet
• Item Part No: 135-164
• Mounting Type: Floor Mount
• Rough-In: 12 inches
• Gallons Per Flush: 1.6
• Recommended Working Pressure: 15 to 125 PSI
• Outlet Location: Bottom
• Model: 135
• Water Surface Area: 8 1/16 inches x 9 5/16 inches
• Trapway Size: 2 inches
