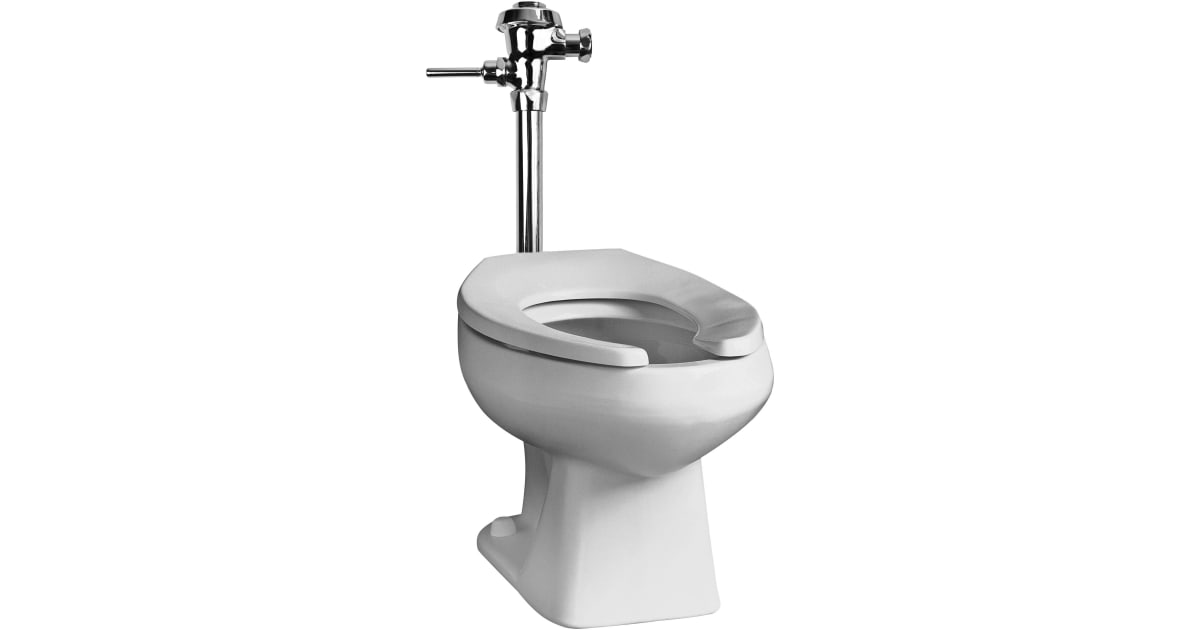

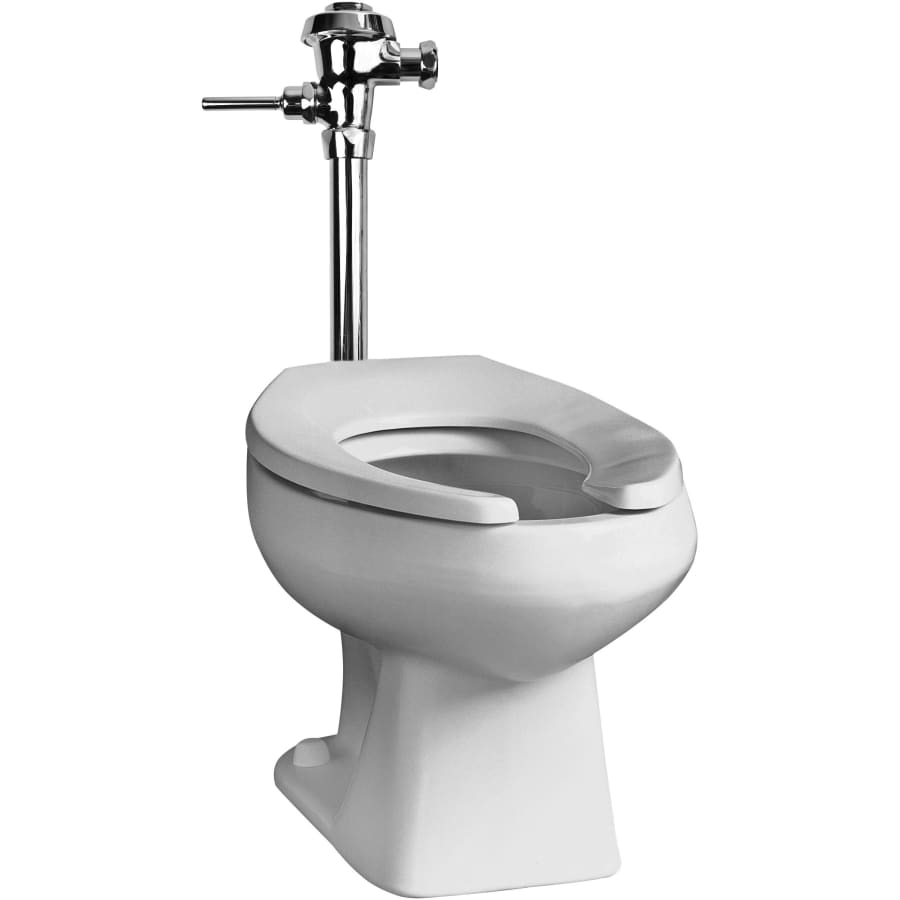

Mansfield 131110000 Bowl 1311NS Elongated (10 in)

Product Description

Mansfield 131110000 is a vitreous china elongated toilet bowl (model 1311NS) designed for a 10-inch rough-in. The bowl incorporates a high-efficiency design and glazed trapway for floor-mounted installations. It accepts a 1.5-inch top spud inlet and uses a 2-inch trapway. Aggregated product dimensions are approximately 14.25 x 14.5 x 28.75 inches and the product weight is 54.0 lb. It is not ADA compliant.

• Vitreous china construction with high-efficiency design
• Elongated 10 in rough-in bowl; 1.5 in top spud inlet and 2 in trapway
• Bowl-only configuration for floor-mounted installation; aggregated dimensions 14.25 x 14.5 x 28.75 in; product weight 54.0 lb

Product Highlights

Elongated vitreous china toilet bowl, 10 in rough-in, high-efficiency; not ADA compliant.

Product Information

Standard Information

• Brand: MANSFIELD
• Manufacturer Part Number: 131110000
• Country of Origin: USA

Technical Specifications

• Brand: MANSFIELD
• Manufacturer Part Number: 131110000
• Model Number: 1311NS
• Product Type: Toilet bowl (bowl only)
• Material: Vitreous China
• Bowl Shape: Elongated
• Rough-In: 10 in
• Inlet Connection: 1.5 in top spud
• Trapway Size: 2 in
• Mounting Type: Floor mounted
• Outlet Location: Bottom outlet
• High Efficiency: Yes
• ADA Compliant: No
• Product Weight: 54.0 lb
• Aggregated Product Dimensions: 14.25 x 14.5 x 28.75 in
• Gallons Per Flush: 1.60
• Water Area: 9.75 x 11.5 in
• Distance Between Seat Installation Holes: 5.5 in
• Certifications: UPC, ASME, CSA
• ASME Code: A112.19.2
• Approved for Commercial Use: Yes
• UPC: 46587048479
• Made In USA: No
