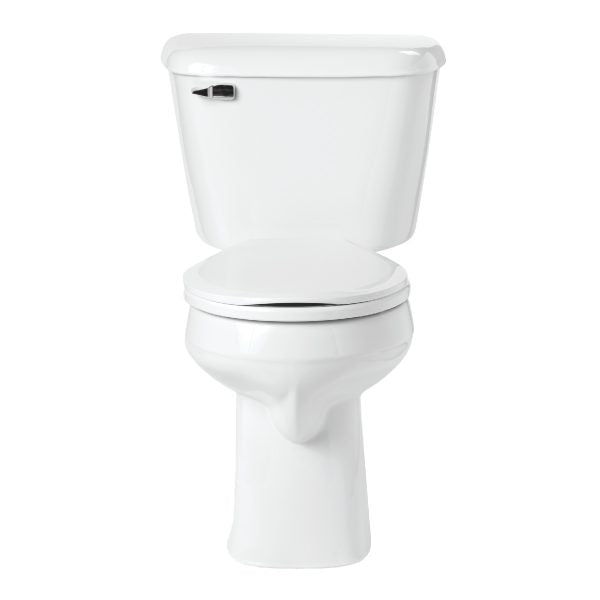

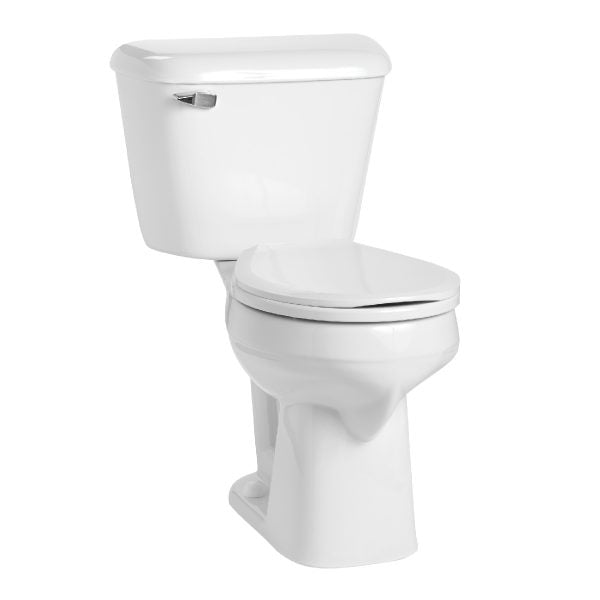

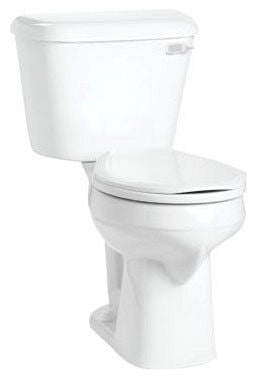

MANSFIELD 117WHT Alto 1.6 GPF Round Front Toilet

Product Description

The Mansfield 117WHT is a two-piece, round-front toilet designed for efficient flushing. This model features a gravity flush system with a rate of 1.6 gallons per flush. With a twelve-inch rough-in, it fits standard installations. The bowl height is sixteen and three-quarter inches, classified as SmartHeight for comfort and accessibility, compliant with ADA standards.

• Two-piece toilet configuration.
• Gravity flush system with a flush rate of 1.6 GPF.
• Constructed from durable vitreous china.

Product Highlights

This toilet is practical for residential and light commercial use, offering efficient performance and comfort.

Product Information

Standard Information

• Model Number: 117-160
• Color: White

Technical Specifications

• Configuration: Two Piece
• Bowl Shape: Round
• Material: Vitreous China
• Flush Type: Gravity Flush
• Gallons Per Flush: 1.6
• Rough-In: 12 inches
• Bowl Height: 16-3/4 inches
• Overall Dimensions: 31-1/2 inches (Height) x 19-3/4 inches (Width) x 26-1/2 inches (Depth)
• Weight: 83 lbs.
• Trapway Size: 2 inches
• Flush Valve Size: 2 inches
• Certifications: UPC, ASME, CSA
• ADA Compliant: Yes
