Manitowoc JCT1500-261 Remote Condenser Unit 208/230V (27.94 x 29.5 x 38.0 inches) MANJCT1500-261

Product Description

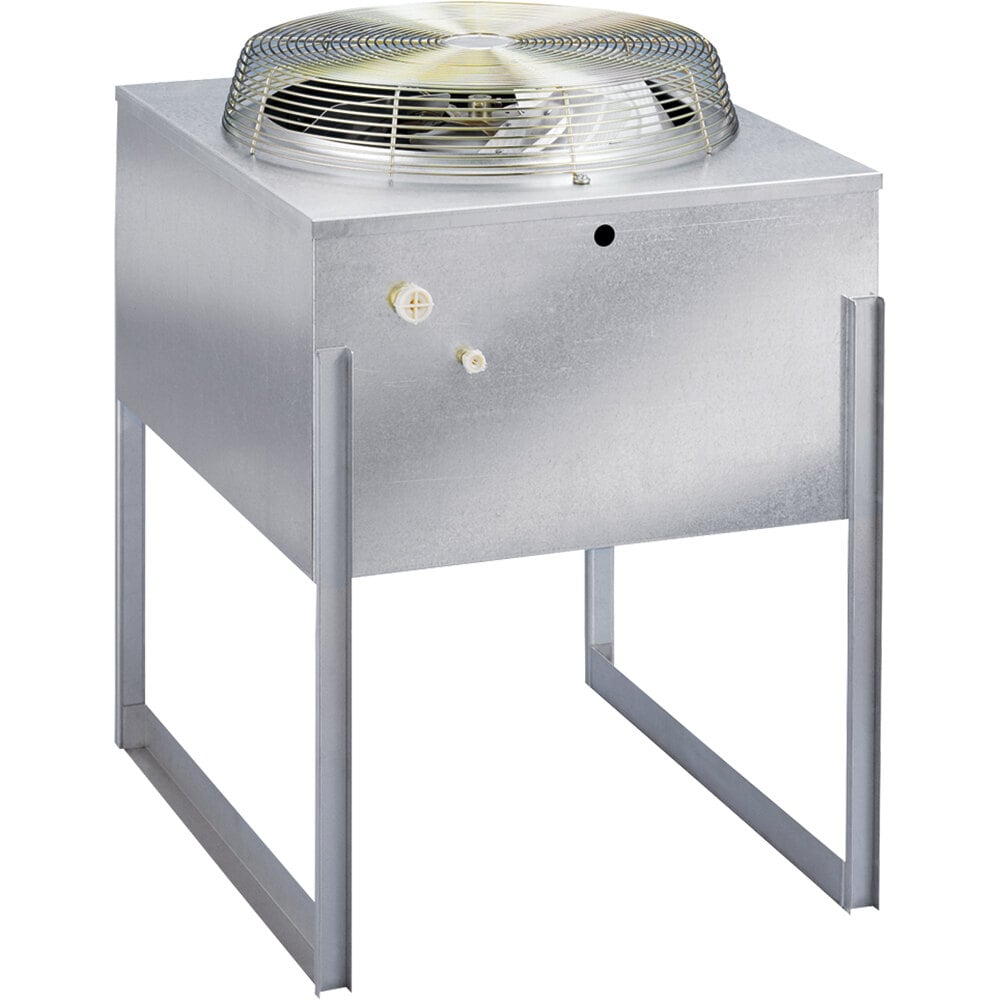

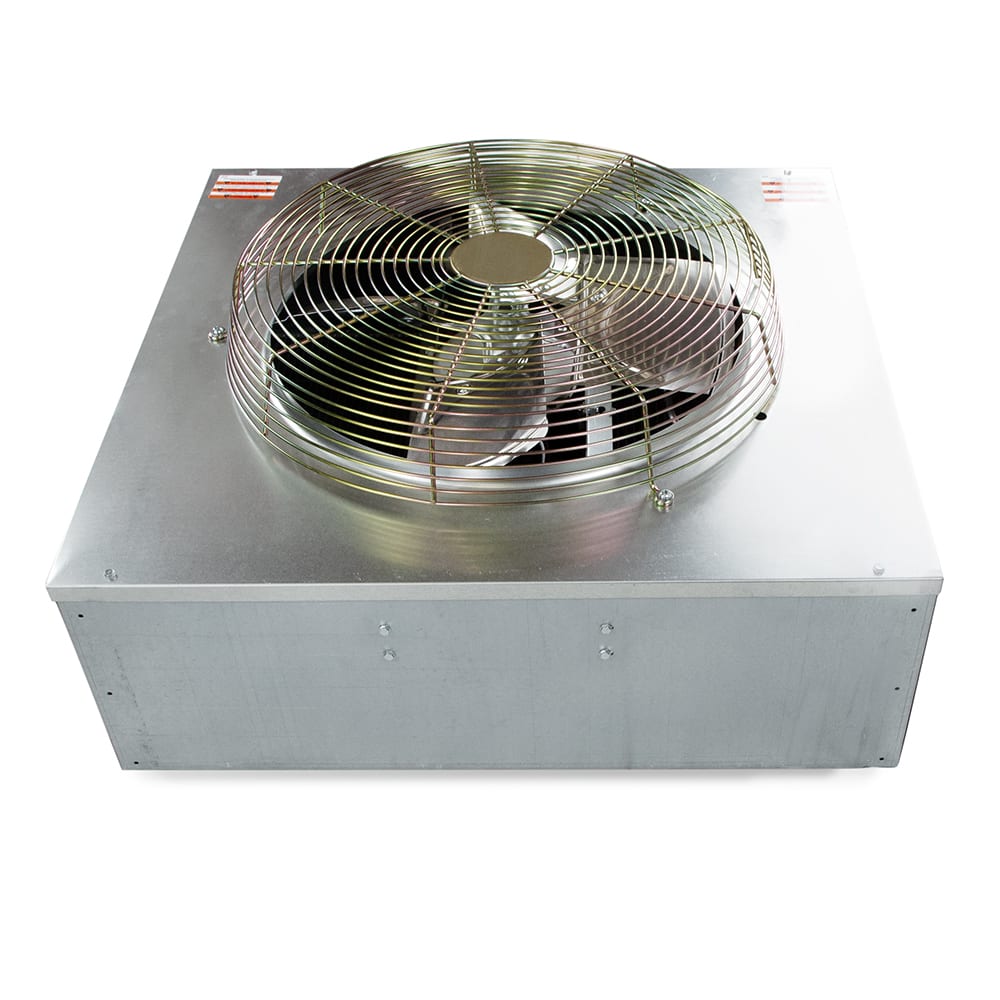

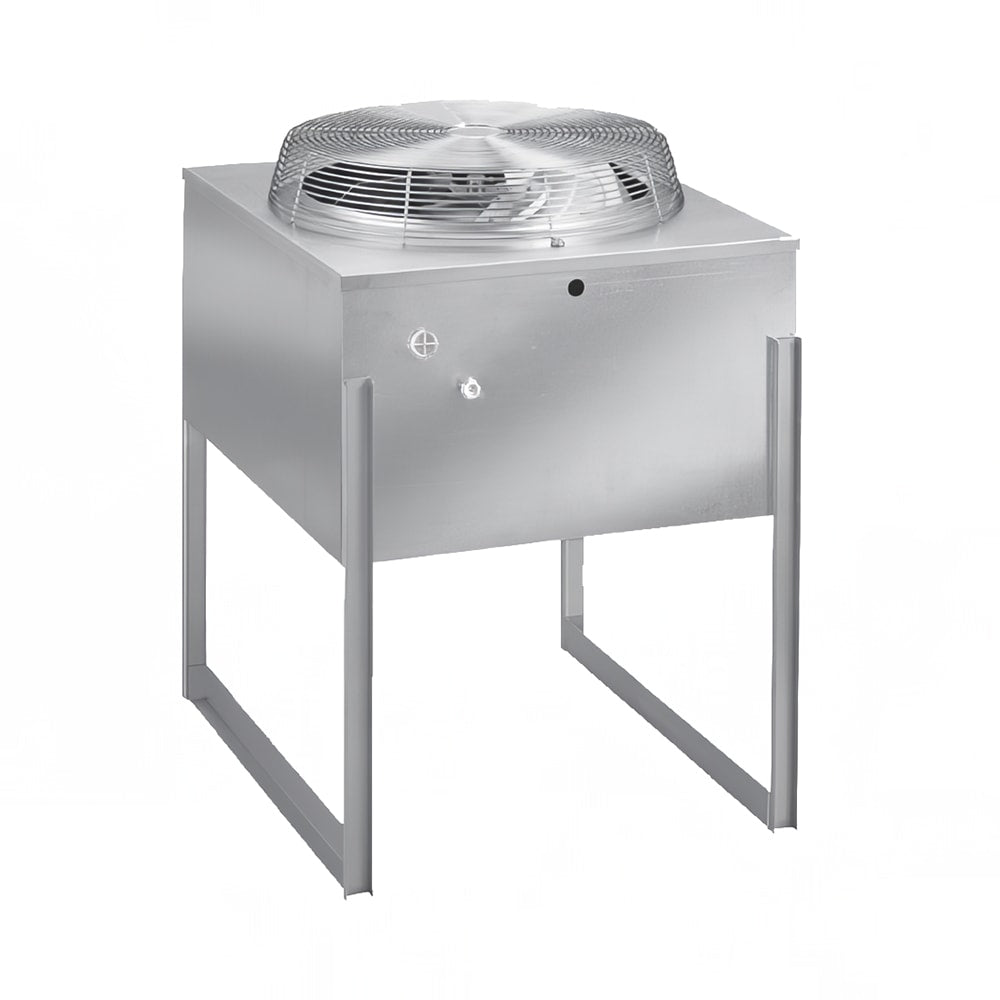

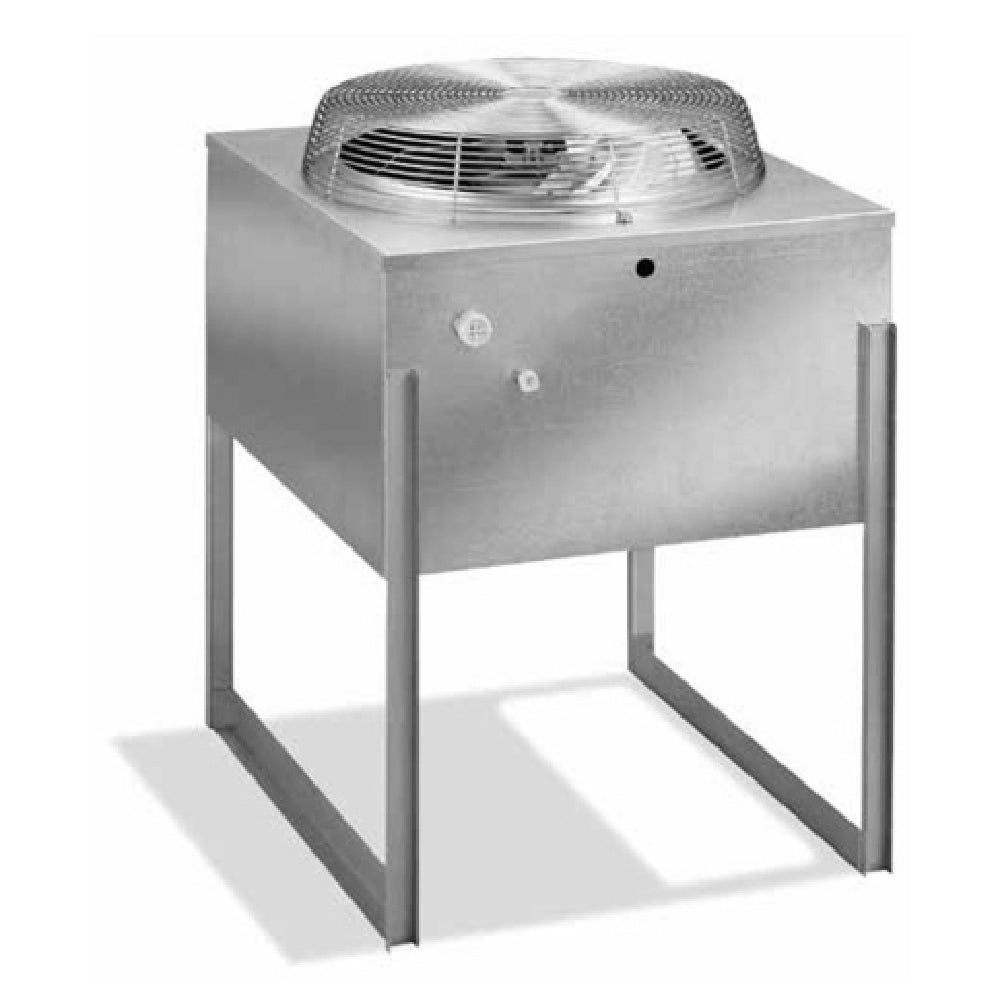

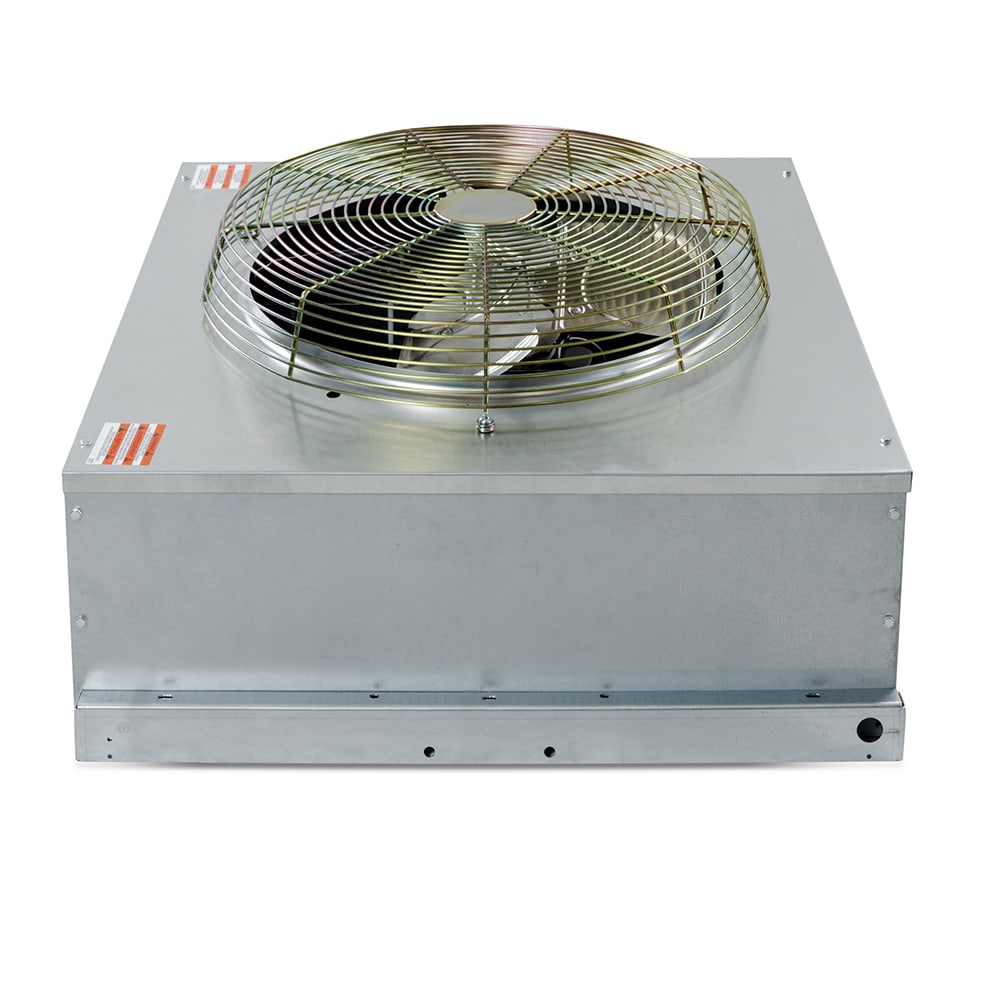

The Manitowoc JCT1500-261 is a remote, vertical-discharge air-cooled condenser for Manitowoc IT1500N and IT1900N ice machine heads. It operates on 208/230V single-phase power with R404A refrigerant and a rated ambient range of -20 to 120 F. The stainless steel unit measures 27.94 x 29.5 x 38.0 inches and weighs 69 lbs; coated coils are available for salt spray environments.

• Vertical discharge, air-cooled remote condenser compatible with IT1500N and IT1900N ice machines
• Electrical: 208/230 V, single-phase, 60 Hz; operating range -20 to 120 F; refrigerant R404A
• Stainless steel construction, dimensions 27.94 x 29.5 x 38.0 inches, weight 69 lbs; AHRI and UL certified

Product Highlights

Vertical-discharge remote condenser for IT1500N/IT1900N; 208/230 V single-phase; operates -20 to 120 F; stainless steel, 27.94 x 29.5 x 38.0 in; AHRI and UL certified.

Product Information

Standard Information

• Brand: MANITOWOC
• Manufacturer Part Number: JCT1500-261

Technical Specifications

• Brand: Manitowoc
• Model Number: JCT1500-261
• Manufacturer Part Number: JCT1500-261
• Type: Remote condenser (vertical discharge)
• Compatibility: Compatible with Manitowoc IT1500N and IT1900N ice machines
• Cooling Type: Air-cooled
• Discharge Type: Vertical discharge
• Voltage: 208-230 V
• Phase: Single-phase
• Frequency: 60 Hz
• Amps: 1 A
• Refrigerant: R404A
• Operating Temperature Range: -20 to 120 F (-29 to 49 C)
• Dimensions (L x W x H): 27.94 x 29.5 x 38.0 inches
• Weight: 69 lbs
• Material: Stainless steel
• Bottom Clearance: Up to 20 inches
• Coated Coils Option: Available for salt spray environments
• Certifications: AHRI, UL, CE
• Notes: Remote condenser for use with remote tubing line kit; components and line sets referenced in some documentation as pre-charged with refrigerant and quick-connect equipped
