Manitowoc Ice 000014062 Dump Valve 120V 10W (Each) Replacement 74017-18

Product Description

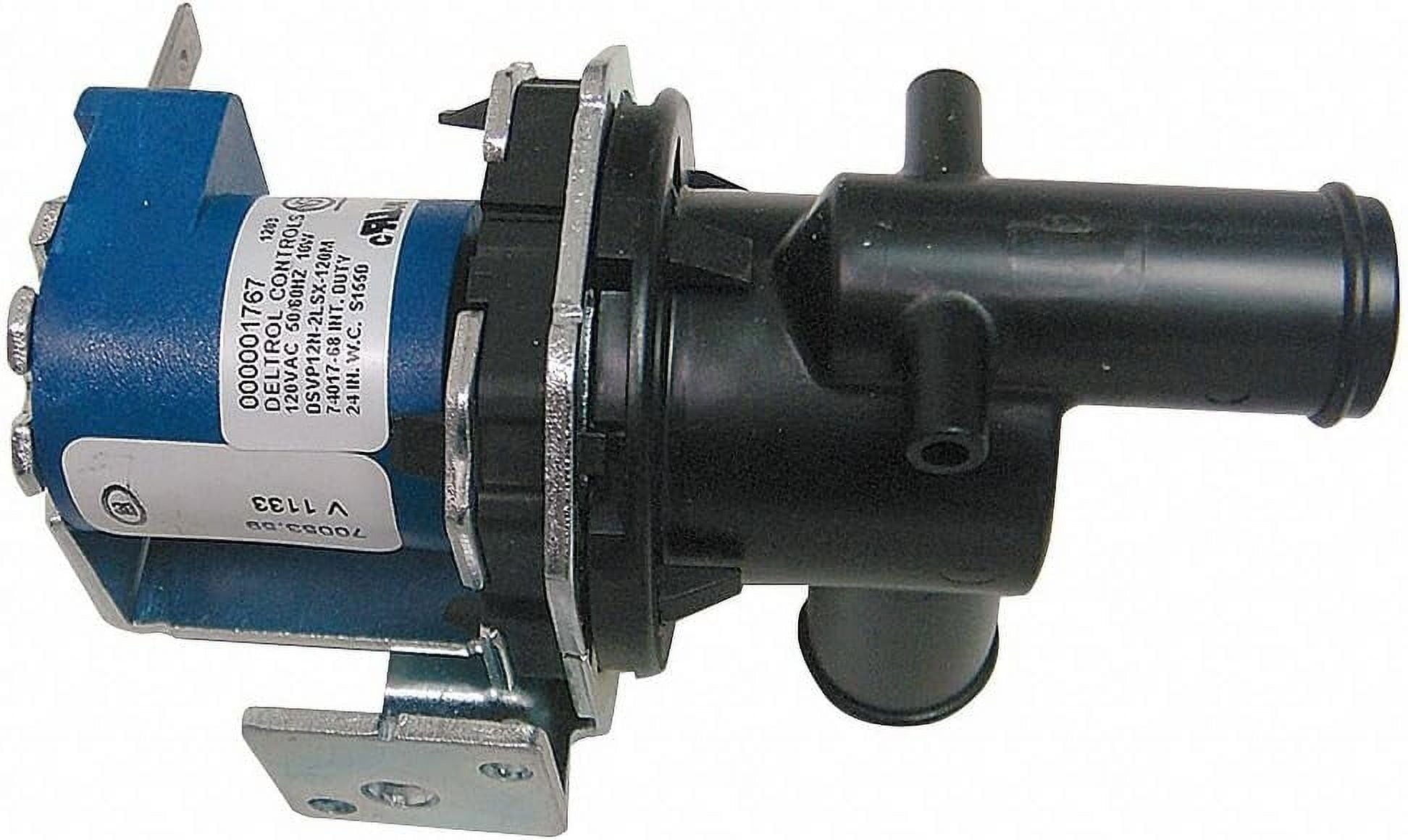

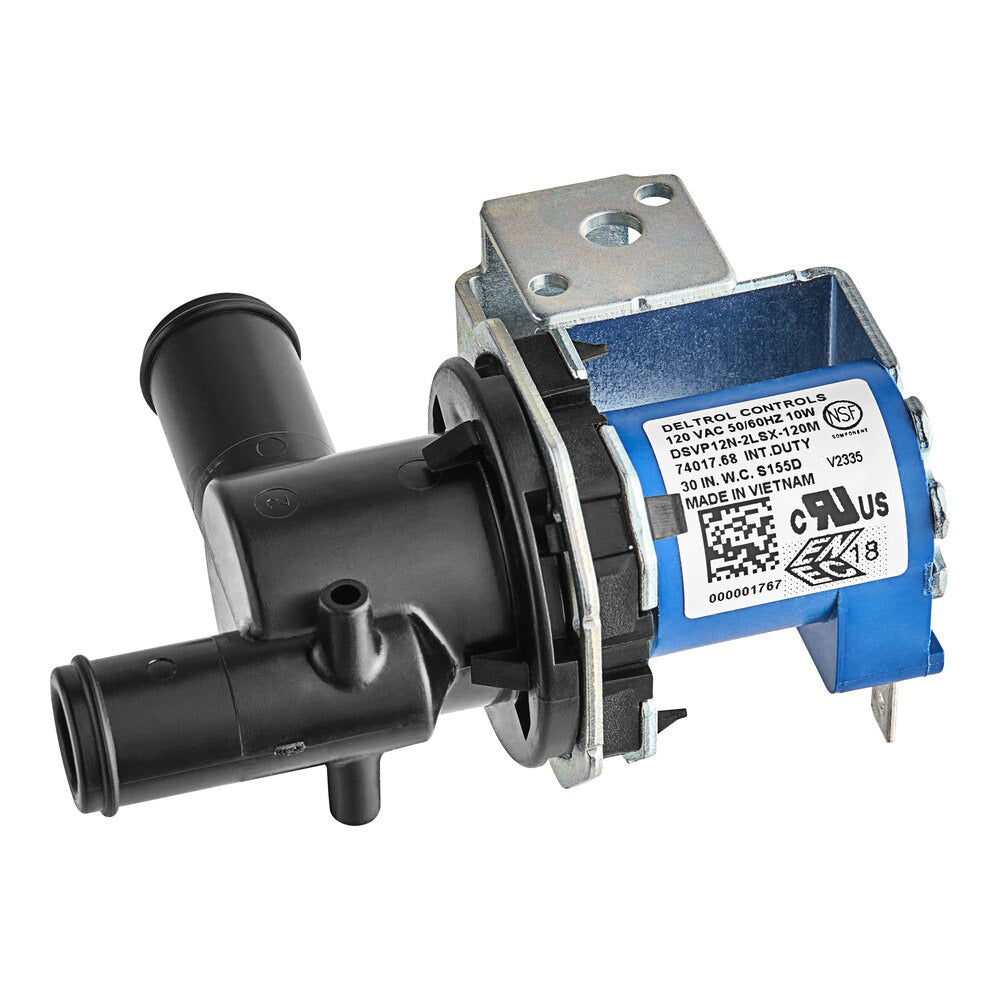

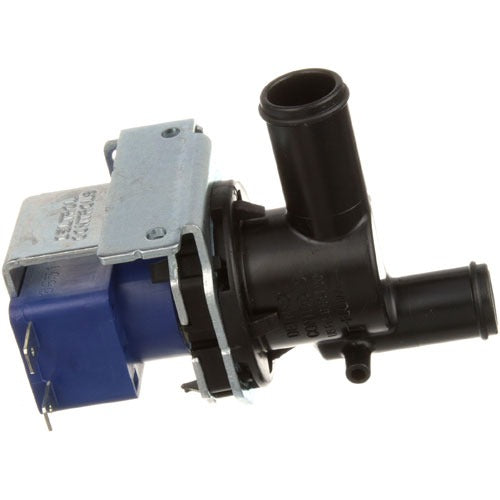

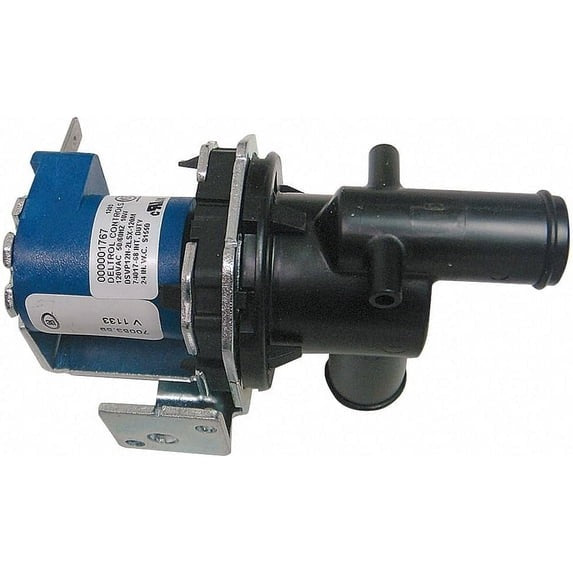

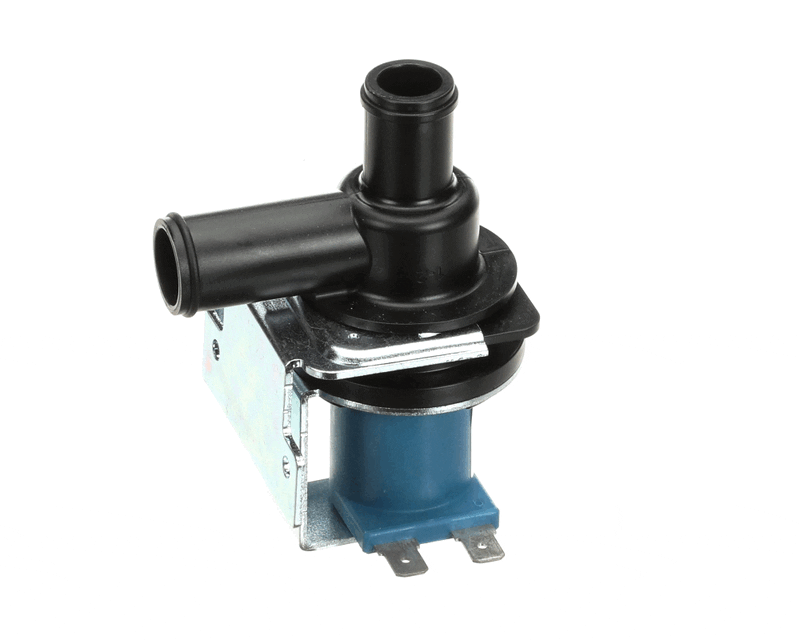

Manitowoc Ice 000014062 is a dump valve that controls and releases excess water from commercial ice machines during harvest and cleaning cycles. The electrically actuated solenoid valve operates at 120V 50/60Hz with a 10 Watt coil and includes a pre-installed bracket for installation. Connection sizes include 11/16" OD x 9/16" OD and 0.22" OD x 0.22" OD; typical dimensions are approximately 2.5 in x 4 in x 2.5 in and weight about 0.45 lbs.

• Electrically actuated solenoid dump valve, 120V 50/60Hz, 10 Watts
• Connection sizes: 11/16" OD x 9/16" OD and 0.22" OD x 0.22" OD; bracket pre-installed
• Designed for commercial ice machine water discharge during harvest and cleaning cycles; dimensions ~2.5 in x 4 in x 2.5 in; weight ~0.45 lbs

Product Highlights

Solenoid-operated dump valve for controlled water discharge in commercial Manitowoc ice machines; 120V, 10W, pre-installed bracket.

Product Information

Standard Information

• Brand: MANITOWOC ICE
• Manufacturer Part Number: 000014062
• Country of Origin: United States
