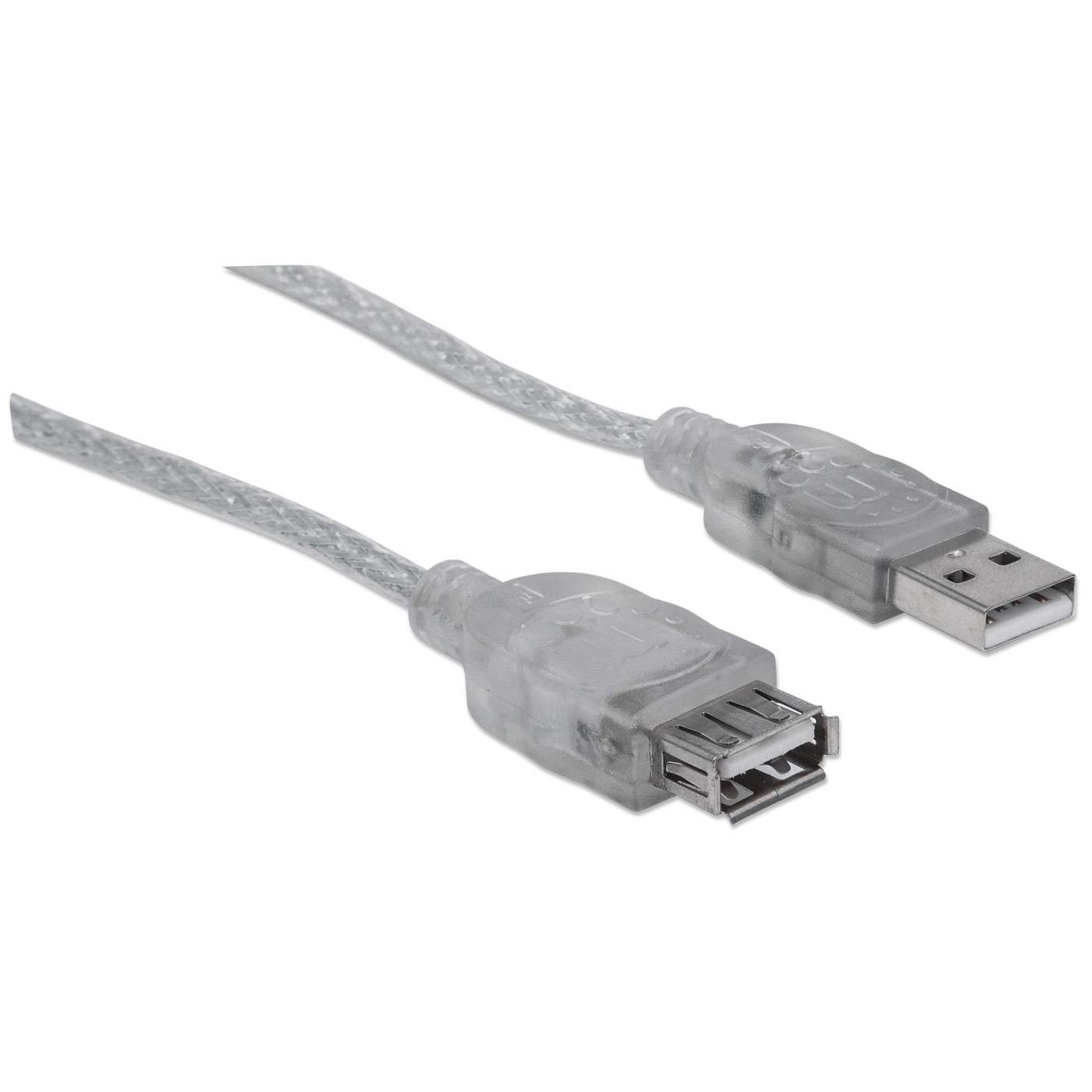

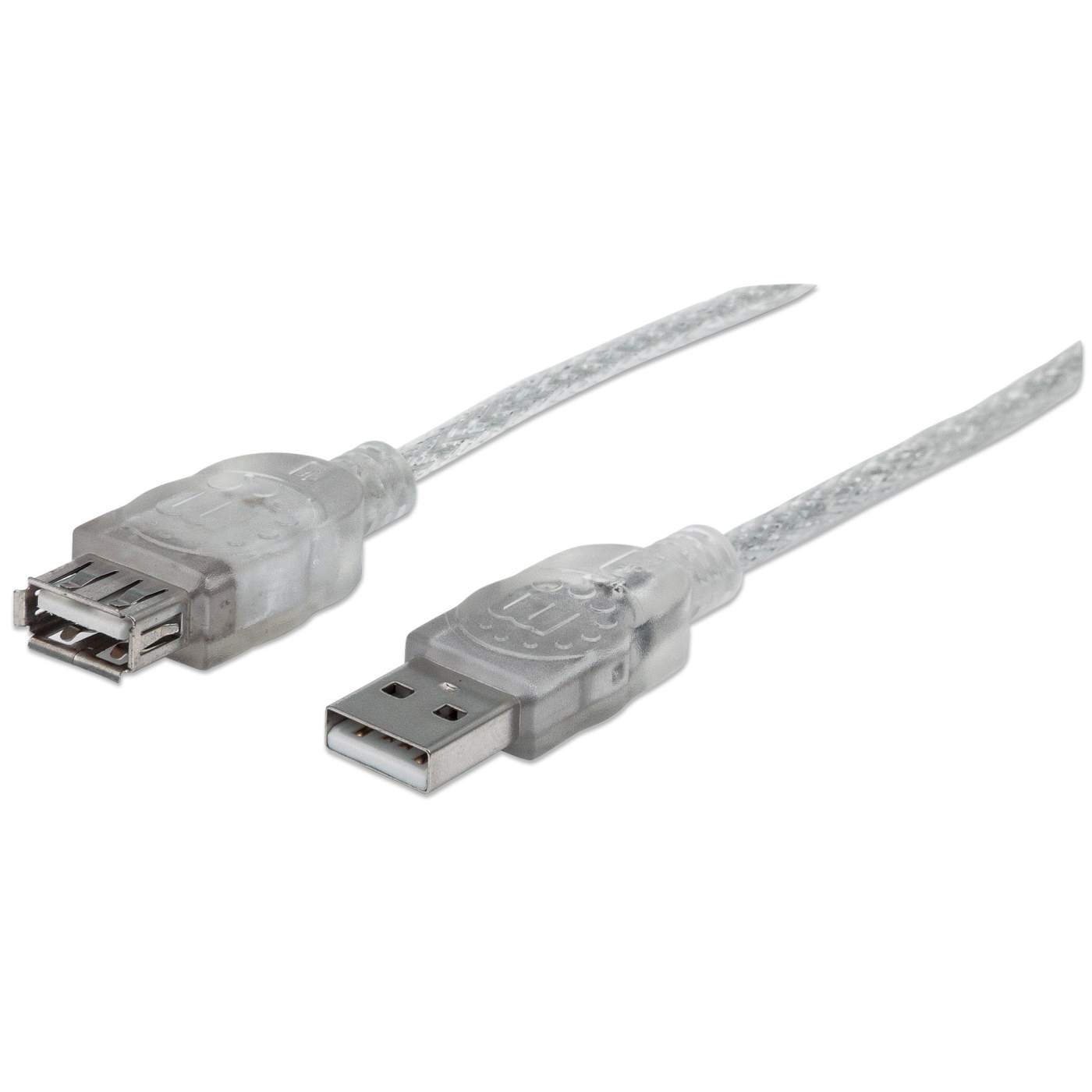

Manhattan Products 340496 Hi-Speed USB Extension Cable 3 m (10 ft.)

Product Description

The MANHATTAN PRODUCTS 340496 Hi-Speed USB 2.0 Extension Cable lengthens connections between computers and USB-powered peripherals. It is constructed of quality materials that support data transfer rates up to 480 Mbps. Full foil and braided shielding, gold-plated contacts and molded boots with strain relief help assure maximum conductivity.

• USB Standard-A male to USB Standard-A female
• Extends a USB cable to a maximum of 5 m (16 ft.)
• Speeds of up to 480 Mbps

Product Highlights

This shielded USB 2.0 extension cable supports speeds up to 480 Mbps and extends a USB connection up to 5 m (16 ft.).

Product Information

Standard Information

• Brand: MANHATTAN PRODUCTS
• Manufacturer Part Number: 340496
• Country of Origin: CHINA

Technical Specifications

• Standards and Certifications: UL 2725, USB 2.0

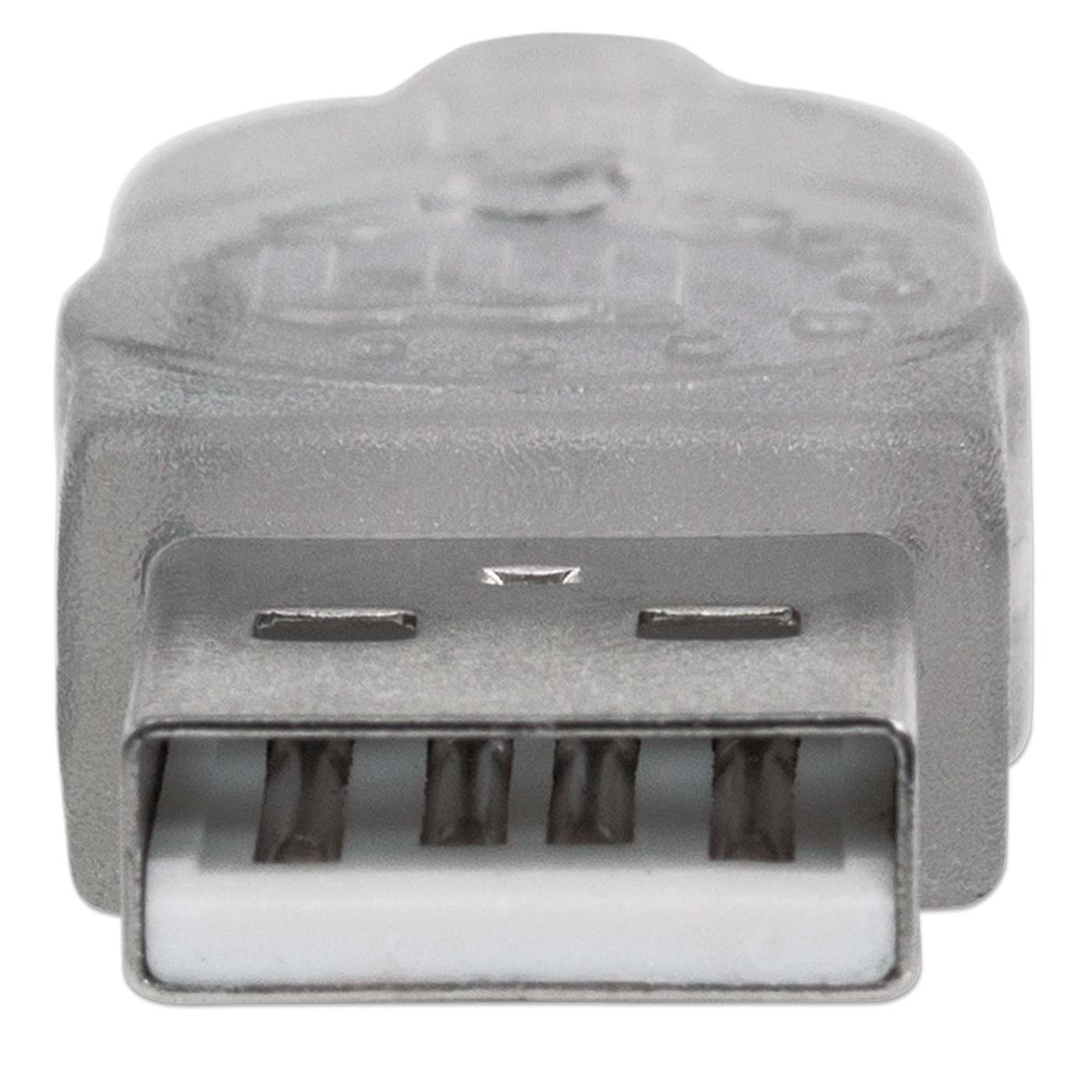

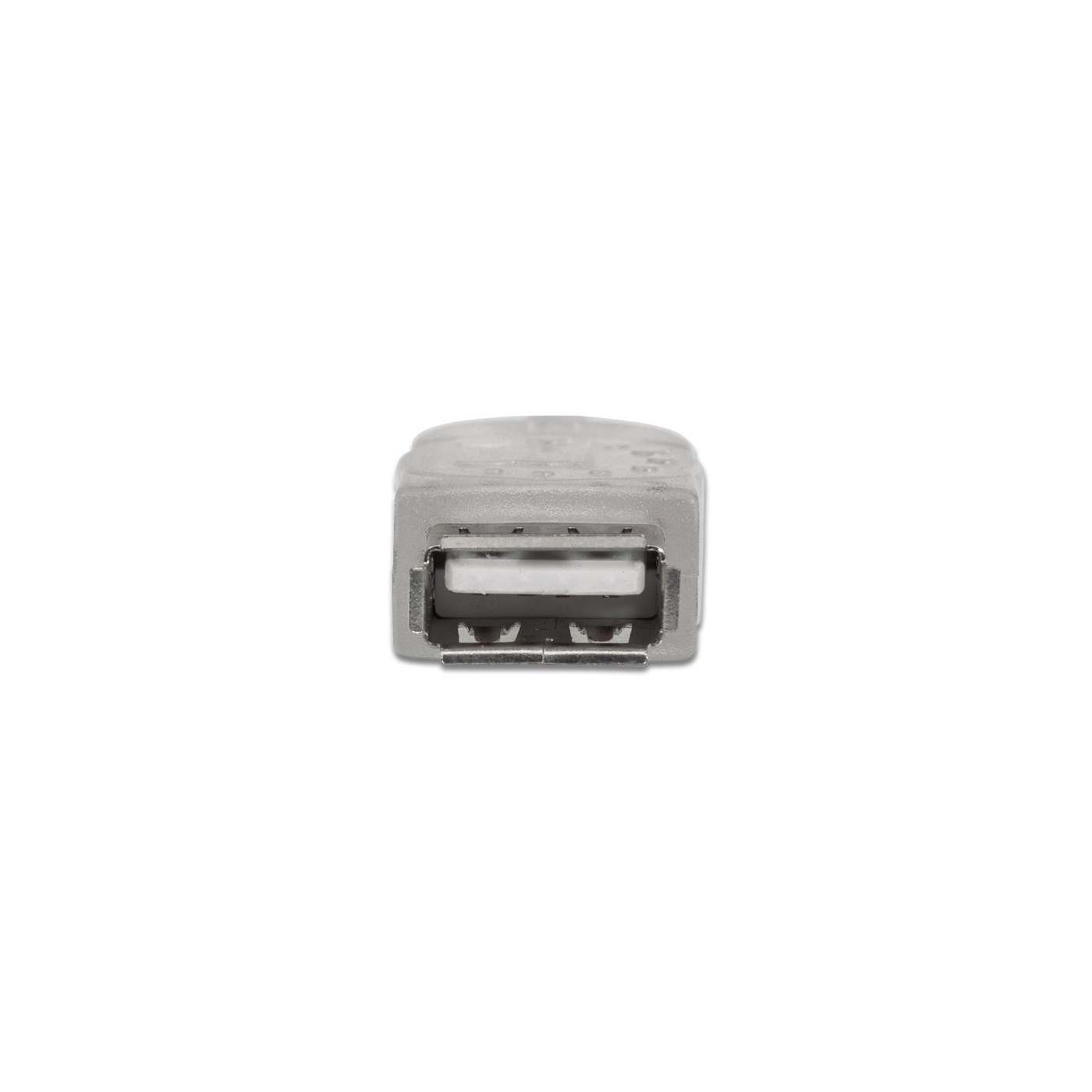

• Connectors: (1) USB 2.0 Standard-A male, (1) USB 2.0 Standard-A female
• Cable: 28 AWG conductors, Shielded
• Package Contents: Hi-Speed USB Extension Cable
• Cable Type: USB Extension Cable
• Cable Technology: Shielded
• Length: 10 feet
• Left Connector Gender: Male
• Right Connector Gender: Female
• Left Connector Type: USB 2.0
• Right Connector Type: USB 2.0
• USB Standard: USB 2.0
• Data Transfer Rate: 480 Mbps
• Cable Length: 3 m (10 ft.)
• Withstanding voltage: 300 V DC 10 ms
• Insulation resistance: 5 MOhms
• Contact resistance: 10 Ohms
• Thermal plastic casing: Yes
• Gold plated: Yes
• Molded PVC boot: Yes
• Wire Gauge: 28 AWG
