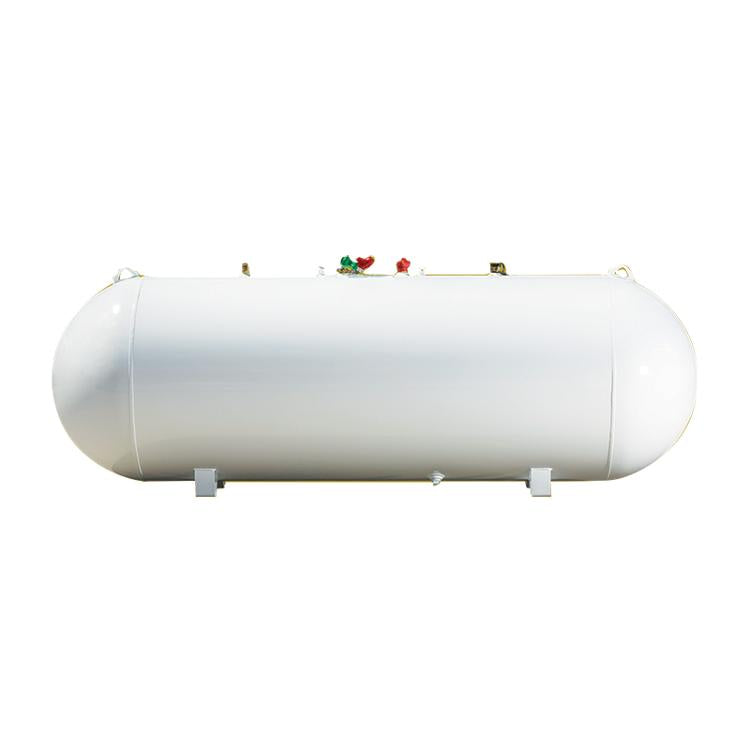

Manchester Tank 68268-P21371 Propane Tank 120 Gallon

Product Description

The MANCHESTER TANK 68268-P21371 is a 120-gallon horizontal aboveground propane tank designed for residential, commercial, and industrial fuel storage applications. Built and tested to ASME Section VIII Division I Code requirements, this tank arrives vacuum pre-purged and ready for filling. It is fitted with Rego valves and a Rochester liquid level gauge as standard equipment. The container is pressure rated at 250 psi at 400 degrees F. Stainless steel data plates are affixed for durable identification. Installation is performed by licensed propane service technicians or qualified mechanical contractors working under applicable fuel gas codes.

This tank is suited for a broad range of applications including residential home heating, commercial cooking, construction site heating, crop drying, dry cleaning operations, and temporary heat supply. The horizontal aboveground configuration is common in rural and semi-rural settings where underground installation is impractical. The white exterior finish helps reflect solar heat to reduce tank surface temperature. The 120-gallon capacity positions this unit for moderate-demand residential or light commercial use where frequent cylinder exchange is not practical.

Key Features

• ASME Section VIII Division I Code compliant construction with x-rayed welds and pressure testing
• Registered with the National Board of Boiler and Pressure Vessel Inspectors
• Complies with NFPA 58 and conforms to Railroad Commission of Texas specifications
• Fitted with Rego valves and Rochester liquid level gauge from the factory
• Vacuum pre-purged and ready for filling upon delivery
• Stainless steel data plates and 54 liquid level outage valve orifice
• Made in the U.S.A.

Compatibility

Designed as an aboveground horizontal propane storage tank for residential home heating systems and commercial or industrial propane fuel applications including heating, cooking, construction, and agricultural use.

Installation Notes

Installation must be performed by a licensed propane technician or qualified mechanical contractor in accordance with NFPA 58 and all applicable local fuel gas codes. Confirm that the installation site meets required setback distances from structures, property lines, and ignition sources before placing the tank. All connections and valve fittings must be leak-tested after installation and before placing the system into service. Never weld, modify, or apply heat to the tank after factory completion.

Technical Specifications

• Capacity: 120 gallons
• Orientation: Horizontal
• Installation Type: Aboveground
• Working Pressure: 250 psi at 400 degrees F
• Color: White
• Valves: Rego valves (factory fitted)
• Gauge: Rochester liquid level gauge (factory fitted)
• Outage Valve Orifice: 54 liquid level
• Data Plate Material: Stainless steel
• Code Compliance: ASME Section VIII Division I, NFPA 58, National Board of Boiler and Pressure Vessel Inspectors
• Country of Origin: U.S.A.

Standard Information

• Brand: MANCHESTER TANK
• Manufacturer Part Number: 68268-P21371
