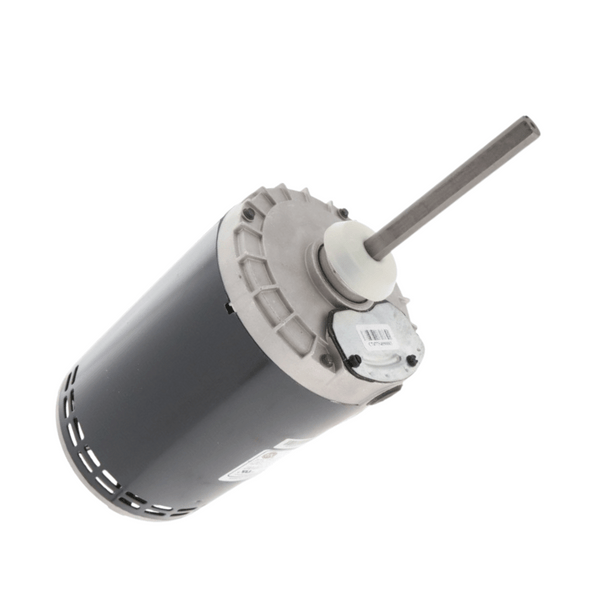

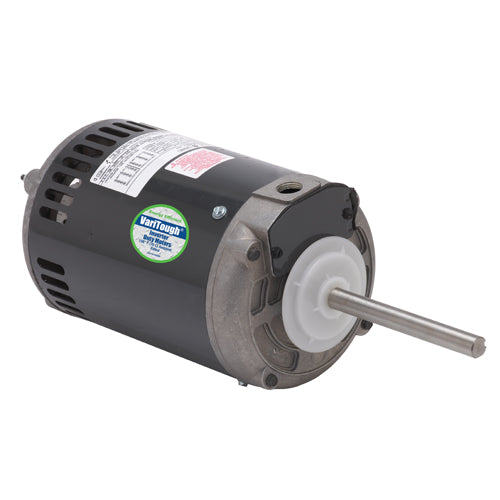

MAMMOTH 9922033431 Condenser Fan Motor 1.5 HP 208/230/460 Voltage

Product Description

The MAMMOTH 9922033431 is a three-phase condenser fan motor with a power output of 1.5 HP. This motor operates at voltages of 208, 230, or 460 volts and is designed for applications that require robust cooling capacity. It features a single shaft with reversible rotation, making it versatile and efficient for various setups.

• Condenser fan motor suitable for multiple applications.
• Voltage compatibility: 208/230/460 volts.
• Reversible rotation allows for flexible installation.

Product Highlights

This motor is optimized for effective performance in HVAC systems and similar environments where cooling efficiency is vital.

Product Information

Standard Information

• Product Type: Condenser Fan Motor
• Frame Type: 56YZ

Technical Specifications

• Rotation: Reversible
• Shaft Type: Single
• Speeds: 1
• Voltage: 208/230/460
• Horsepower: 1.5 HP
• Motor Diameter: 6.5 inches
• Amps: 5.3-5.3/2.6
• Phase: Three Phase
• Speed: 1140 RPM
• Speed Type: 1-speed
• Overload Protection: Thermostat
• Material: Rolled Steel
