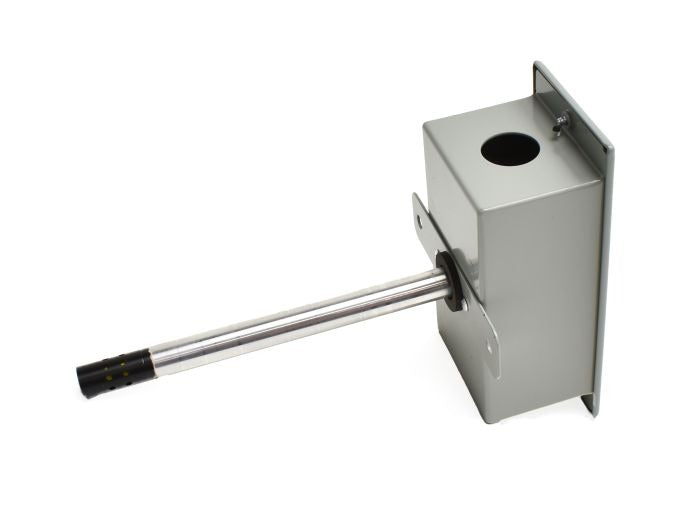

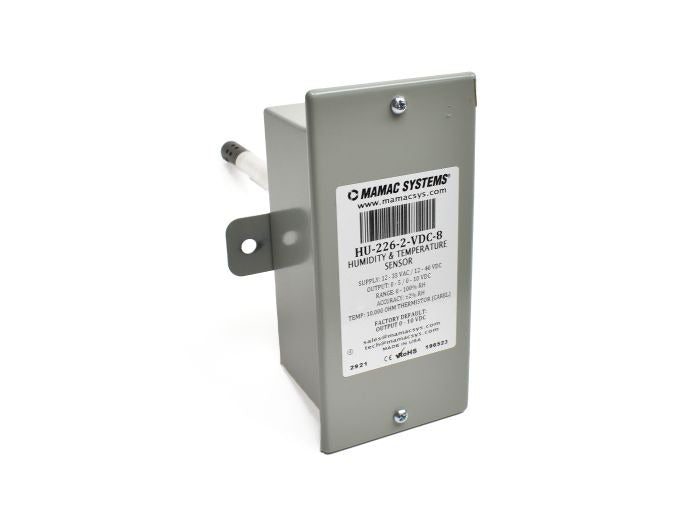

Mamac Systems HU-226-2-VDC-8 Duct Humidity/Temp Sensor 0-5/0-10 VDC (12-35 VAC Input)

Product Description

Mamac Systems HU-226-2-VDC-8 is a HU-226 Series duct humidity and temperature sensor calibrated to ±2% (some units ±3%) humidity accuracy. It uses an ultra-fast cross-linked bulk polymer capacitive humidity element with a hydrophobic and oleophobic ePTFE filter to resist condensation and contaminants, is temperature compensated from -30°F to 130°F (-35°C to 55°C), and provides field-selectable 0-5 VDC or 0-10 VDC humidity outputs with a 10K NTC thermistor temperature sensor.

• Field-selectable analog humidity outputs: 0-5 VDC or 0-10 VDC; 10K ohm NTC thermistor for temperature.
• Cross-linked bulk polymer capacitive sensor with ePTFE hydrophobic/oleophobic filter; resistant to condensing humidity and contaminants.
• Rugged NEMA-4 (IP-65) steel enclosure with external mounting bracket; temperature compensated -30°F to 130°F; NIST-traceable calibration.

Product Highlights

Duct-mounted humidity and temperature sensor with field-selectable analog outputs, ePTFE filter, NIST-traceable calibration, and NEMA-4 enclosure.

Product Information

Standard Information

• Brand: MAMAC SYSTEMS
• Manufacturer Part Number: HU-226-2-VDC-8
