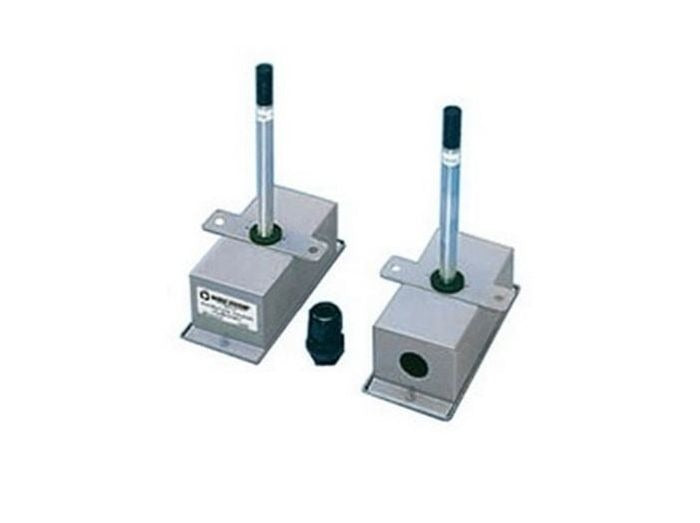

Mamac Systems HU-226-2-MA-3 Duct Humidity and Temperature Transmitter 24 Vac/Vdc (Duct Mount)

Product Description

Mamac Systems HU-226-2-MA-3 is a duct-mounted humidity and temperature transmitter that measures 0% to 100% relative humidity with ±2% accuracy and provides a 4-20 mA humidity output plus a resistance output for temperature. It uses a 1000 ohm RTD (385) temperature sensor, operates on 24 Vac/Vdc power, and is designed for HVAC and building automation duct applications. The sensing element is capacitive with a hydrophobic ePTFE filter and the unit is temperature compensated for -30 F to +130 F.

• Humidity measurement 0% to 100% RH with ±2% accuracy and 4-20 mA output
• Temperature sensing via 1000 ohm RTD (385) with resistance output; temperature compensated -30 F to +130 F
• Duct mounting for HVAC/BAS with hydrophobic ePTFE filter and NEMA-4 (IP-65) steel enclosure

Product Highlights

Duct-mounted humidity/temperature transmitter with 4-20 mA humidity output and 1k ohm RTD temperature output

Product Information

Standard Information

• Brand: MAMAC SYSTEMS
• Manufacturer Part Number: HU-226-2-MA-3

Technical Specifications

• Brand: Mamac Systems
• MPN: HU-226-2-MA-3
• Series: HU-226 Series
• Mounting Type: Duct
• Humidity Range: 0% to 100% RH
• Accuracy: ±2%
• Output: 4-20 mA (humidity); resistance output (temperature)
• Temperature Sensor: 1000 ohm RTD (385), platinum
• Input Voltage: 24 Vac/Vdc
• Operating Temperature: -30 F to +130 F
• Enclosure Rating: NEMA-4 (IP-65) steel enclosure
• Filter: Hydrophobic and oleophobic ePTFE filter
• Measuring Principle: Capacitive humidity sensor (cross-linked bulk polymer)
• Approvals: CE
• Weight: 1 lb
