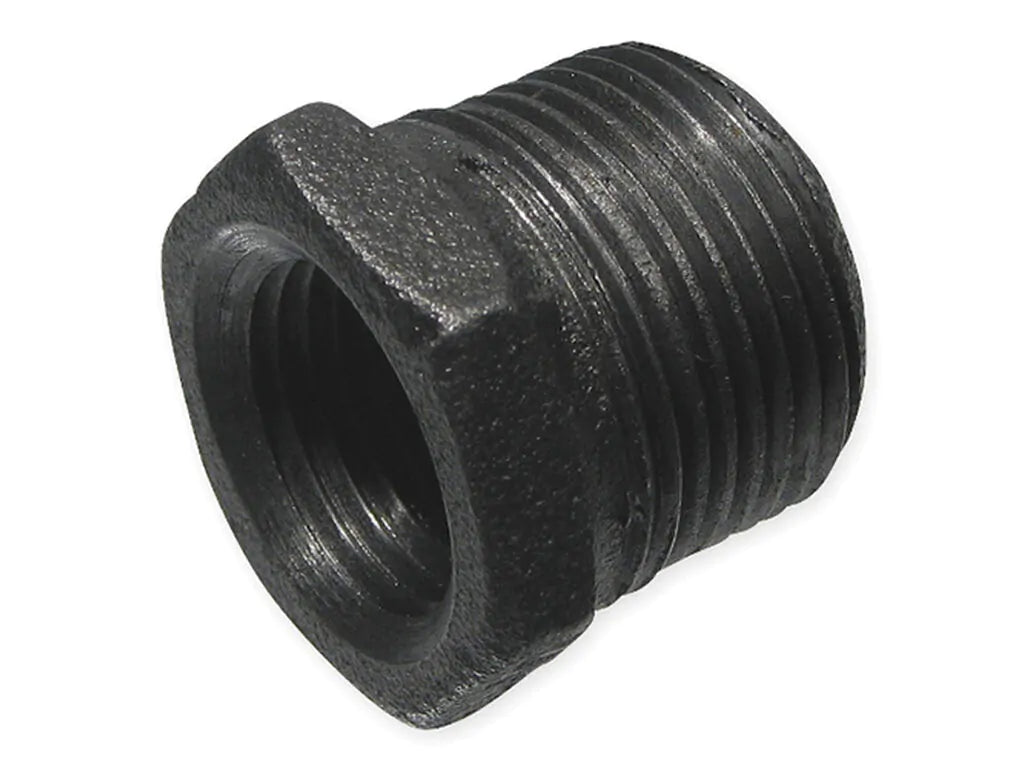

MALLEABLE 521-983 Hex Head Pipe Bushing 2 x 1/2 in NPT

Product Description

The MALLEABLE 521-983 is a hex head pipe bushing crafted from malleable iron. This fitting connects a 2-inch NPT male thread to a 1/2-inch NPT female thread. It is suitable for various applications including oil, gas, and fluid transport.

• Constructed from durable malleable iron.
• Features a black oxide finish for corrosion resistance.
• Pressure rating of 300 psi and pressure class of 150 lb.

Product Highlights

This product is designed for reliability in fluid handling tasks.

Product Information

Standard Information

• Manufacturer Part Number: 521-983
• Fitting Type: Bushing

Technical Specifications

• Nominal Size: 2 x 1/2 inches
• End Connection: Male Threaded x Female Threaded
• Male Thread Size: 2 inches
• Female Thread Size: 1/2 inches
• Material: Malleable Iron
• Finish: Black Oxide
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Temperature Rating: -20 to 150 degrees F
• Type: Hex Head
• Material Specification: ASTM A197
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3/B16.14, ASTM A153
• Weight: 0.540 pounds
• Height: 1.4 inches
• Length: 2.3 inches
• Width: 2.3 inches
