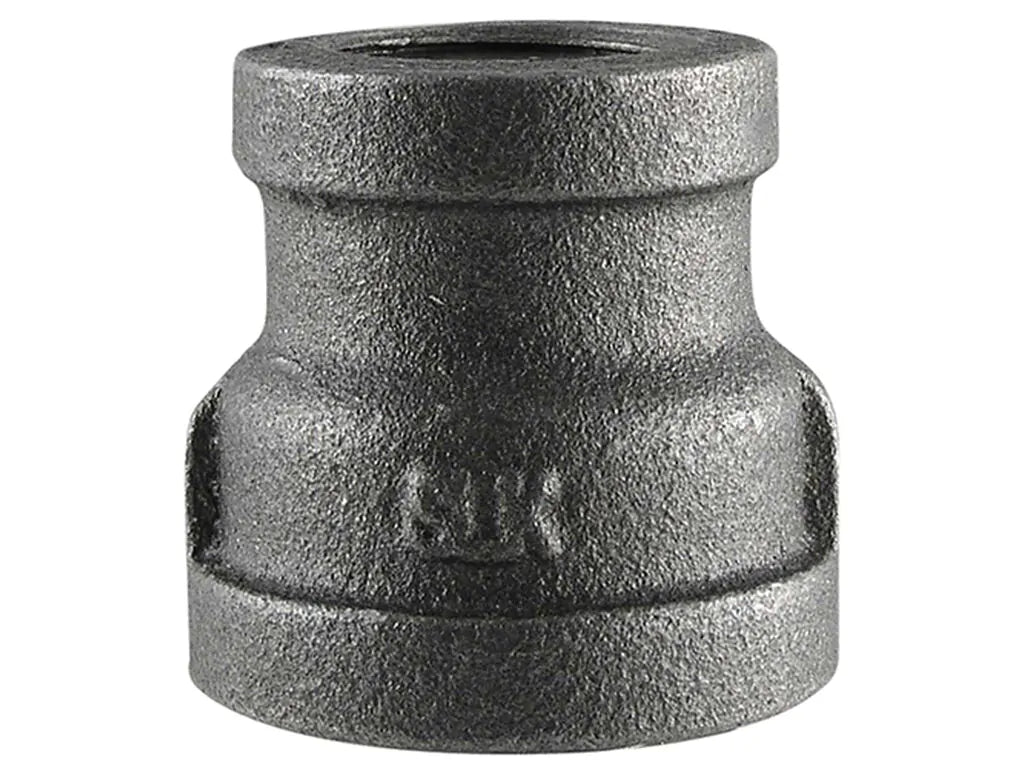

MALLEABLE 521-396 Black Iron Reducing Coupling 2-1/2 x 1-1/4 FIP

Product Description

The MALLEABLE 521-396 is a black iron reducing coupling used to connect two female-ended pipes with sizes two and one-fourth inches and one and one-fourth inches. It is designed for various applications, including lubricant, oil, grease, and liquefied petroleum gas. With a capacity to withstand pressures up to two hundred thirty-two PSI and temperatures ranging from negative twenty degrees Fahrenheit to three hundred forty-seven degrees Fahrenheit, this fitting is reliable and durable.

• Constructed from black iron.
• Connects pipes of different diameters: two and one-fourth inches and one and one-fourth inches.
• Features female threaded ends.

Product Highlights

This reducing coupling is essential for plumbing systems requiring different pipe sizes, ensuring secure and leak-free connections.

Product Information

Standard Information

• Manufacturer Part Number: 521-396
• Fitting Type: Reducing Coupling

Technical Specifications

• End Style: Female x Female
• Material: Black Iron
• Inlet Diameter: 2-1/2 inches
• Outlet Diameter: 1-1/4 inches
• Product Length: 3.60 inches
• Product Height: 3.25 inches
• Product Width: 3.60 inches
• Product Weight: 2.2046 lbs
• Working Pressure: 232 PSI
• Maximum Pressure: 300 PSI
• Minimum Temperature: -20°F
• Working Temperature: 77°F
• Maximum Temperature: 347°F
• Standards: NSF/ANSI 372, NSF/ANSI 61, ASME B16.3, FM 1920
• Finish: Black
