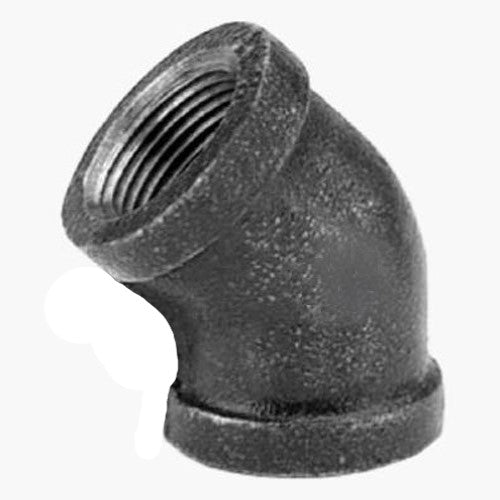

Malleable 520-210 45 Degree Pipe Elbow

Product Description

The Malleable 520-210 45-degree pipe elbow is suitable for oil and gas fluid applications. Made from malleable iron with a black oxide finish, this fitting has a nominal size of three inches and features an NPT end style. It operates well in systems categorized under a pressure class of 150 lb and has a pressure rating of 300 psi. This product meets ANSI/ASME B1.20.1, ASME B16.3, and ASTM A153 standards.

• Fitting type: 45-degree elbow
• Constructed from malleable iron with black oxide finish
• Complies with ANSI/ASME and ASTM standards

Product Highlights

This pipe elbow is designed to connect two pipes at a 45-degree angle, making it ideal for fluid transportation in oil and gas applications.

Product Information

Standard Information

• Brand: Malleable
• MPN: 520-210

Technical Specifications

• Application: Oil and Gas Fluid Applications
• End Style: NPT
• Finish: Black Oxide
• Fitting/Connector Type: 45 deg Elbow
• Material: Malleable Iron
• Mfg Standards/Approvals: ANSI/ASME B1.20.1, ASME B16.3, ASTM A153
• Nominal Size: 3 in
• Pressure Class: 150 lb
• Pressure Rating: 300 psi
• Series: 520
• Temperature Rating: -20 to 150 deg F
