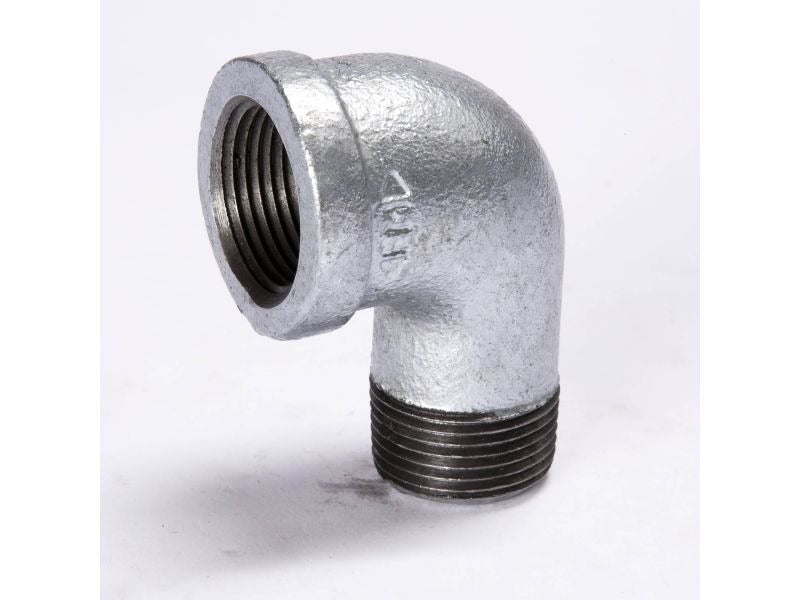

Malleable 510-310 3 in Mip X Fip 90 Degree Galvanized Street Elbow

Product Description

The MALLEABLE 510-310 is a 3-inch galvanized malleable iron 90-degree street elbow designed for threaded pipe systems in commercial and industrial piping applications. The fitting connects a male iron pipe (MIP) outlet to a female iron pipe (FIP) inlet, allowing directional changes in tight spaces where standard elbows cannot be used. Constructed from malleable iron with a zinc galvanized coating, it resists internal rust and corrosion across a wide service temperature range of -20 degrees F to 347 degrees F. Rated to 300 psi maximum pressure, it is suitable for a broad range of fluid and gas transport systems. Threaded ends comply with ASME B16.3 and ANSI/ASME B1.20.1 standards.

This street elbow is used in residential, commercial, and light industrial piping systems. Typical applications include potable water distribution, compressed air lines, fire sprinkler systems, refrigeration piping, and fuel lines handling gasoline, diesel, or alcohol. The 90-degree configuration makes it well suited for routing pipe along flat surfaces such as walls or ceilings where a close-quarter turn is required. Licensed plumbers and pipefitters install this fitting as part of threaded iron pipe systems in both new construction and retrofit service work.

Key Features

• Malleable iron construction with zinc galvanized coating for internal and external corrosion resistance
• Rated to 300 psi maximum pressure and 347 degrees F maximum temperature
• 150-lb class fitting suitable for a wide range of fluid and gas applications
• Threaded ends comply with ASME B16.3 and ANSI/ASME B1.20.1 for standard NPT thread compatibility
• Certified to NSF/ANSI 61 and NSF/ANSI 372 for use in potable water systems
• FM 1920 listed, supporting use in fire protection piping systems

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 3-inch threaded malleable iron pipe systems using standard NPT connections in potable water, compressed air, refrigeration, sprinkler, and fuel service lines.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off and depressurize the pipe system fully before removing or installing any fitting. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly; do not overtighten, as malleable iron threads can be damaged by excessive torque. Verify that the service fluid and operating conditions are within the rated pressure and temperature limits before returning the system to service.

Technical Specifications

• Inlet Diameter: 3 inches
• Inlet Connection: FIP
• Outlet Diameter: 3 inches
• Outlet Connection: MIP
• Angle: 90 degrees
• Working Pressure: 232 psi
• Maximum Pressure: 300 psi
• Minimum Temperature: -20 degrees F
• Working Temperature: 77 degrees F
• Maximum Temperature: 347 degrees F
• Product Length: 4.37 inches
• Product Height: 5.04 inches
• Product Width: 7.05 inches
• Product Weight: 5.36 pounds
• Material: Malleable Iron with Zinc Galvanized Coating
• Standards: NSF/ANSI 61, NSF/ANSI 372, ASME B16.3, FM 1920, ANSI/ASME B1.20.1
• Pressure Class: 150 lb
• Warranty: 1-year limited warranty

Standard Information

• Brand: MALLEABLE
• Manufacturer Part Number: 510-310
