Product Description

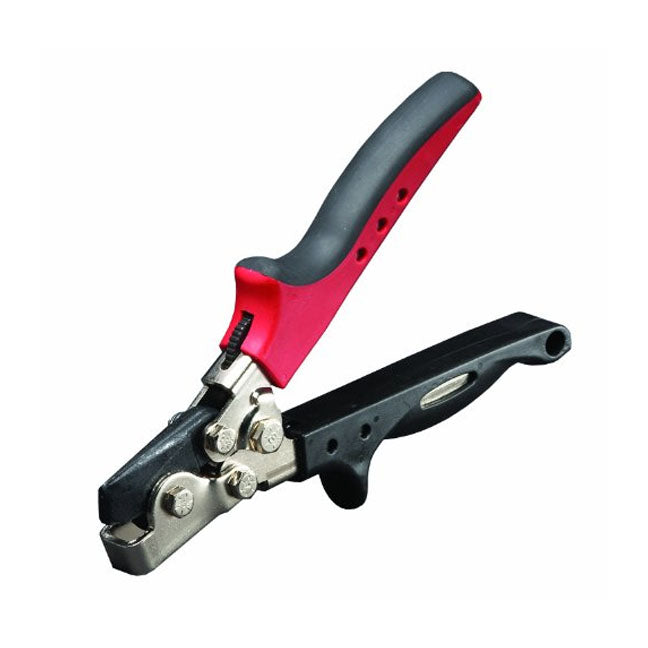

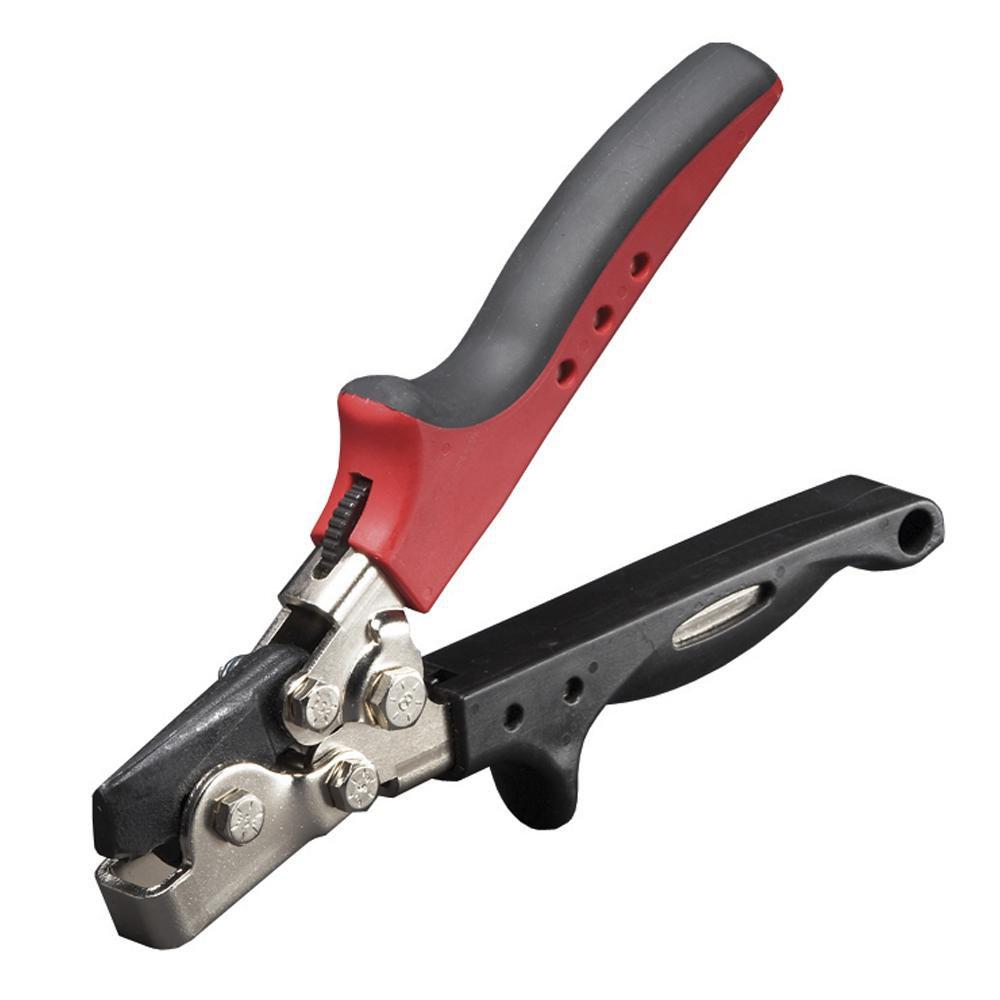

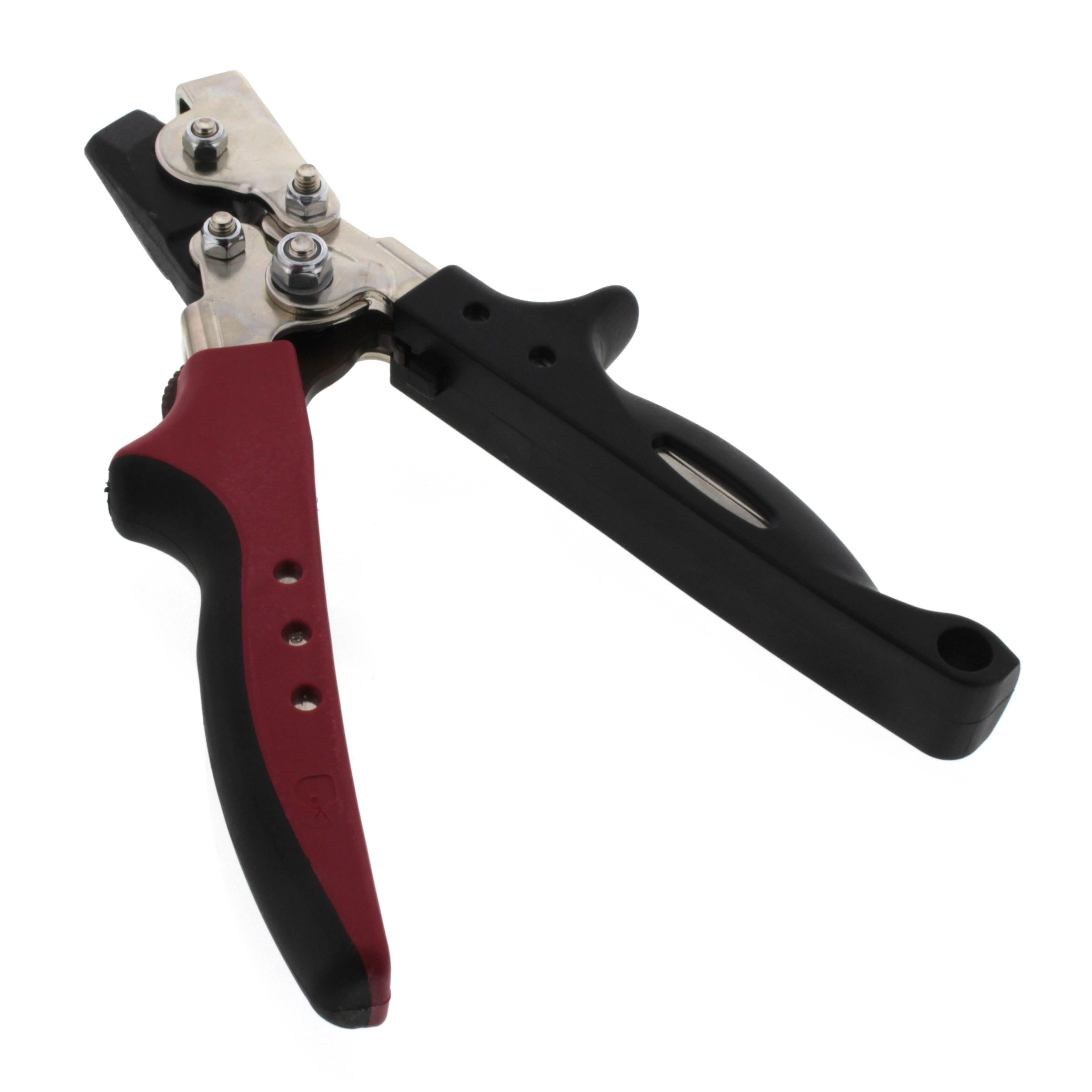

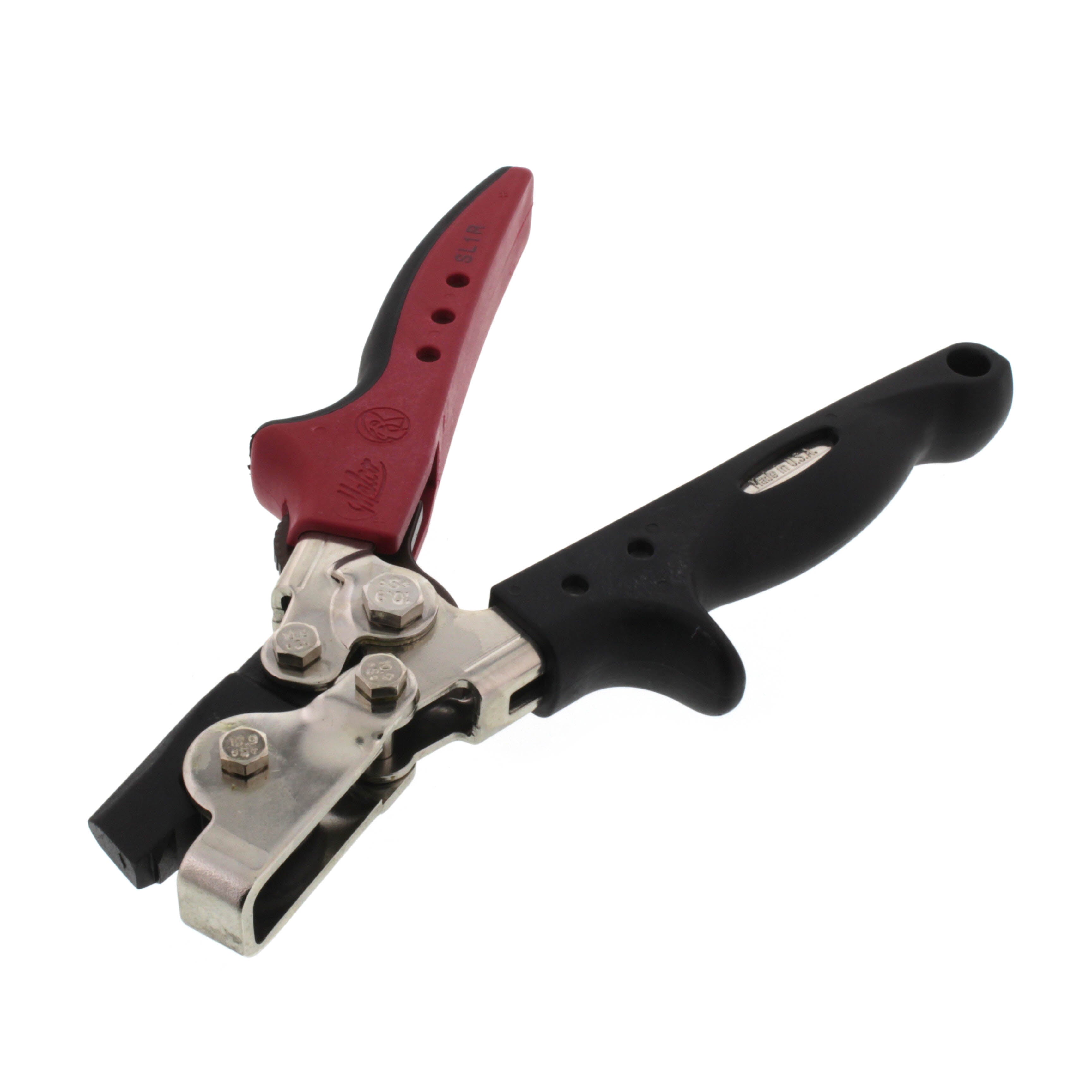

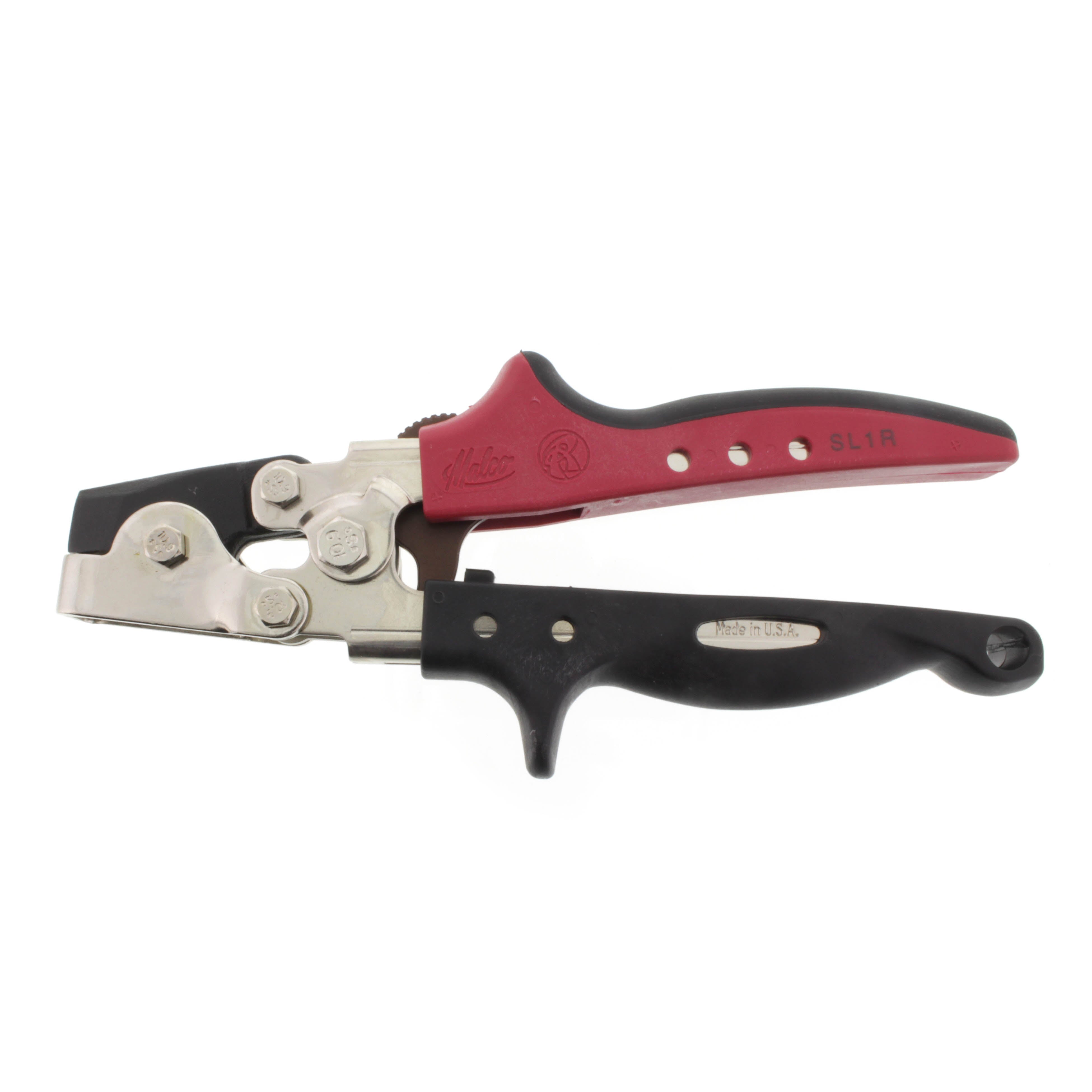

The Malco SL1R Snap Lock Punch raises a louver-shaped projection along the edge of sheet metal for creating corner connections. Metal pieces snap together and lock securely. It is suitable for working in galvanized steel up to 24 gauge. Features ergonomic Redline Handle technology and a rust-resistant nickel plate and black oxide finish.
- Creates locking tabs for resizing rectangular metal duct
- Punch impression spaced 3/8 in. (9.53 mm) from the metal edge
- 7:1 mechanical advantage of compound-leverage head to handle linkage
Product Highlights
This snap lock punch creates secure corner connections in sheet metal with its louver-shaped projection and ergonomic design.
Product Information
Standard Information
-
Brand: MALCO
-
Manufacturer Part Number: SL1R
-
Country of Origin: United States
Technical Specifications
-
Color: Steel, Red, Black
-
Style: Snap Lock Punch
-
Usage: Professional
-
Material: Metal
-
Hole Count: 1
-
Power Source: Hand Powered
-
Operation Mode: Manual
-
Handle Material: Vinyl
-
Number of Handles: 2
-
Batteries Included?: No
-
Batteries Required?: No
-
Applicable Materials: Sheet Metal and Galvanized Steel
-
Cutting Capacity: 24 ga Galvanized Steel
-
Length of Cut: 3/8 in
-
Blade Material: Alloy Steel
-
Overall Length: 8 in
-
Handle Type: Ergonomic Redline™ Hand
-
Finish: Nickel Plated/Black Oxide
-
Type: Louvered
-
Capacity: 0.035 Inch (Aluminum), 0.023 Inch (Copper), 0.018 Inch (26 Gauge Stainless Steel), 0.028 Inch (24 Gauge Galvanized Steel), 0.024 Inch (24 Gauge Mild Steel)
-
Size: 8 Inch Length
-
Throat Depth: 3/8 Inch
-
Variable Leverage Ratio: 10.8 to 1.0/11.7 to 1.0
-
Brand: MALCO
-
MPN: SL1R
-
Manufacturer: Malco
-
Product Group: Tools
-
Model / MPN: SL1R
-
Number of Items: 1.0
-
Item: Snap Lock Punch
-
Series: Redline
-
Features: Create Your Own Locking Tabs for Sheet Metal Duct Corners; Compound Leverage; Ergonomic Redline
-
Jaw Depth: 3/8 in
-
Jaw Width: 3/8 in
-
Punch Type: Sheet Metal Punch
-
Metal Gauge: 22 Mild/24 Galvanized/26 SS
-
Handle Color: Red/Black
-
Safety Latch: Yes
-
Cutting Width: 3/8 in
-
Handle Design: Soft-touch w/Nonslip Insert
-
Cutting Action: Punching
-
Cutting Length: 3/8 in
-
Frame Material: Steel
-
Number of Pieces: 1
-
Creates Hole Size: 3/8 in
-
Maximum Jaw Opening: 3/8 in
-
Maximum Material Thickness: Aluminum: 0.035 in, Copper: 0.023 in, Galvanized Steel: 0.028 in, Mild Steel: 0.024 in, Stainless Steel: 0.018 in
-
Country of Origin (subject to change): United States
-
Additional Information: Throat Depth 3/8 Inch; Variable Leverage Ratio 10.8 to 1.0/11.7 to 1.0; Finish Black Oxide
-
Brand Name: REDLINE
-
CATALOG NUMBER: SL1R
-
COMMODITY CODE DESCRIPTION Level 5: Ceiling Grid and Snap Lock Punches
-
Description: Snap Lock Punch; Type Louvered; Capacity 0.035 Inch (Aluminum), 0.023 Inch (Copper), 0.018 Inch (26 Gauge Stainless Steel), 0.028 Inch (24 Gauge Galvanized Steel), 0.024 Inch (24 Gauge Mild Steel); Material Alloy Steel Forging/Carbon Steel Shell (Jaw); Size 8 Inch Length; Throat Depth 3/8 Inch; Variable Leverage Ratio 10.8 to 1.0/11.7 to 1.0; Finish Black Oxide
-
Jaws: Alloy Steel Forging / Carbon Steel Shell
-
Tool Length: 8 in. (203 mm)
-
Capacities: Inches (mm) Aluminum: .035 (0.89)
-
Capacities: Inches (mm) Copper: .023 (0.58)
-
Capacities: Inches (mm) Stainless Steel 26 Gauge: .018 (0.46)
-
Capacities: Inches (mm) Galvanized Steel 24 Gauge: .028 (0.71)
-
Capacities: Inches (mm) Mild Steel 24 Gauge: .024 (0.61)
-
Throat Depth in. (mm): 3/8 (9.5)
