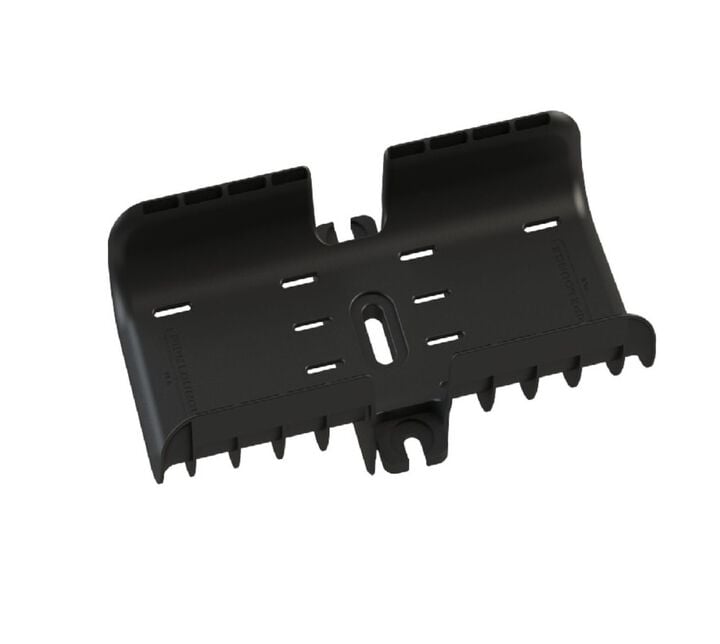

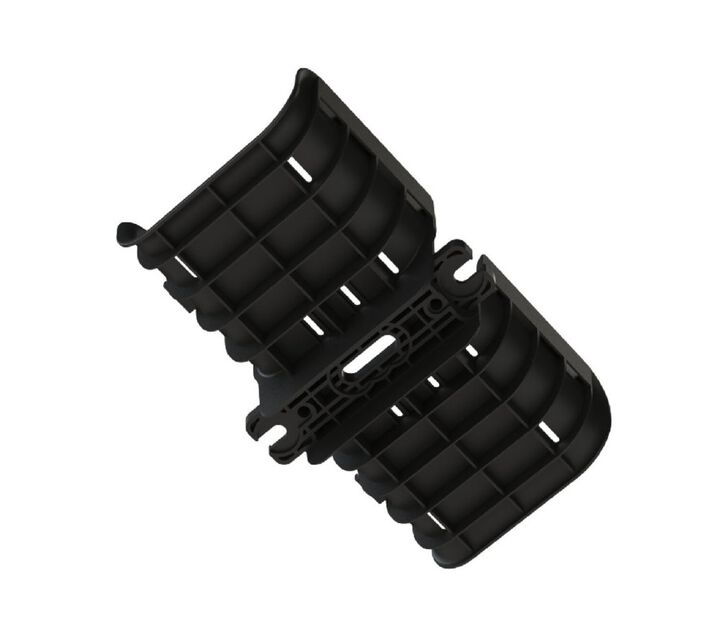

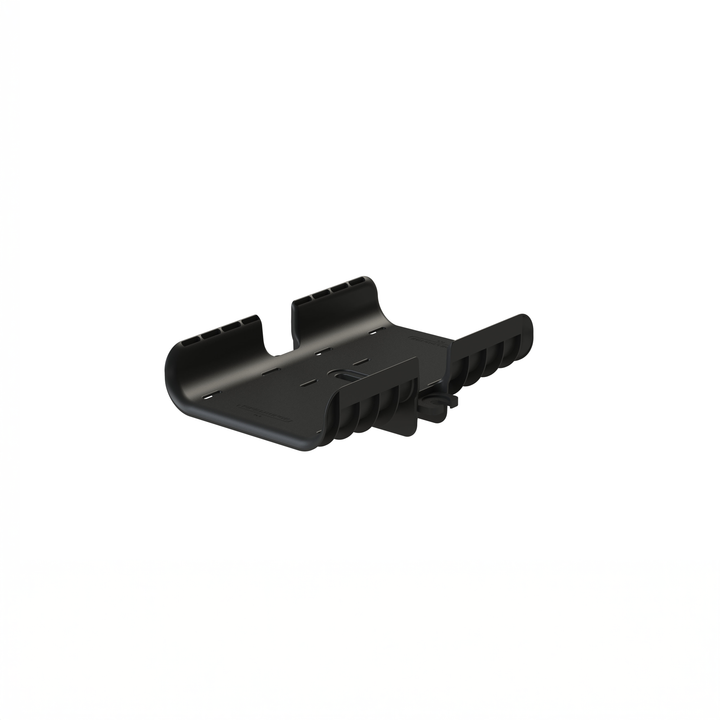

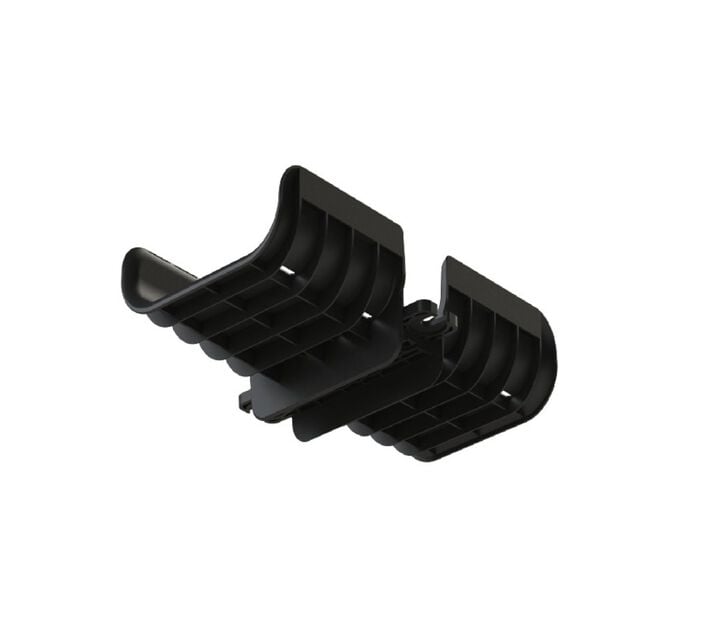

Malco PL8 Pipelounge pipe support 8 inch 20 pieces

Product Description

The MALCO PL8 Pipelounge Pipe Support is a modular system designed for HVAC line sets, allowing for expansion and contraction while protecting insulation and maintaining alignment. It supports up to 110 lbs without strut, simplifying installation by eliminating multiple components. This system uses standard 3/8 inch threaded rod and is suitable for various pipe sizes and configurations, reducing material and labor.

• Modular and stackable design for versatile configurations
• Constructed from tough fire rated ABS material
• Supports up to 110 lbs without requiring additional strut components

Product Highlights

Modular HVAC line set support system for efficient installation and pipe protection.

Product Information

Standard Information

• Brand: MALCO
• Manufacturer Part Number: PL8
• Country of Origin: United States

Technical Specifications

• Load Capacity: 110 lbs
• Maximum Spacing: 5 feet (60 inches) along pipework, 8 inches from changes in direction
• Threaded Rod Size: 3/8 inch
• Material: PC/ABS (non-halogenated flame-resistant)
• Plenum Rated: No
• UL94 Classification: Met
• Assembled Weight: 0.82 lbs
• Country of Origin: United States
• Dimensions: 3.38 x 12 x 9.13 inches
• Package Weight: 18.11 lbs
• Pipe Compatibility: 8 inches
• Package Quantity: 20
• Included Components: Pipe Support
