Product Description

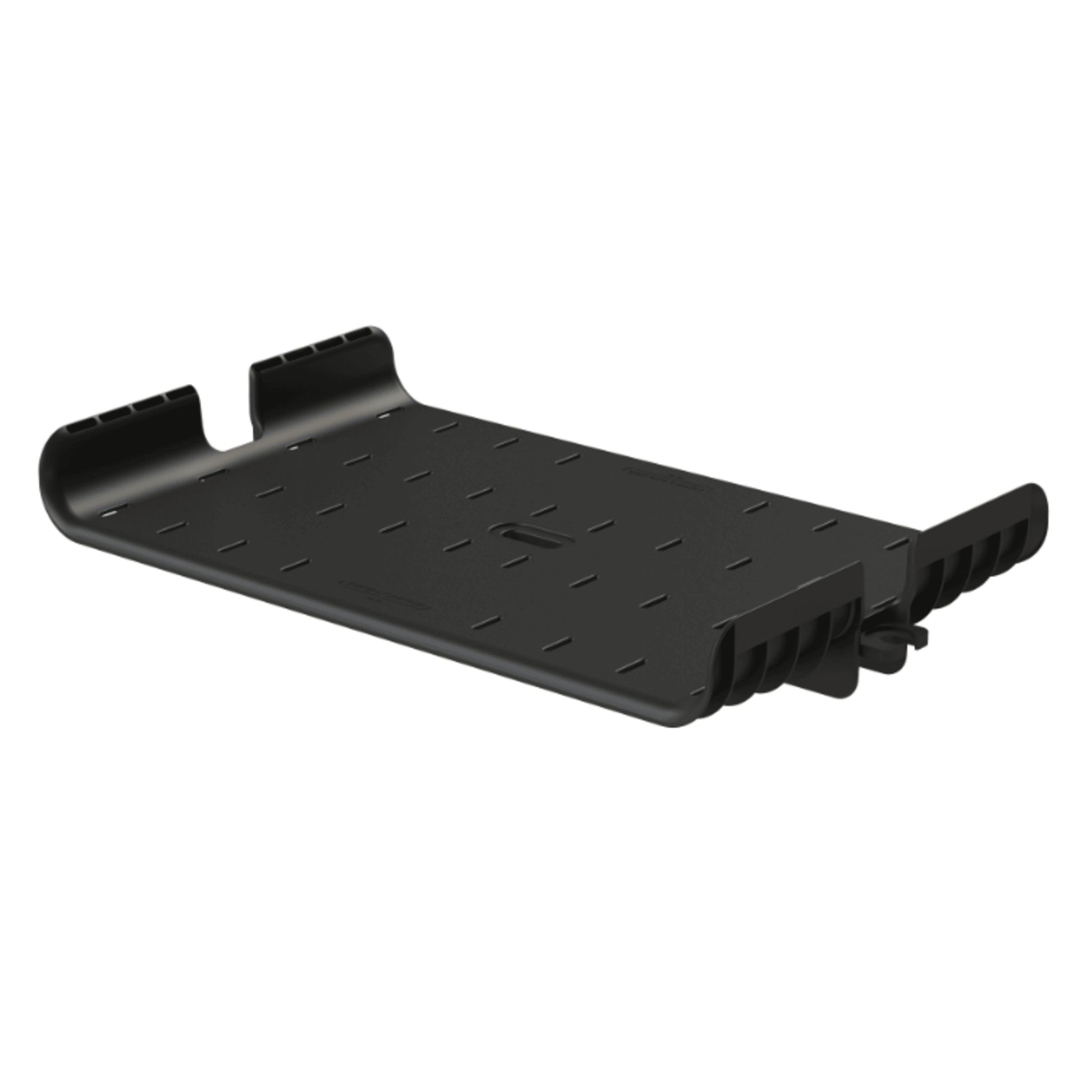

The MALCO PL20 20-inch Pipe Support is a modular system designed to hold multiple insulated HVAC line sets, accommodating expansion and contraction. It cushions pipes to protect insulation and maintain proper alignment. This system reduces installation complexity by eliminating the need for multiple strut components. Its modular design allows stacking or joining for various pipe sizes and configurations, reducing material use and labor. It supports up to 110 lbs without strut and installs with standard 3/8-inch threaded rod.
- Modular and stackable design
- Tough fire rated ABS
- No need for strut
Product Highlights
Modular support for HVAC line sets, rated for 110 lbs, made from non-halogenated flame-resistant PC/ABS with UL94 classification.
Product Information
Standard Information
-
Brand: MALCO
-
Manufacturer Part Number: PL20
-
Country of Origin: USA
Technical Specifications
-
Load Capacity: 110 lbs
-
Installation Spacing: Maximum intervals of 5 feet (60 inches) along supported pipework, maximum 8 inches from each change in direction
-
Threaded Rod Size: 3/8 inch
-
Material: PC/ABS, non-halogenated flame-resistant
-
Certification: UL94 classification
-
Assembled Weight: 1.77 lbs
-
Country of Origin: United States
-
Package Contents: 10 Pipe Support
-
Product Condition: New
-
Restrictions: CA Prop 65
-
UPC: 686046560267
-
Package Weight: 19.78 lbs
-
Item Type Name: Pipe support
-
ASIN: B0GPSX2N9S
-
Dimensions (L x W x H): 21.13 x 12 x 3.38 inches
-
Unit Count: 10
-
Length: 20 inches
