Product Description

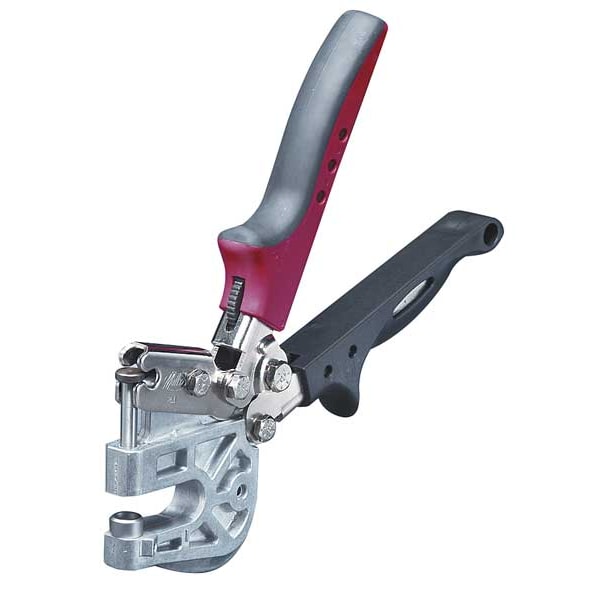

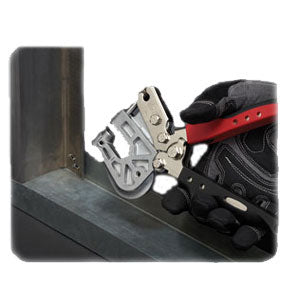

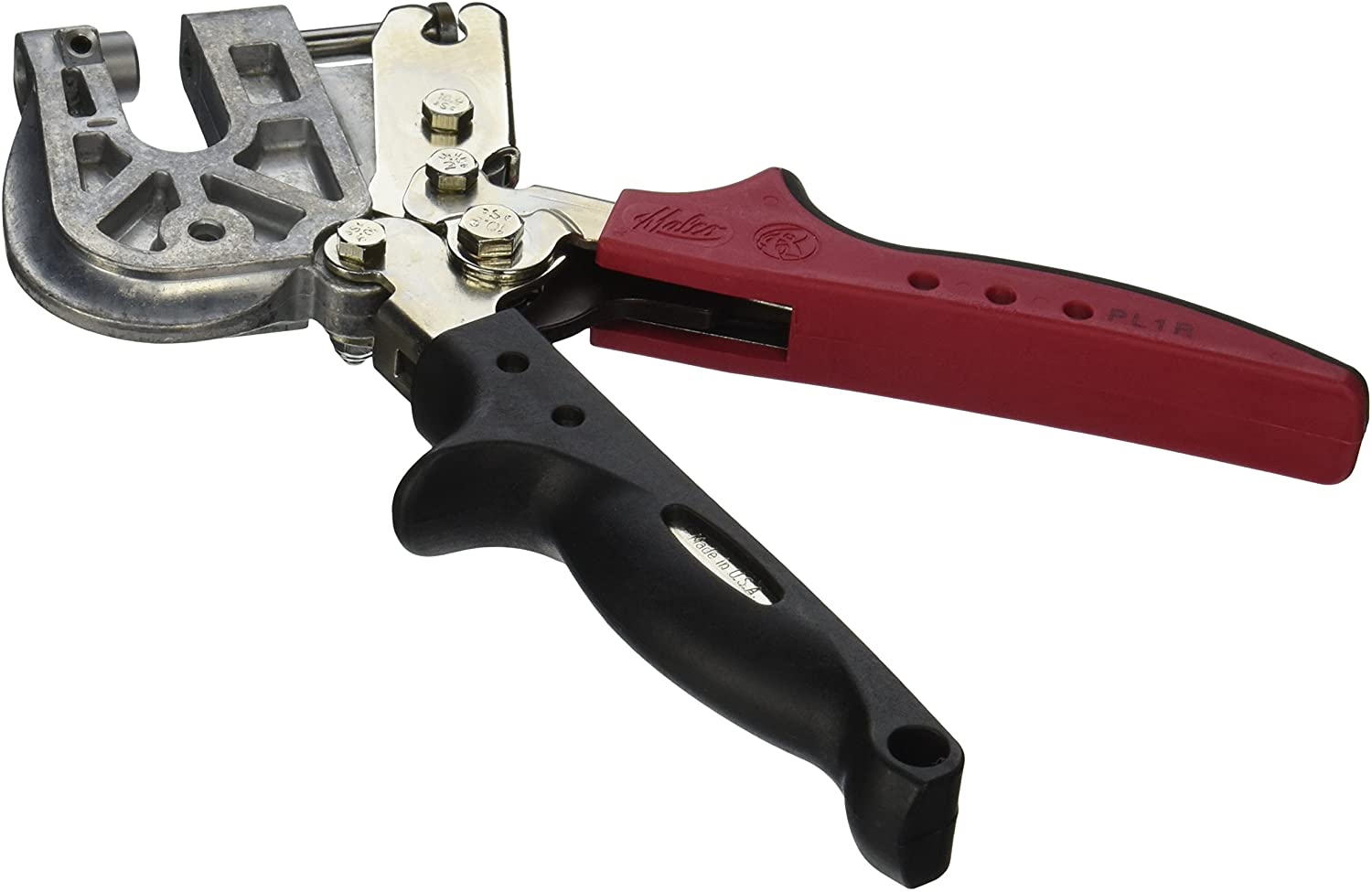

The Malco PL1R RedLine Punch Lock Stud Crimper is designed for joining metal stud and track framing without fasteners. It features a unique punch and die shape that creates a rectangular crimp connection, bending layered thicknesses of channel and stud to form a sturdy bond. The tool's ergonomic handle design maximizes leverage and provides a comfortable operating range, ensuring efficient one-hand operation. This crimper is suitable for galvanized steel up to 22 gauge.
- Maximizes powerful leverage with compound head-to-handle linkage for comfortable operation.
- Ergonomic handle contours with soft-touch, non-slip insert for a natural fit and feel.
- Enables easy one-hand operation with a simple open and close latch motion.
Product Highlights
Lightweight, maneuverable, and secures metal studs without fasteners using 7:1 compound leverage for easy one-hand operation.
Product Information
Standard Information
-
Brand: MALCO
-
Manufacturer Part Number: PL1R
-
Country of Origin: United States
Technical Specifications
-
Type: Crimper
-
Replacement Parts: PLD1
-
Throat Depth: 1-1/2 inches
-
Country of Origin: United States
-
Item: Metal Stud Crimper
-
Material: Die Cast Zinc with Nickel Plating
-
Grip Style: Deluxe Cushion
-
Handle Color: Red/Black
-
Jaw Material: Die Cast Aluminum
-
Safety Latch: Yes
-
Depth Marking: No Markings
-
Handle Design: Soft-touch w/Nonslip Handle Insert
-
Overall Length: 9-1/2"
-
Number of Blades: 1
-
Compatible Material: Galvanized Steel
-
Mild Steel Gauge - Maximum: 20 ga
-
Stainless Steel Gauge - Maximum: 22 ga
-
Galvanized Steel Gauge - Maximum: 22 ga
-
Thickness Capacity: 0.034 in (0.86 mm)
-
Mechanical Advantage: 7:1
-
Head Material: Die-cast aluminum
-
Handle Material: Rust-resistant, nickel plated steel
-
Punch and Die Material: Tool steel
