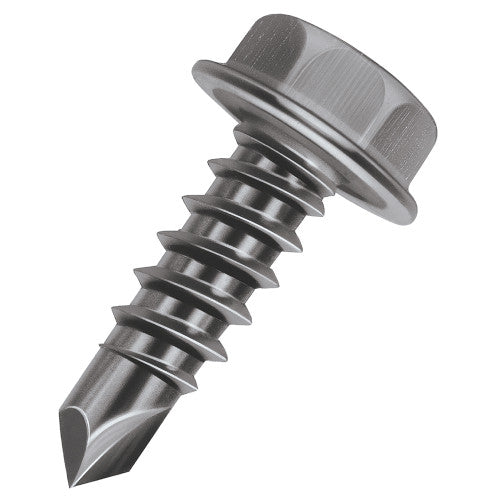

Malco BT144G Bit Tip Screw 10-16x1 inches Box Of 100

Product Description

The MALCO BT144G Bit-Tip Screw is a self-drilling and self-tapping fastener designed for efficient installation. It creates its own optimal hole size, ensuring better thread engagement and a tight fit in one operation. This eliminates alignment problems and the need for auxiliary fastening equipment like drill bits or taps. Made from heat-treated steel, it is suitable for various applications including fastening plywood, soft wood, composition board, drywall, insulation, and laminates to metal framing.

• Designed for .11 - .175 material thickness
• Features a self-tapping and self-drilling design
• Requires a standard screw gun power tool rated at 2500 RPM with drilling depth locator

Product Highlights

One-pass fastening for metal and multi-material applications, replacing traditional fasteners.

Product Information

Standard Information

• Brand: MALCO
• Manufacturer Part Number: BT144G

Technical Specifications

• MPN: BT144G
• Brand: MALCO
• Inventory SKU: MLCBT144X
• Reference ID: MALCOBT144G
• Tip Style: Drill & Tap
• Shank Diameter: #8
• Threads Per Inch: 16
• Length: 1 In.
• Type: Drill and Tap Screw
• Material Thickness: .11 - .175
• Driver Size: 5/16 in.
• Screw Point: #3
• Head Type: 5/16" Hex Washer
• Screw Size: 10-16x1
• Material: Heat-treated steel; precision cold forged
• Count: 100 screws per package
• Application: Self-drilling, self-tapping sheet metal screws for HVAC, structural, and layered metal projects
• SKU: 114496
