Malco BT134 BIT-TIP HW 8-18X1

Product Description

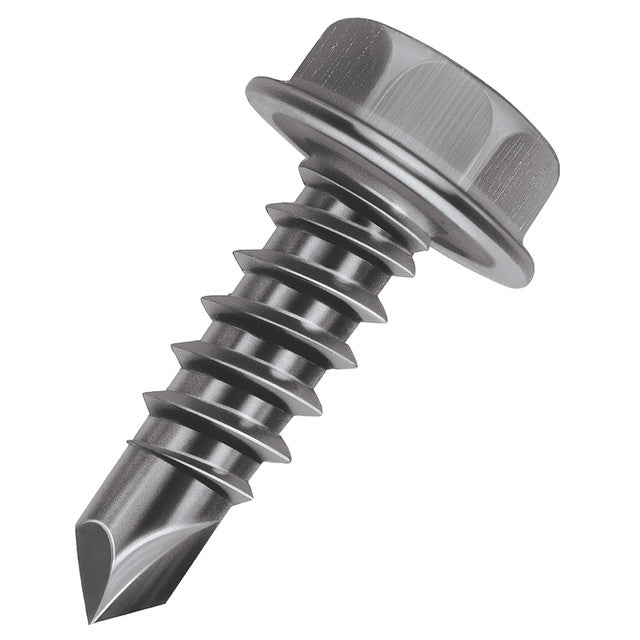

The Malco BT134 Bit-Tip Self Drilling Screw features a #8-18 thread with an overall length of one inch. This screw includes a hex washer head and hex drive. Made from steel, it is designed for durability and reliable performance. The #2 point is specifically engineered for effective drilling.

• Self-drilling functionality allows for quick installation.
• Suitable for materials with a thickness ranging from 0.035 to 0.1 inches.
• Complies with US Patent No. D524/638 for unique design and function.

Product Highlights

This screw is ideal for structural and layered metal applications, particularly in duct work where efficiency and strength are required.

Product Information

Standard Information

• Brand: Malco Products Inc
• UPC: 686046512525

Technical Specifications

• Diameter - Thread Size: #8-18
• Drive Size: 1/4 in
• Drive Type: Hex
• Head Type: Hex Washer
• Material: Steel
• Overall Length: 1 in
• Point Size: #2
• Thread Length: 1 in
• Manufacturer: Malco Products Inc
