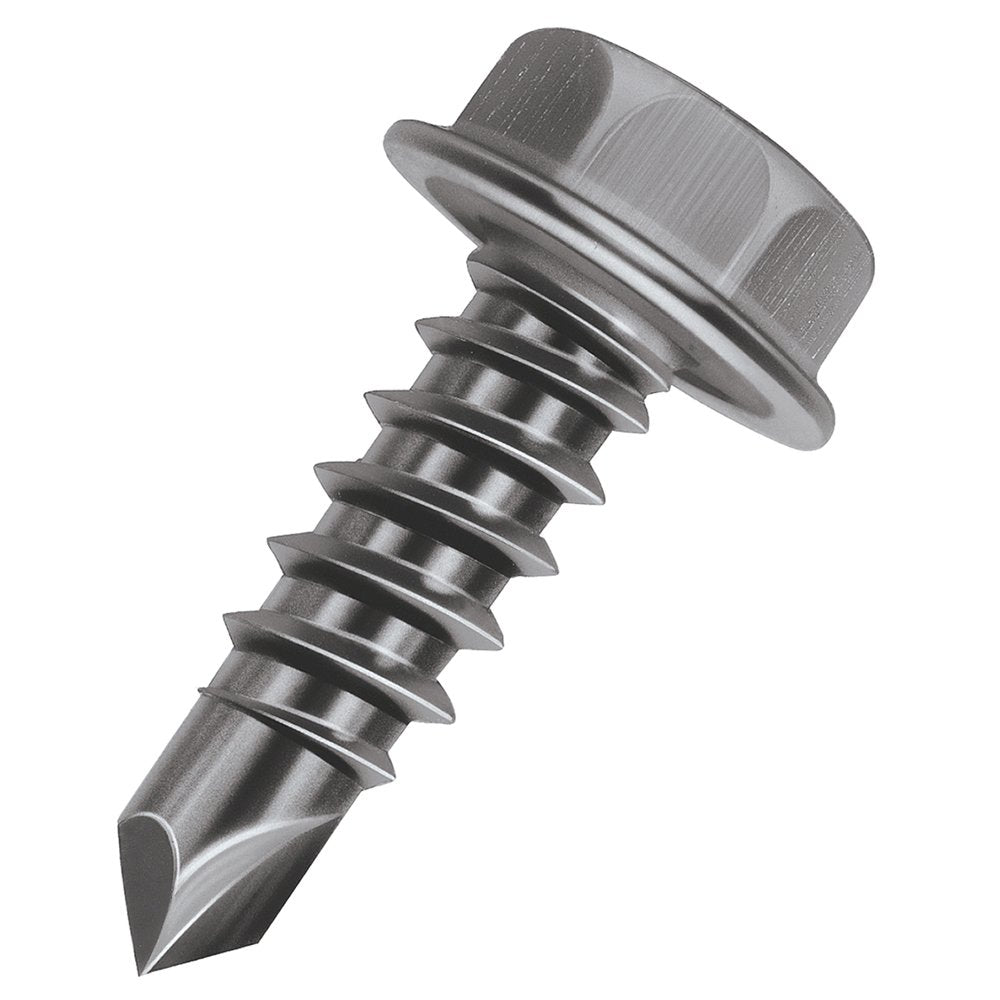

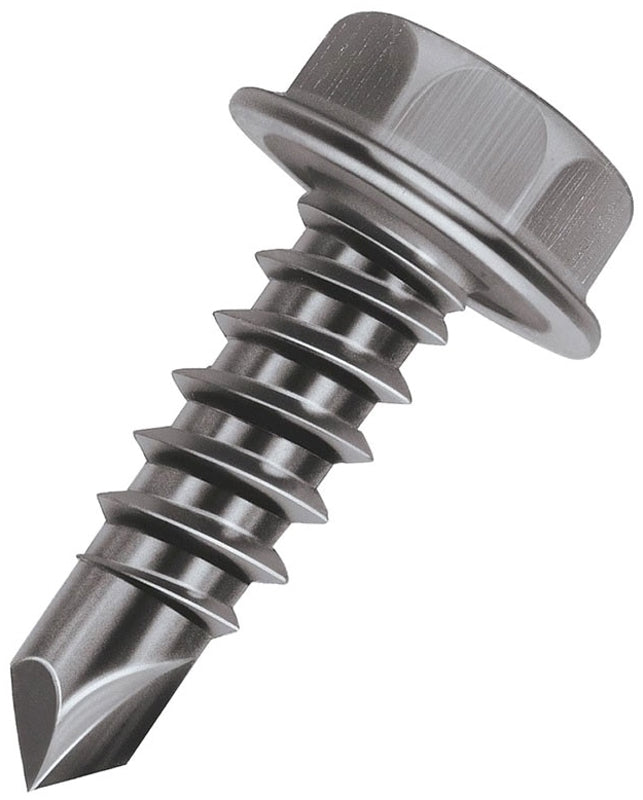

Malco BT131X Bit-Tip Drill and Tap Screw #8-18 x 1/2 Inch 100 Pack

Product Description

The MALCO BT131X Bit-Tip drill and tap screw creates an optimum hole size for better thread engagement and a tighter fit. These self-drilling and tapping screws eliminate the need for costly equipment. They are made from high-quality, heat-treated steel and are precision cold forged. Ideal for use in a wide range of industry applications.

• Produces optimum hole size for better thread engagement
• Made from strong, high-quality, heat-treated steel
• Eliminates the need for auxiliary equipment

Product Highlights

These self-drilling and tapping screws are ideal for fastening operations using rivets, nuts, bolts, spot welds, or adhesives.

Product Information

Standard Information

• Brand: MALCO
• Manufacturer Part Number: BT131X

Technical Specifications

• CATALOG NUMBER: BT131X
• Category: Fasteners & Hardware
• Head Style: Hex Washer
• Drive Style: Hex
• Nominal Diameter: #8
• Drill Point Size: #2
• TPI: 18
• Length: 1/2 Inch
• Material: Steel
• Process: Heat Treated
• Driver Size: 1/4 Inch
• For Material Thickness: 0.035 to 0.1 Inch
• Tensile Strength: 1575 Pound
• Packaging Type: Box
• MPN: BT131X
• Screw Size: #8-18
• Thread Size: 8-18
• Torsional Strength: 42 lb
• Screw Type: Tek Screw, Self Drill and Tap Screws
• Head Type: Hex Washer Head
• Brand Name: Malco
• Hardware Type: Zinc-Plated Steel Hexagonal Washer Head Self Drill
• Drive Type: Self Piercing
• Measurement System: Imperial
• Diameter - Thread Size: #8-18
• Drive Size: 1/4
• Point Size: #2
• Thread Length: 1/2
• Type: Self Drill and Tap Screws
• Size: #8
• Diameter-Thread Size: 8-18
• Head Size: 1/4 Hex
• Packaging Size: 100
• Collection: Bit-Tip
• Configuration: Hex Washer Head
