Malco 55467 Hex Head Sheet Metal Screws 10-16 X 3/4 in 100pk

Product Description

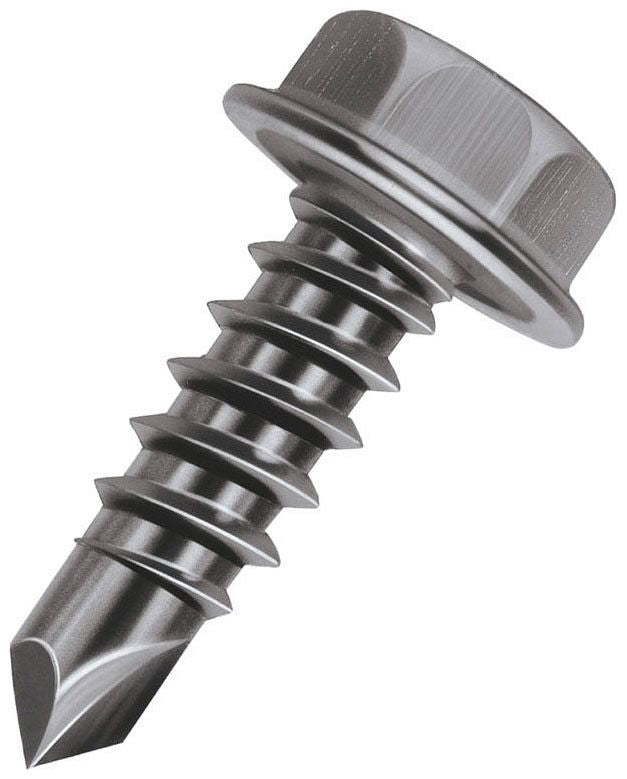

The MALCO 55467 is a pack of 100 hex head self-tapping sheet metal screws in a 10-16 x 3/4 inch configuration. These screws are designed to drive into sheet metal without a pre-tapped hole, using a sharp point and aggressive thread pitch to create their own thread on penetration. The hex head format allows fast installation with a nut driver or hex-drive bit. This pack format reduces restocking trips during high-volume jobs and keeps installation moving. HVAC installers and sheet metal workers will recognize this as a standard fastener for duct assembly, equipment panels, and enclosure work.

These screws are suited for light-gauge sheet metal applications common in residential and commercial HVAC ductwork, air handler enclosures, equipment cabinets, and similar fabrication and service work. The 10-16 thread designation indicates a No. 10 diameter with 16 threads per inch, appropriate for joining sheet metal panels and thin-gauge steel components. The 3/4 inch length provides adequate thread engagement without excessive protrusion on standard-gauge sheet metal.

Key Features

• Self-tapping point cuts threads on entry — no pre-drilling or tapping required on sheet metal
• Hex head drives quickly with a nut driver or 1/4 inch hex bit
• 10-16 x 3/4 inch size is a widely used standard in HVAC duct and panel work
• Sold in a pack of 100 to support production and service volume

Compatibility

Designed as a standard self-tapping hex head screw for light-gauge sheet metal applications including HVAC ductwork, equipment panels, and metal enclosures.

Installation Notes

Sheet metal screws of this type are typically installed by HVAC technicians and sheet metal workers using a nut driver or drill with a hex-drive bit. Avoid overdriving, which can strip threads in thin-gauge material or distort the panel. Ensure the base material gauge is appropriate for the 10-16 thread pitch before driving. No special tools or permits are required for standard fastener installation.

Technical Specifications

• Thread Size: 10-16
• Screw Length: 3/4 inches
• Head Style: Hex Head
• Type: Self-Tapping Sheet Metal Screw
• Quantity per Pack: 100
• UPC: 686046554679

Standard Information

• Brand: MALCO
• Manufacturer Part Number: 55467
