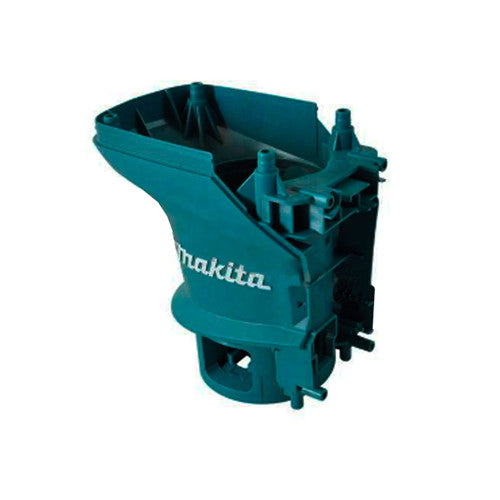

Makita 454316-9 Motor Housing HR4013C Rotary Hammer

Product Description

The MAKITA 454316-9 is a factory replacement motor housing designed for the HR4013C rotary hammer. The motor housing is the primary structural shell that encloses and protects the motor assembly, keeping internal components aligned and shielded from jobsite debris and impact. This is an OEM-sourced service part used by tool repair technicians and authorized service centers when the original housing is cracked, broken, or damaged beyond repair. Proper fitment of the motor housing is critical to maintaining motor alignment, airflow, and overall tool integrity.

The 454316-9 motor housing is specific to the MAKITA HR4013C rotary hammer, a professional-grade corded rotary hammer commonly used in concrete drilling and chiseling applications on commercial and residential jobsites. This part is typically installed during depot-level or field repairs when the outer housing sustains physical damage. Replacement restores the tool to factory structural specification.

Key Features

• OEM factory replacement part sourced directly from MAKITA
• Designed specifically for the HR4013C rotary hammer model
• Encloses and protects the motor assembly from debris and impact damage
• Restores factory structural integrity when original housing is compromised
• Direct-fit replacement requiring no modification during installation

Compatibility

Designed as an OEM replacement motor housing for the MAKITA HR4013C rotary hammer.

Installation Notes

Motor housing replacement on rotary hammers should be performed by a qualified tool repair technician or authorized MAKITA service center. Disconnect and unplug the tool completely before beginning any disassembly. Internal components including the armature, field coil, and gear assembly must be carefully removed and transferred to the new housing without damage. Follow the manufacturer service manual for proper reassembly sequence and fastener placement.

Technical Specifications

• Part Type: Motor Housing
• Compatible Model: HR4013C

Standard Information

• Brand: MAKITA
• Manufacturer Part Number: 454316-9
