Makita 324803-1 Cylinder for HR4510C Rotary Hammer

Product Description

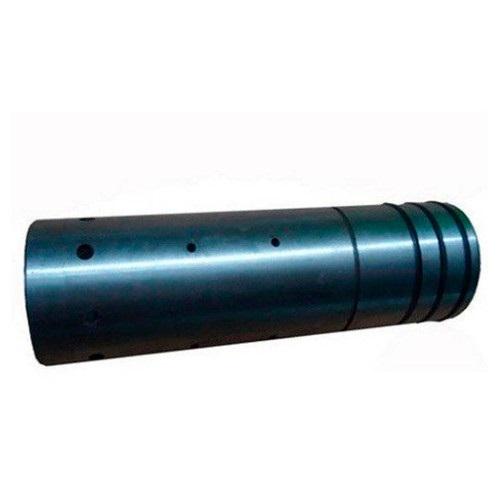

The MAKITA 324803-1 is a replacement cylinder designed for use in the Makita HR4510C rotary hammer. The cylinder is a core internal component of the hammer mechanism, responsible for housing the piston and guiding the impact action that drives bits through masonry, concrete, and similar materials. This is an OEM-style replacement part intended for installation by qualified power tool service technicians performing internal repairs or rebuilds on the HR4510C rotary hammer.

This cylinder is matched to the HR4510C rotary hammer platform, a heavy-duty SDS-MAX class tool used in commercial and industrial masonry applications. It is typically replaced during a major service interval or following internal wear or damage to the impact mechanism. Proper fitment requires disassembly of the hammer housing and internal drive components.

Key Features

• OEM-style replacement cylinder sized for the HR4510C rotary hammer
• Designed to restore proper piston travel and impact function within the hammer mechanism
• Direct fit eliminates the need for modification during installation
• Suitable for professional power tool service technicians performing internal rebuilds

Compatibility

Designed as a replacement cylinder for the Makita HR4510C rotary hammer.

Installation Notes

Installation of internal rotary hammer components should be performed by a qualified power tool service technician. Disconnect and isolate the tool from all power sources before beginning disassembly. Proper reassembly requires familiarity with the HR4510C internal drive and piston mechanism. Refer to the manufacturer service documentation for disassembly sequence and component orientation.

Technical Specifications

• Compatible Tool: Makita HR4510C
• Component Type: Cylinder

Standard Information

• Brand: MAKITA
• Manufacturer Part Number: 324803-1
