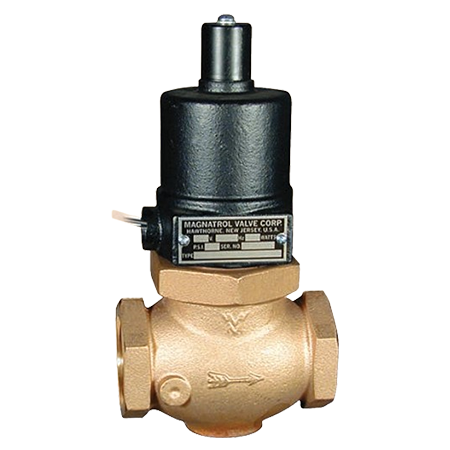

Magnatrol Solenoid Valves 133GR27-G Normally Open Solenoid Valve

Product Description

The Magnatrol Solenoid Valves 133GR27-G is a normally open solenoid valve with a two inch NPT pipe connection. It operates at one hundred twenty volts with a power consumption of sixty-five watts. The valve body is made from cast bronze and is designed for a maximum differential pressure of thirty psi. This valve remains open when de-energized, allowing for constant airflow. Upon energization, the valve closes to control the flow.

• Two inch NPT pipe connection
• Operates at one hundred twenty volts and sixty-five watts
• Bronze body with a maximum differential pressure of thirty psi

Product Highlights

This solenoid valve is UL-listed and suitable for various applications including pneumatic systems.

Product Information

Standard Information

• Brand: Magnatrol Solenoid Valves
• Input Voltage: 120V

Technical Specifications

• Pipe Connection Size: 2 NPT
• Maximum Differential Pressure: 30 psi
• Maximum Fluid Temperature: 212°F
• Maximum Static Pressure: 150 psi
• Body Material: Cast Bronze
• Wattage: 65W
• Media: Air
• Pattern: Globe
• Spring Material: 302 Stainless Steel
• Approvals: UL-listed
