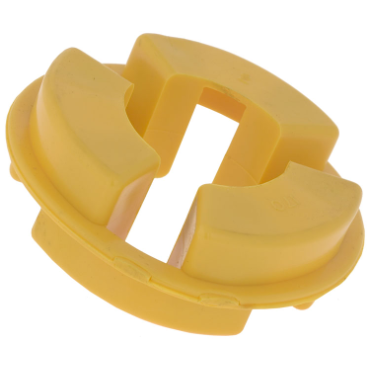

Magnaloy Coupling Co. M670U9 Flexible Coupling Insert 600

Product Description

The Magnaloy Coupling Co. M670U9 is a flexible coupling insert designed for various applications. This insert is made from durable urethane and is compatible with different horsepower and RPM needs. It is simple to select the right size, ensuring proper fit for your equipment. Order the insert and coupling halves separately as needed.

• Lightweight magnesium construction
• Excellent mechanical and physical properties
• Temperature range from -30 °F to 150 °F

Product Highlights

This coupling insert is lightweight yet provides robust performance. It is ideal for medium-duty applications.

Product Information

Standard Information

• Manufacturer: Magnaloy Coupling Co.
• Min Order Qty: N/A

Technical Specifications

• Coupling Size: 600
• Torque Rating: 7420.1 in lb
• Color: Yellow
• Insert Style: One Piece
• Temperature Range [Max]: 150 °F
• Material: Urethane Spider
• Temperature Range [Min]: -30 °F
• Hardness: 90
• HP @ RPM: 11.9 hp @ 100 rpm, 142.5 hp @ 1200 rpm, 213.7 hp @ 1800 rpm
• No. of Legs: 6
• Weight: 1.9 LB
