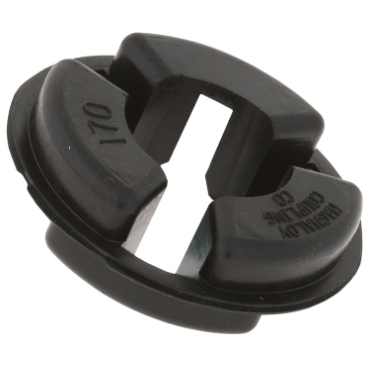

Magnaloy Coupling Co. M670N7 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M670N7 Flexible Coupling Insert is designed for use with various horsepower and RPM requirements. This coupling insert allows you to choose the appropriate coupler size, shaft diameter, and keyway size needed. It features lightweight magnesium construction, making it significantly lighter than traditional options.

• Compatible with specific horsepower and RPM levels.
• Weighs significantly less than cast iron and aluminum couplings.
• Offers good resiliency and load capabilities.

Product Highlights

This insert is ideal for flexible drive systems. Its design maximizes performance while minimizing weight.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part #: 100439897

Technical Specifications

• Outside Diameter: 5.975 inches
• Material: Neoprene
• Hardness: 70
• HP @ RPM: 7.9 hp @ 100 rpm, 94.9 hp @ 1200 rpm, 142.5 hp @ 1800 rpm
• Insert Style: One Piece
• Coupling Size: 600
• Color: Black
• Torque Rating: 4946.7 inch-lb
• Temperature Range (Max): 250 °F
• Temperature Range (Min): -30 °F
• Number of Legs: 4
• Weight: 1.9 lb
