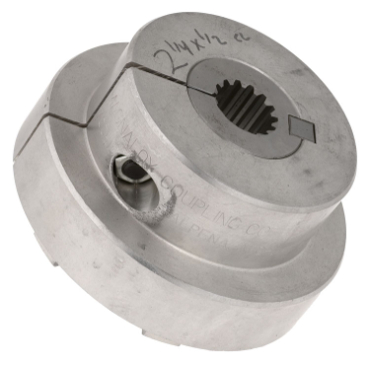

Magnaloy Coupling Co. M600A1308C Flexible Coupling Spline Bore Hub

Product Description

The Magnaloy Coupling Co. M600A1308C is a flexible coupling designed for connecting the shafts of electric motors to hydraulic pumps or gearboxes. It assists in alignment and energy transfer, making it essential in various applications.

• Lightweight magnesium construction enhances strength compared to cast iron and aluminum
• Rustproof and corrosion-resistant properties ensure longevity
• Close machining tolerances yield vibration-free operation

Product Highlights

This coupling is ideal for installations requiring reduced load on bearings and supports easy handling and installation without the need for special tools.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part #: 100439867

Technical Specifications

• Material: Magnesium Titanium
• Spline Size: 13T 8/16
• Lock Type: Clamp-Style
• Length Through Bore: 2.31 in
• Spline Description: 8/16
• Outside Diameter: 5.975 in
• Coupling Size: 600
• Hub Diameter: 4 1/2 in
• Overall Assembly Length: 5.98 in
• Number of Teeth: 13
• Weight: 3.5 LB
