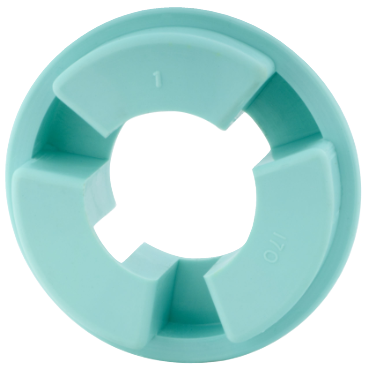

Magnaloy Coupling Co. M370H5 Flexible Coupling Insert

Product Description

The Magnaloy Coupling Co. M370H5 is a flexible coupling insert designed to meet specific horsepower and RPM needs. This component is used to create reliable connections in mechanical systems, ensuring optimal performance.

• Lightweight magnesium construction
• Suitable for a temperature range of -65 degrees Fahrenheit to 300 degrees Fahrenheit
• Designed for high-torque applications

Product Highlights

This flexible coupling insert is engineered for heavy-duty conditions, offering superior mechanical properties and excellent fluid compatibility.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439735

Technical Specifications

• Temperature Range [Min]: -65 degrees Fahrenheit
• Temperature Range [Max]: 300 degrees Fahrenheit
• HP @ 100 RPM: 3.36 hp
• HP @ 1,200 RPM: 40.4 hp
• HP @ 1,800 RPM: 60.6 hp
• Bore Size [Max]: 1.625 inches
• Coupling Size: 300
• Torque Rating: 2104.2 in lb
• Hardness: 50
• Color: Blue/Green
• Material: Hytrel
• Weight: 0.25 lb
