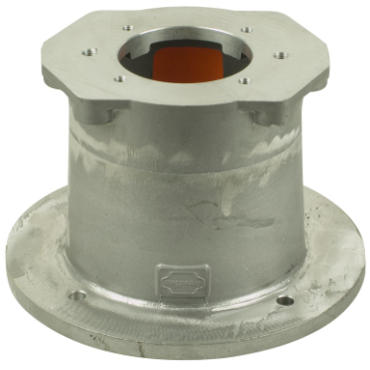

Magnaloy Coupling Co. M324872C Horizontal Pump/Motor Mount Adapter

Product Description

The Magnaloy Coupling Co. M324872C is a horizontal pump/motor mount adapter. It is designed to provide a reliable connection between hydraulic pumps and electric motors. This component is key in ensuring efficient operation in various applications.

• Constructed from machined aluminum
• Compatible with SAE C pump flanges
• Designed for use with motor frames 324TC/TSC-405TC/TSC and 324UC/USC-405UC/USC

Product Highlights

This adapter offers a strong and lightweight design, which simplifies the alignment of pump and motor installations.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439731

Technical Specifications

• Mounting Type: Horizontal
• Pump Flange: SAE C
• Radial Clearance: 7.74 in
• Motor Mount Holes: 4
• Material: Aluminum
• Motor Frame: 324TC/TSC-405TC/TSC, 324UC/USC-405UC/USC
• Axial Clearance: 7 7/8 in
• Pump/Motor Mount Length: 8 3/4 in
• Pump Flange Type: SAE
• Weight: 17.5 LB
