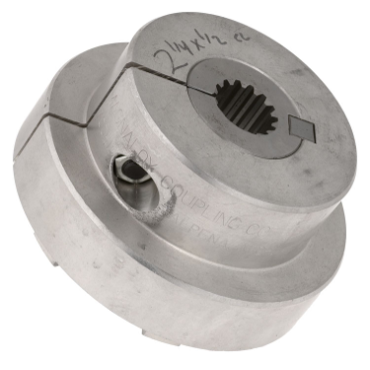

Magnaloy Coupling Co. M300A1316 Flexible Coupling Spline Bore Hub

Product Description

The Magnaloy Coupling Co. M300A1316 is a Flexible Coupling Spline Bore Hub designed to efficiently connect electric motors to hydraulic pumps or gearboxes. This coupling serves both alignment and energy transfer functions, ensuring optimal operation.

• Designed for easy handling and installation
• Constructed with lightweight, durable magnesium
• Vibration-free operation with precise alignment

Product Highlights

This hub features enhanced strength compared to traditional materials, reducing load on connected machinery.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part #: 100439714

Technical Specifications

• Material: Magnesium Titanium
• Hub Dia.: 2.9 inches
• No. of Teeth: 13
• Coupling Size: 300
• Spline Size: 13T 16/32
• Lock Type: Setscrew
• Outside Dia.: 3.45 inches
• Spline Description: 16/32
• Length Through Bore: 1.3 inches
• Overall Assembly Length: 3.58 inches
• Weight: 1.0 LB
