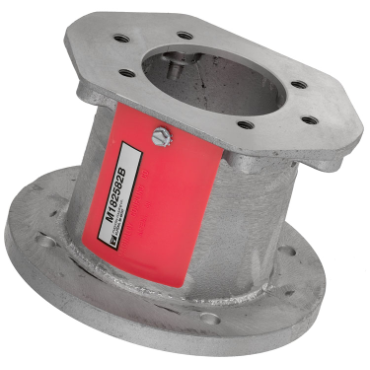

Magnaloy Coupling Co. M182582B Horizontal Pump/Motor Mount Adapter

Product Description

The Magnaloy Coupling Co. M182582B is a Horizontal Pump/Motor Mount Adapter designed to provide a reliable connection between hydraulic pumps and electric motors. This adapter is constructed from high-quality machined aluminum for durability and effectiveness.

• Compatible with SAE B pump flanges
• Designed for motor frames 182TC-256TC and 213UC-256UC
• Simple installation with SAE two-bolt or four-bolt mounting options

Product Highlights

This adapter simplifies installation and alignment, ensuring effective performance for various pumping applications.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part #: 100439632

Technical Specifications

• Axial Clearance: 5.06 in
• Radial Clearance: 5 in
• Mounting Type: Horizontal
• Motor Mount Holes: 4
• Pump Flange: SAE B
• Pump/Motor Mount Length: 5 13/16 in
• Pump Flange Type: SAE
• Material: Aluminum
• Motor Frame: 182TC-256TC, 213UC-256UC
• Weight: 6.0 LB
