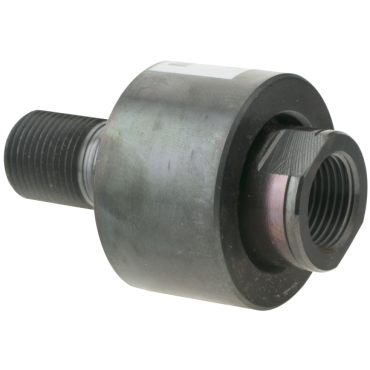

Magnaloy Coupling Co. M020-02814 Self-Aligning Rod End Coupler

Product Description

The Magnaloy Coupling Co. M020-02814 is a self-aligning rod end coupler designed for rods with a seven-eighths inch by fourteen thread. This coupler features an overall length of three and seven sixteenths inches, making it suitable for various applications in mechanical systems.

• Designed for rods with 7/8-14 thread
• Overall length is 3 7/16 inches
• Maximum working load rating of 14,450 lbs

Product Highlights

This rod end coupler is ideal for connecting rods in various mechanical applications, ensuring strength and stability. Its self-aligning feature allows for easier installation and operation.

Product Information

Standard Information

• Brand: Magnaloy Coupling Co.
• Part Number: 100439545

Technical Specifications

• Overall Length: 3.4375 inches
• Threads per Inch: 14
• Thread Type: UNF
• Thread Size: 7/8 inches
• Rated Working Load [Max]: 14,450 lbs
• Body Length: 1 5/16 inches
• Outside Diameter: 2.125 inches
• Weight: 1.4 lbs
