Magnaflux 628994 Electromagnetic Yoke Kit Battery-powered

Product Description

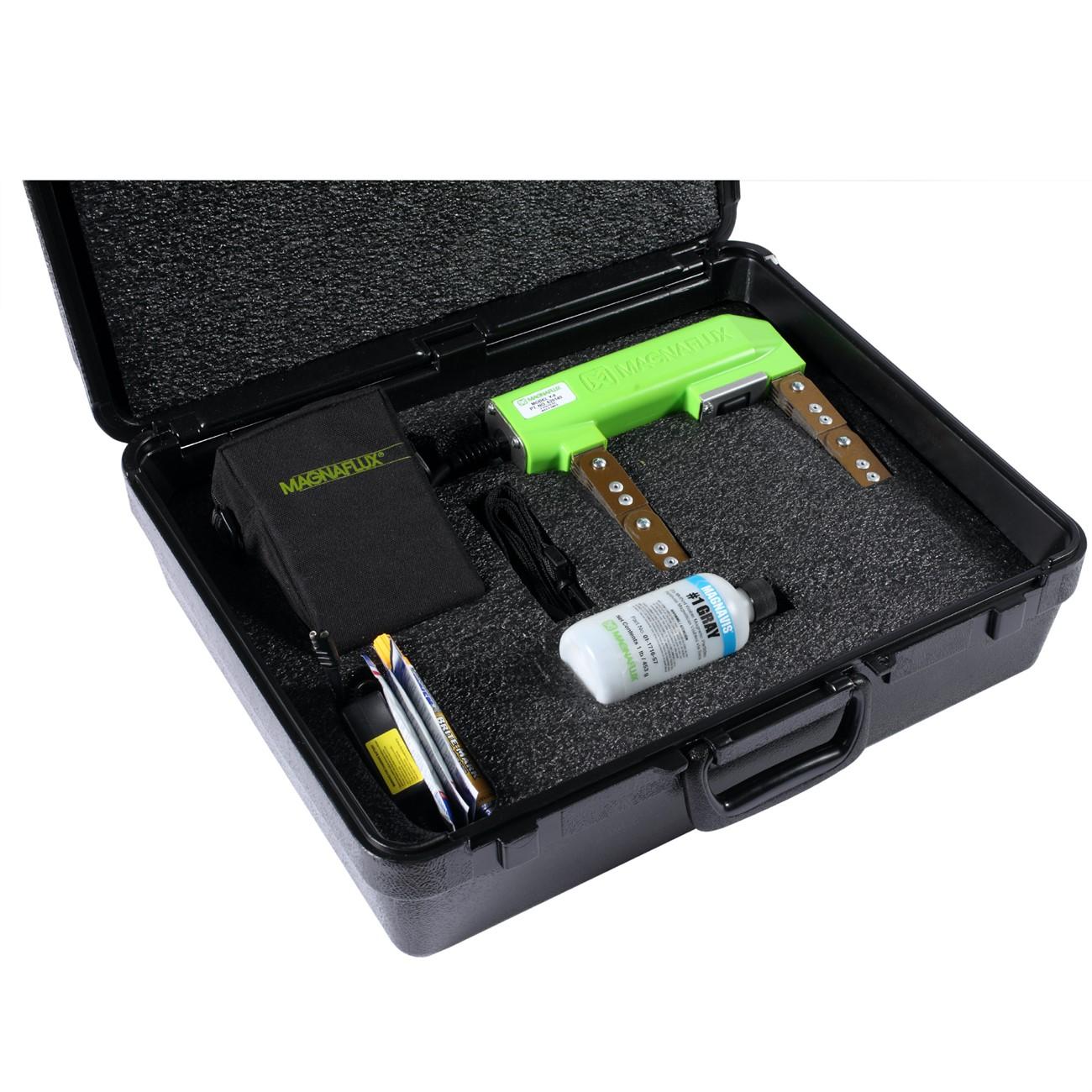

The MAGNAFLUX 628994 is a DC battery-powered electromagnetic yoke kit designed for magnetic particle inspection (MPI) in field and remote environments. The Y-8 MV yoke delivers a full 8-hour shift of inspection power from a compact battery pack, making it a true portable solution for non-destructive testing professionals. Sealed, chemical-resistant construction and articulating legs allow the yoke to conform to irregular part geometries. The kit includes the Y-8 yoke, a universal-voltage battery charger, global plug adapters, 1 Gray magnetic powder, a paint marker, and hand cleaner towels, all housed in a carrying case.

This kit is built for in-service inspections, field testing, and demanding job-site environments where AC power is unavailable or impractical. It performs subsurface and select surface defect detection, identifying inclusions, seams, tears, laps, welding slag, grinding cracks, and quenching cracks in ferromagnetic materials. NDT technicians and inspection contractors conducting structural weld inspections, pressure vessel examinations, and in-service component checks will find this kit appropriate for non-fluorescent colored magnetic particle testing procedures.

Key Features

• DC battery-powered operation delivers 8 hours of continuous inspection use per charge
• Sealed, chemical-resistant and abrasion-resistant housing for demanding environments
• Articulating legs contour to varied part shapes for consistent pole contact
• Exceeds ASTM lifting force specifications for electromagnetic yokes
• Individual serial number on each yoke supports traceability requirements
• Complete kit includes charger, global plug adapters, Gray magnetic powder, paint marker, and hand cleaner towels in a carrying case

Compatibility

Designed for magnetic particle inspection applications requiring portable DC electromagnetic yoke equipment; suitable for use in procedures governed by ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024, and ISO 9934-3.

Installation Notes

This equipment is operated by qualified NDT Level II or Level III technicians in accordance with applicable inspection procedures and codes. Before use, verify the battery charge state and confirm pole contact with the test surface per the applicable ASTM or ASME procedure. Demagnetize the test part after inspection as required by the governing specification. Follow all applicable safety protocols for magnetic field exposure and consumable handling.

Technical Specifications

• Power Source: DC Battery
• Battery Life: 8 hours per charge
• Charger Input Voltage: 115 volts universal
• Defect Detection: Subsurface and surface
• Compliance: ASME BPVC, ASTM E709, ASTM E1444, ASTM E3024, ISO 9934-3
• Weight: 24 pounds
• Unit of Measure: Each

Standard Information

• Brand: MAGNAFLUX
• Manufacturer Part Number: 628994
