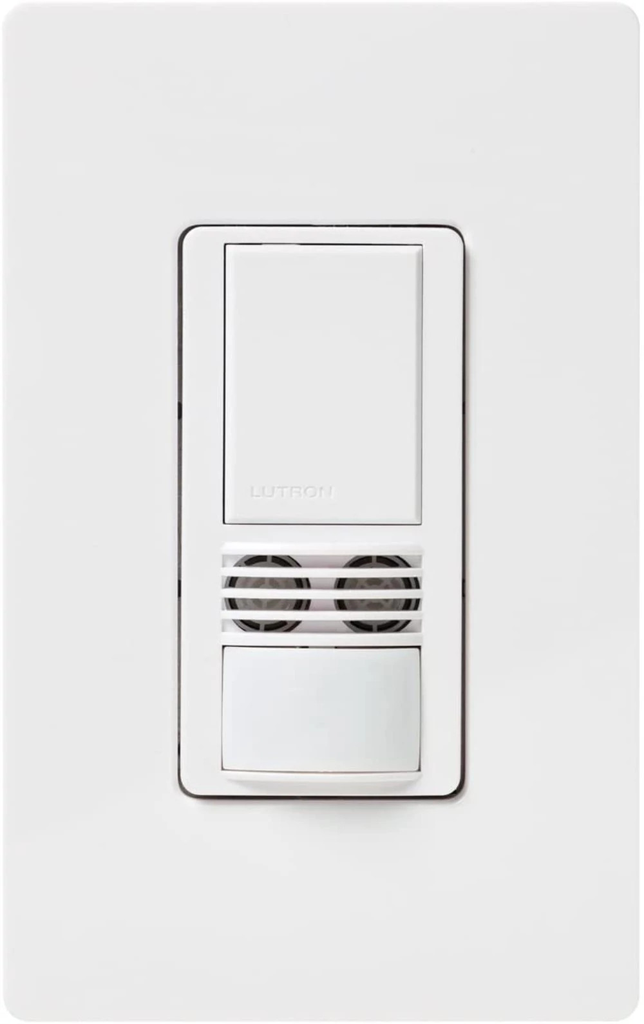

Maestro MS-B102-V-WH 120 to 277 VAC 6 Amp 1-Pole/3-Way/Multi-Location White Dual Technology Vacancy Sensor Switch

Product Description

The Lutron MS-B102-V-WH is a dual technology vacancy sensor switch operating at 120 to 277 VAC with a maximum load of six amps. It utilizes Lutron's XCT Technology, which combines ultrasonic and passive infrared sensing to detect fine and major motion accurately. This sensor can recognize minor movements such as typing and adjusts to ambient light levels thanks to its smart detection features.

• Compatible with incandescent, halogen, CFL, LED, and fluorescent lighting loads.
• Features an adjustable timeout from one to thirty minutes.
• Supports multiple sensing options for different lighting environments.

Product Highlights

This sensor provides reliable occupancy detection and can be installed in various settings, meeting Title 20 and Title 24 regulations for energy efficiency.

Product Information

Standard Information

• Brand: Maestro
• Manufacturer: Lutron

Technical Specifications

• Voltage: 120-277 Volt
• Amperage: 6 Amp
• Product Type: Multi-Location/3-Way/Single-Pole Vacancy Sensor Switch
• Field of View: 180 degrees
• Major Motion Coverage: 900 ft²
• Minor Motion Coverage: 400 ft²
• Ambient Light Detection: Learning ALD/Four selectable thresholds
• Requires: Neutral wiring
