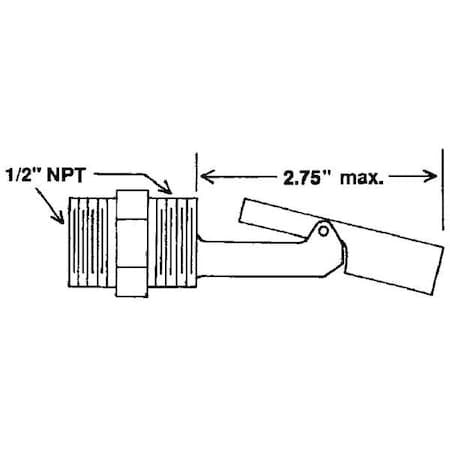

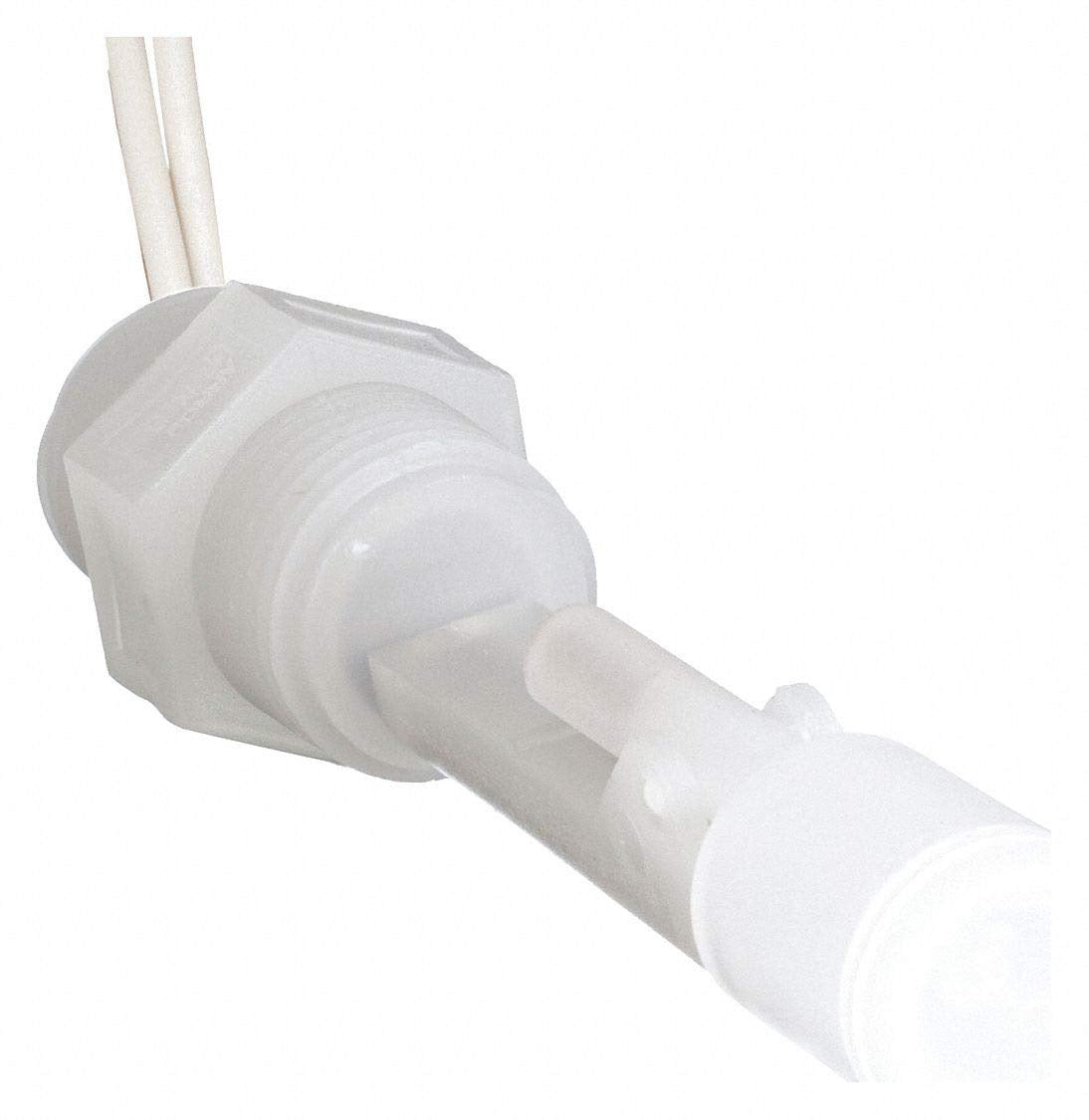

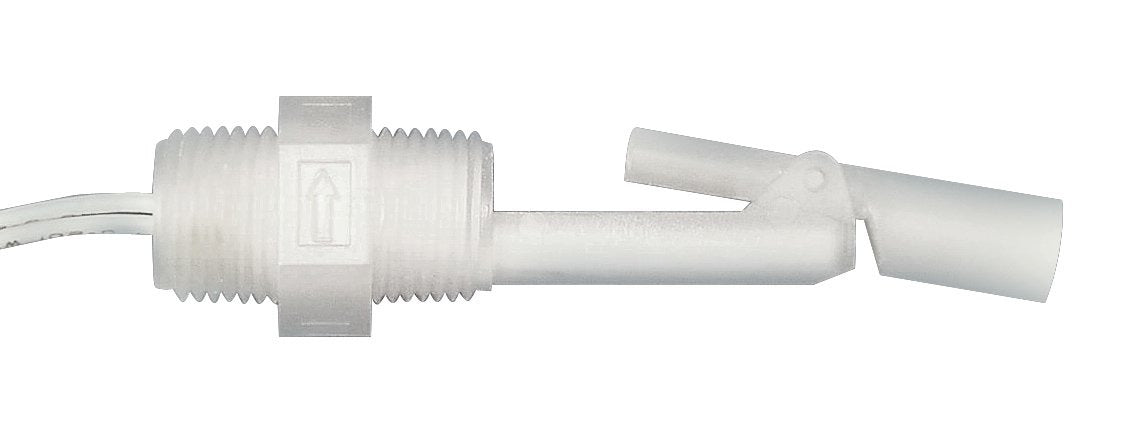

Madison M8700 Plastic Side-Mounted Liquid Level Float Switch 30 VA (1/2 in x 1/2 in NPT)

Product Description

Madison M8700 is a side-mounted plastic liquid level float switch featuring a polypropylene stem and SPST contact rated 30 VA. It provides a 1/2 in x 1/2 in NPT male connection and is rated to 100 psig with an operating temperature up to 221°F (105°C). The switch includes insulated leads for electrical connection and a compact form factor for tank or HVAC condensate applications.

• Polypropylene body, stem, and float with side-mount 1/2 in x 1/2 in NPT male connection; rated to 100 psig
• Selectable SPST contact logic (single-pole single-throw) rated 30 VA; maximum 240 V and up to 0.28 A depending on voltage
• Operating temperature up to 221°F (105°C); supplied with 22 AWG MTW insulated leads (24 in)

Product Highlights

Side-mounted SPST float switch, polypropylene construction, 30 VA rating, 1/2 in NPT connection, 100 psig, 221°F max

Product Information

Standard Information

• Brand: MADISON
• Manufacturer Part Number: M8700
• Country of Origin: United States
