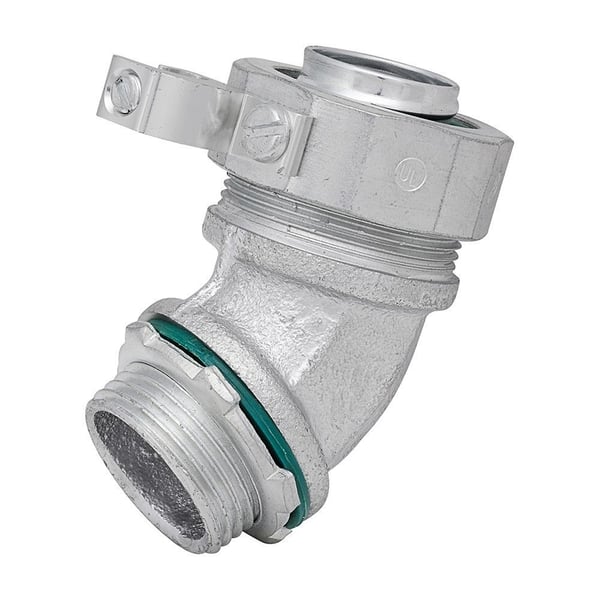

Madison Electric MSTR-10045-A Insulated Throat Liquid Tight Connector With Aluminum Grounding Lug, 1 in Trade, 45 deg, MSTR-10045-A

Product Description

The Madison Electric MSTR-10045-A is an insulated throat liquid tight connector designed for use with flexible metal conduits. This connector features an aluminum grounding lug and is made from malleable iron with a zinc plated finish. It is ideal for connecting liquidtight flexible metal conduit to boxes or enclosures.

• Raintight and oiltight for secure connections
• Long ferrule helps prevent pull out
• Suitable for use with flexible metal conduit

Product Highlights

The Madison Electric MSTR-10045-A ensures a tight and durable connection for liquidtight conduit systems.

Product Information

Standard Information

• Brand: Madison Electric
• MPN: MSTR-10045-A

Technical Specifications

• Finish: Zinc Plated
• Material: Malleable Iron
• Angle: 45 degrees
• Trade Size: 1 inch
• Standard & Approvals: UL 514B, cULus Listed, Federal Specification W-F-408E, NEMA FB-1 Rated
• UPC: 784297013263
• GTIN: 00784297013263
• Application: For connecting liquidtight flexible metal conduit to box or enclosure
