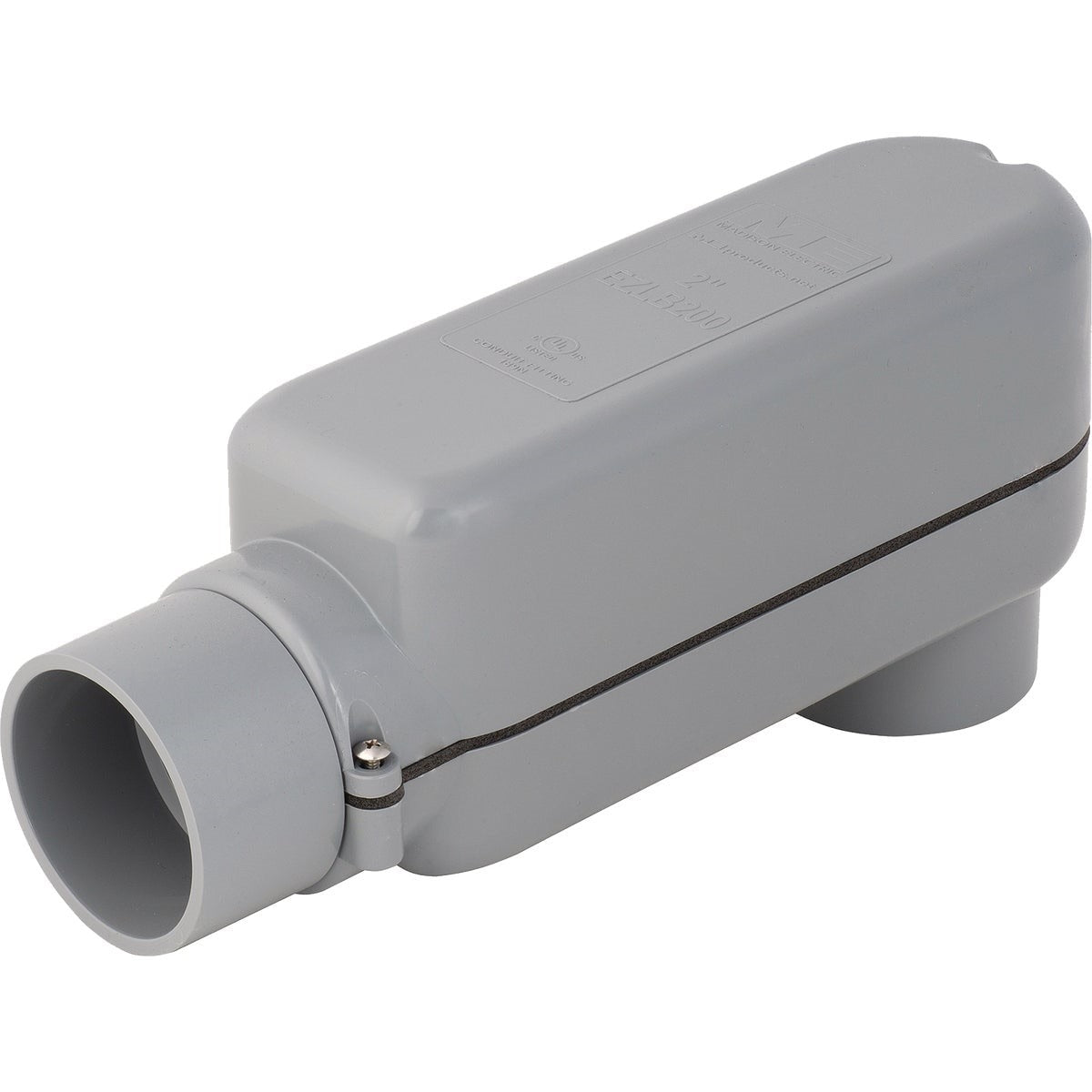

Madison Electric EZLB200 Pvc Service Entrance Conduit Body

Product Description

The MADISON ELECTRIC EZLB200 is a 2-inch gray molded PVC service entrance conduit body designed to simplify the installation of large-gauge service entrance conductors through right-angle turns. The patented 3-piece split-body design gives installers the room needed to maneuver heavy wire without forcing it through a tight bend, reducing the risk of insulation damage and physical strain. The split construction eliminates pinch points that can nick conductors during pull-through. A wet-location gasket and a 2-inch collar for connection to PVC conduit are included. This is a single-person installation, which helps reduce crew requirements on residential and light commercial service work.

This conduit body is used in electrical service entrance applications where conductors must transition through a 90-degree angle at the meter base, service panel, or weather head. It is suited for outdoor and wet-location installations where PVC conduit systems are specified. Electricians installing new residential services or upgrading existing service entrance runs will find the 3-piece design particularly useful when working with large AWG conductors that are difficult to route through standard LB conduit bodies.

Key Features

• Patented 3-piece split-body design provides extra working room for large-gauge conductors
• Split body eliminates pinch points that can damage wire insulation during installation
• Includes wet-location gasket rated for outdoor and damp environments
• Includes 2-inch collar for direct connection to PVC conduit
• Designed for single-person installation, reducing labor requirements
• Molded gray PVC construction resists corrosion and UV degradation

Compatibility

Designed as an OEM-style replacement and standard-fit conduit body for 2-inch PVC conduit service entrance systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the utility service before working on or near service entrance conductors and consult with the local utility for lockout requirements. Ensure all conduit joints and the included gasket are properly seated to maintain wet-location integrity. Do not over-tighten fittings on PVC conduit, as the material can crack under excessive force.

Technical Specifications

• Conduit Size: 2 inches
• Material: Molded PVC (polyvinyl chloride)
• Color: Gray
• Body Design: 3-piece split body
• Wet Location Rated: Yes, gasket included
• Weight: 1.54 pounds
• Sold As: Each
• UPC: 00784297023071

Standard Information

• Brand: MADISON ELECTRIC
• Manufacturer Part Number: EZLB200
