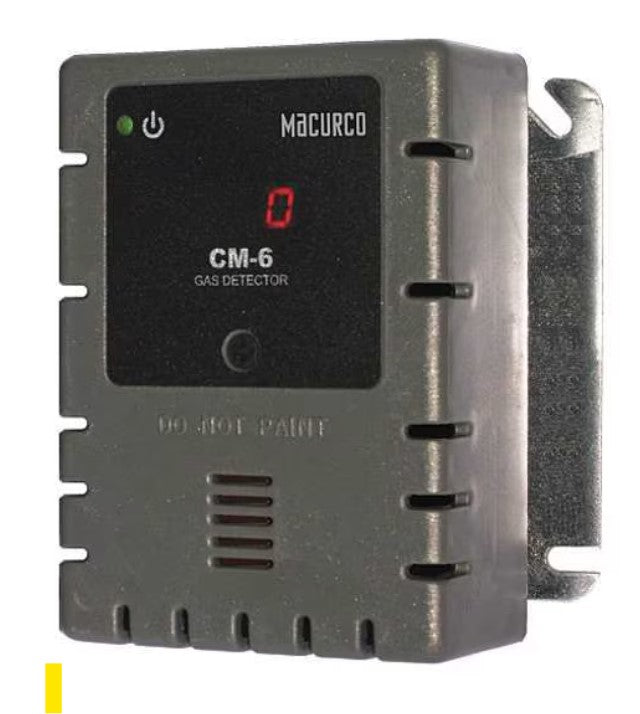

Macurco 70-0715-6500-9 CM-6 Carbon Monoxide CO Fixed Gas Detector and Controller 12-24VAC or 12-32VDC Replaces MA-CS102AFCK

Product Description

The Macurco 70-0715-6500-9 is a fixed gas detector, controller, and transducer designed for carbon monoxide (CO) detection in commercial and industrial environments. This low voltage unit operates on 12-24VAC or 12-32VDC, providing continuous monitoring of CO levels up to 200 PPM. It features a digital display for gas concentrations and integrates with building management systems via its 4-20mA output. Ideal for parking garages, mechanical rooms, and warehouses, it covers up to 7,500 sq ft.

• Mounts on a standard 4" x 4" electrical box for easy installation.
• Features a 5 Ampere SPDT fan relay and a 0.5 Ampere NO or NC alarm relay for controlling ventilation or warning devices.
• Provides a 4 to 20 Milliampere current loop output compatible with control panels like the Macurco DVP120.

Product Highlights

The Macurco 70-0715-6500-9 is a factory-calibrated, low voltage carbon monoxide detector with integrated control relays and 4-20mA output for comprehensive gas monitoring and system integration.

Product Information

Standard Information

• Brand: MACURCO
• Manufacturer Part Number: 70-0715-6500-9
• Country of Origin: United States

Technical Specifications

• Device Type: Fixed Gas Detector & Controller
• UNSPSC Code: 46171600
• Certifications: UL 61010-1, ETL, CAN/CSA C22.2, LADBS, UL2034, UL2075
• Category: Gas Detection Fixed Gas and Portable
• Measured Values: Carbon Monoxide (CO) 0-200 PPM
• Product Category: Gas & Specialty Sensors
• Product Subcategory: Gas Detection
• Series: Macurco
• Compatibility: Macurco Control Panel
• Gas Detected: Carbon Monoxide (CO)
• Included Accessories: Manual
• Mounting Location: Wall
• Number of Relays: 2
• Sensor Type: Electrochemical
• Visual Alert Type: Green LED
• Display Type: Digital
• Operating Temperature Range: 0°F to 125°F (-18°C to 52°C)
• Operating Humidity: 10 to 90% RH non-condensing
• Number of Gases Detected: 1
• Coverage Area: 7,500 sq ft
• ADI Part Number: MA-CM6
• Brand: Macurco
• Manufacturer: Aerionics, Inc
• Product Line: Commercial
• Model: CM-6
• Product Series: 6
• Application: Ambulance Bay, Battery Charging Station, Brewery, Bus Depot, Commercial, Fire Station, Loading Dock, Mechanical Room, Parking Lot, Refrigeration Facilities, Restaurant, Storage Facilities, Vehicle Repair Facilities, Warehouse
• Connectivity Technology: Wired
• Detectable Medium: Gas
• Status Indicators: Yes
• Replaces ADI Part Number: MA-CS102AFCK
• Replaces Model Number: CS102A-FCK
• Color: Gray
• Form Factor: Ceiling Mount, Wall Mount
• Input Voltage: 12V AC, 12V DC, 24V AC, 32V DC
• Power Consumption: 3 W (max)
• Current Draw @ 24 VDC: 75 mA in alarm, 50 mA fan relay on, 23 mA stand by
• Connections: Plugs/Terminals
• Mounting Box Requirement: 4x4 electrical (not included)
• Fan Relay Specifications: 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching
• Fan Relay Actuation Levels: Selectable at disabled, 15 ppm, 25 ppm, 35 ppm (default), 50 ppm or 100 ppm
• Fan Delay Settings: 0, 1, 3 (default), 5, 10 minutes
• Fan Relay Minimum Runtime: 0 (default), 3, 5, 10, 15 minutes
• Alarm Relay Specifications: 0.5A 120 V, 60 VA
• Alarm Relay Actuation Type: Selectable N.O. (default) or N.C.
• Alarm Relay Actuation Levels: Disabled, 50 ppm, 100 ppm, 150 ppm, 200 ppm (default)
• Current Loop Output: 4-20 mA (0-200 ppm)
• Country of Origin: US
