MACON Macon MBP-SV-150F150F SV3 strainer valve (1-1/2 inches) union end PT port bypass and drain valve
MACON Macon MBP-SV-150F150F SV3 strainer valve (1-1/2 inches) union end PT port bypass and drain valve

Macon MBP-SV-150F150F SV3 strainer valve (1-1/2 inches) union end PT port bypass and drain valve

Brand: MACON
SKU: MBP-SV-150F150F
Availability: In Stock

Ships same day if ordered by 12 pm
$300.42
$300.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

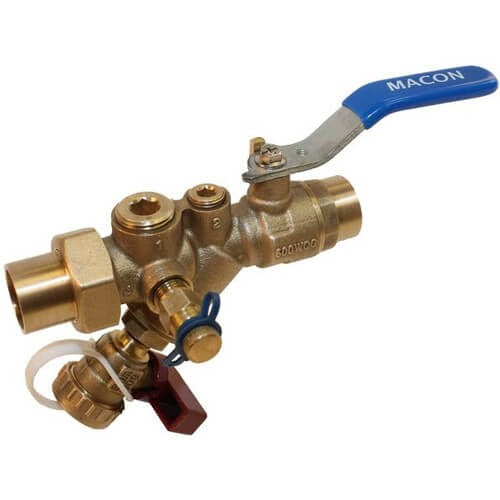

Macon MBP-SV-150F150F is an SV3 strainer valve that combines a ball valve, wye strainer and union with a 1-1/2" FPT connection, a pressure tap (PT) port, an integrated bypass port and a hose-end drain valve. The unit includes a 20 mesh stainless steel strainer, chrome-plated full-port ball with Teflon seats, double O-ring shaft seals and EPDM seals. Rated to 600 PSI and 250 F for inline isolation and filtration.

  • Combination ball valve, wye strainer and union with 1-1/2" FPT connection and union end O-ring seal
  • Integrated PT (pressure tap) port, 3/4" bypass port and hose-end drain valve; 20 mesh stainless steel strainer
  • Chrome-plated full-port ball with Teflon seats, double O-ring shaft seals and EPDM seals; forged brass body

Product Highlights

Combination ball valve, wye strainer and union; 1-1/2" FPT; 20 mesh strainer; rated 600 PSI, 250 F

Product Information

Standard Information

  • Brand: MACON
  • Manufacturer Part Number: MBP-SV-150F150F
Technical Specifications
Brand
Macon
MPN
MBP-SV-150F150F
Model/Series
SV3
Size
1-1/2"
Thread Size
1-1/2" FPT (female pipe thread)
Connection Type
FNPT x FNPT
Connection Method
Threaded
End Connections
Union end with O-ring seal; FNPT fixed end
Body Material
Forged brass
Ball
Chrome-plated brass, full port, 100% positive shut-off
Seats
Teflon
Seals
EPDM; double O-ring shaft seals
Stem Material
Brass
Handle
Full size zinc plated lever with vinyl grip
Strainer Mesh
20 mesh stainless steel
Ports/Features
PT (pressure tap) port, bypass port, hose-end drain valve
Bypass Port Size
3/4"
Drain Type
Hose-end drain valve
Pressure Rating
600 PSI (4140 kPa)
Temperature Rating
250 F (120 C)
