Macon MBP-SV-125F125F Combination Strainer and Shut-Off Valve (1-1/4 inch FPT)

Product Description

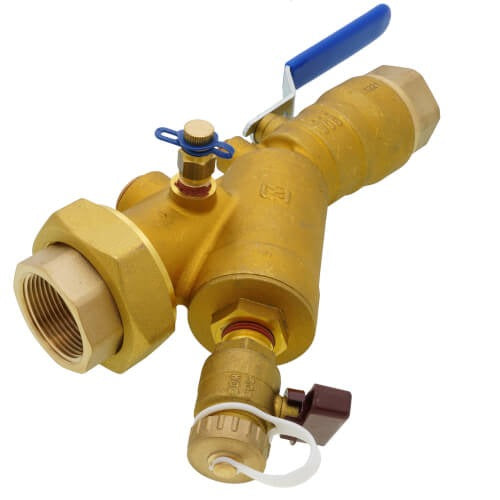

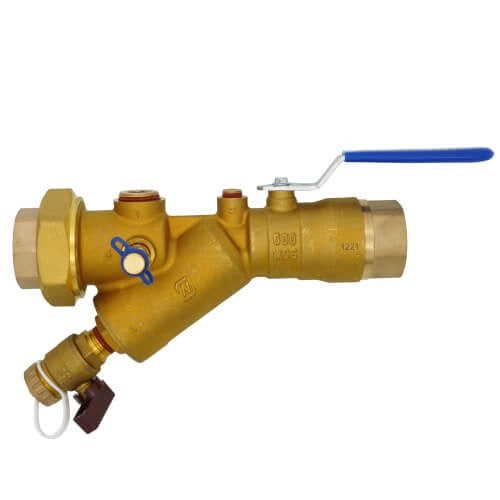

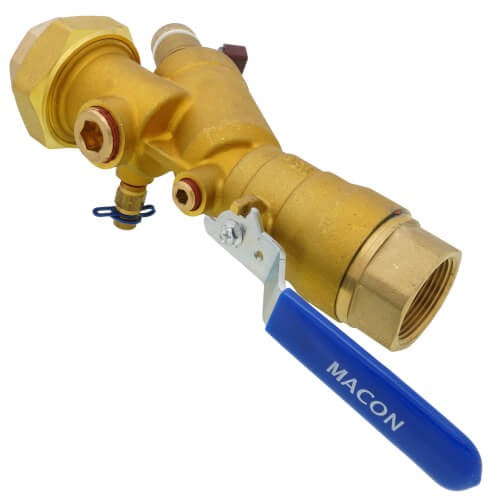

Macon MBP-SV-125F125F is a combination strainer and shut-off valve with a PT (pressure/temperature) drain and union connection. The unit integrates a wye strainer with a 20 mesh stainless steel screen and a full-port ball valve for isolation and service. Constructed with a forged brass body, chrome-plated ball, Teflon seats and double O-ring shaft seals, it is rated to 600 PSI and 250°F (120°C).

• Combination ball valve and wye strainer with 20 mesh stainless steel screen, PT drain and union connection for service
• Forged brass body, chrome-plated full-port ball, Teflon seats, brass stem and double O-ring shaft seals (EPDM seals)
• Rated to 600 PSI (4140 kPa) and 250°F (120°C); includes plugged 3/4 inch bypass port and full-size zinc-plated lever handle with vinyl grip

Product Highlights

1-1/4 inch female pipe thread connection, union end with O-ring, 20 mesh strainer, PT/hose-end drain, 600 PSI and 250°F rating

Product Information

Standard Information

• Brand: MACON
• Manufacturer Part Number: MBP-SV-125F125F
