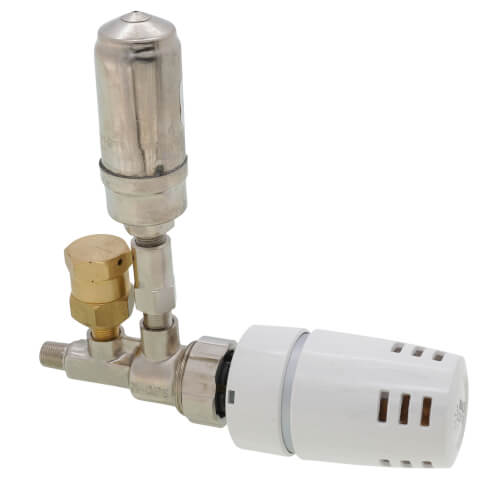

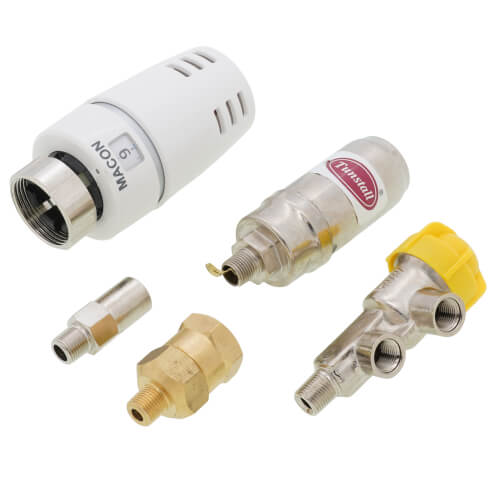

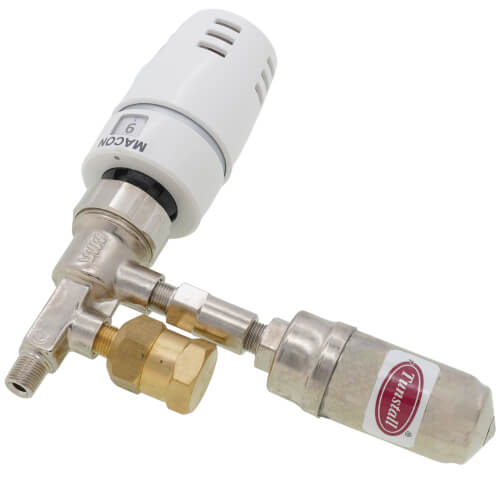

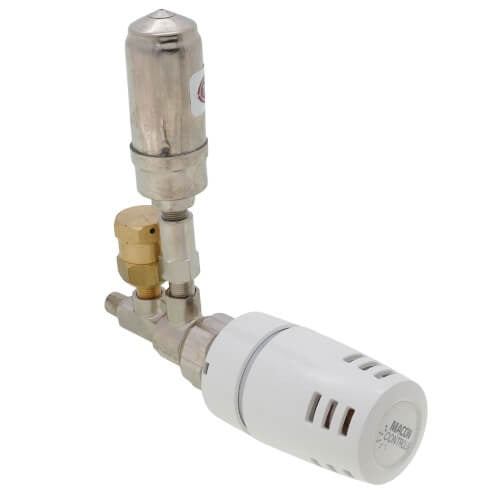

Macon Controls MAC-OPSK-W/EVO 1/8 Threaded One-Pipe Steam Straight Valve Assembly with EVO-28 Operator

Product Description

The Macon Controls MAC-OPSK-W/EVO is a one-pipe steam valve assembly designed for efficient temperature management. It features the reliable MTW direct mounting thermostat that utilizes temperature-sensitive wax to regulate steam flow. This system ensures that room temperature is maintained automatically by modulating the flow of steam based on the desired setting.

• Compact design for easy installation
• Nickel-plated brass valve for durability
• Remote thermostat capabilities available

Product Highlights

This valve assembly includes features such as individual room control and a fully automatic system, allowing for fuel savings of up to thirty percent.

Product Information

Standard Information

• Brand: Macon Controls
• MPN: MAC-OPSK-W/EVO

Technical Specifications

• Size: 1/8 inches
• Material: Nickel-Plated Brass
• Max Temperature: 248°F
• Connection Type: Threaded
• Operating Temperature Range: 46°F - 82°F
• Weight: 0.975 pounds
• Body Pattern: Straight
• Seal: EPDM
