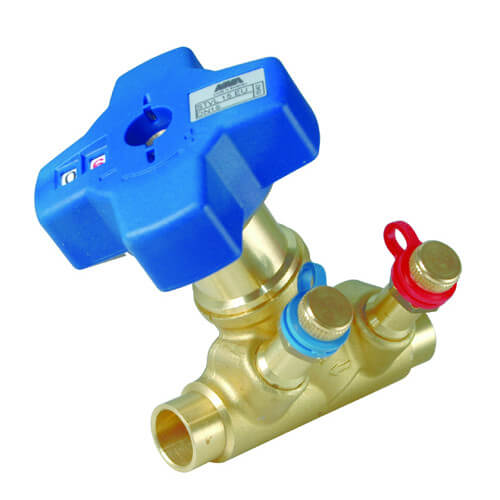

Macon Balancing MB-STVL-1-1/4 1-1/4 Sweat STVL Balancing Valve

Product Description

Macon Balancing produces the MB-STVL-1-1/4, a brass balancing valve designed for efficient flow measurement and control in heating and cooling systems. This valve helps maintain the desired flow rates, ensuring optimal energy usage.

• Y Pattern, globe style design for improved accuracy
• Multi-turn, three hundred sixty degree handwheel with vernier scale and digital readout
• Self sealing pressure and temperature ports

Product Highlights

The Macon Balancing Valve is suitable for measuring and balancing heater and chiller flow rates, leading to reduced maintenance needs and improved comfort.

Product Information

Standard Information

• Brand: Macon Balancing
• Model Number: MB-STVL-1-1/4

Technical Specifications

• Size: 1-1/4 inches
• Material: Brass
• Connection Type: Sweat
• Max Operating Temperature: 250 degrees Fahrenheit
• Max Pressure (PSI): 300
• Min Operating Temperature: -22 degrees Fahrenheit
• Weight: 2.7 pounds
• Shipping Dimensions: 5 inches depth, 4.6 inches width, 4 inches height
