Macon Balancing MB-STVG-4 4 STVG Grooved End Balancing Valve

Product Description

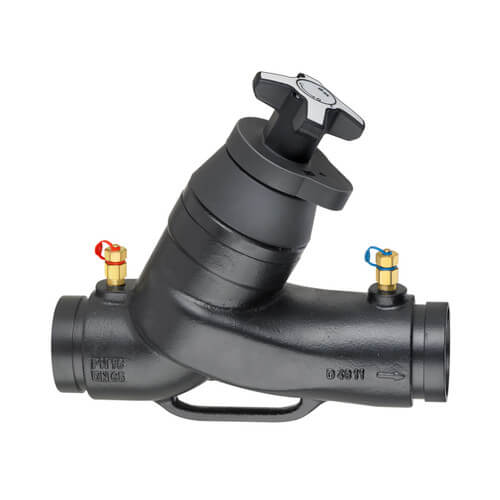

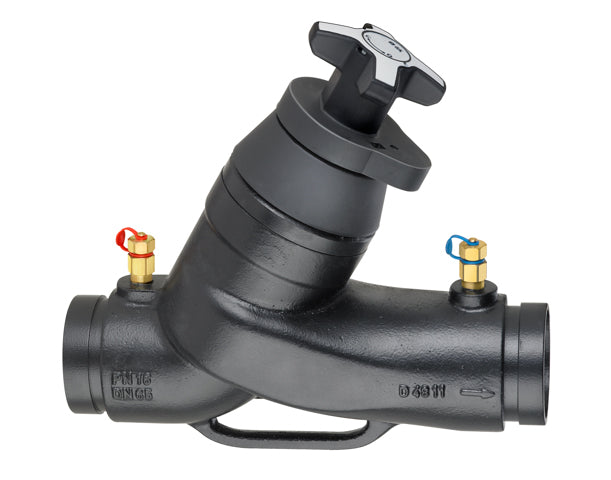

The Macon Balancing MB-STVG-4 is a four-inch Grooved End Balancing Valve designed for accurate and efficient fluid handling. It is ideal for use in heating systems where precise flow measurement and balancing are critical.

• Built-in memory stop for reliable operation.
• Positive shut-off feature enhances system control.
• Compatible with grooved connections for easy installation.

Product Highlights

This balancing valve features a Y pattern design with a multi-turn handwheel for easy adjustment of the flow rate.

Product Information

Standard Information

• Brand: Macon Balancing
• MPN: MB-STVG-4

Technical Specifications

• Pressure Ratings: 235 PSI (16 Bar)
• Operating Temperature: -14°F to 250°F (-10°C to 120°C)
• Connections: #300 Grooved
• Body Material: Ductile Iron
• Stem Material: Stainless Steel (AISI 420)
• Seat Seal: EPDM Perox
• Handwheel Size: 1-1/2 to 6, Polymide with 30% Glass Fiber; 8 to 12, Ductile Iron
