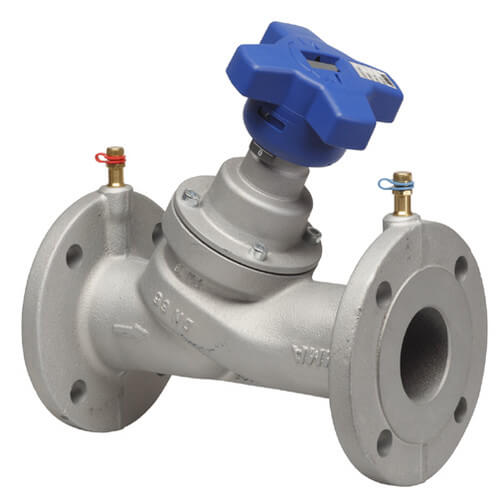

Macon Balancing MB-STVA-5 5 Flanged STVA Balancing Valve

Product Description

The Macon Balancing MB-STVA-5 is a 5-inch flanged balancing valve designed for managing heating and cooling system flow rates. This valve ensures precision in flow measurement and balancing, contributing to reduced maintenance and enhanced energy efficiency.

• Y-pattern globe design for improved accuracy.
• Multi-turn handwheel with a vernier scale and digital readout.
• Self-sealing pressure/temperature ports for convenient readings.

Product Highlights

The Macon Balancing Valve is essential for HVAC systems that require effective flow management.

Product Information

Standard Information

• Brand: Macon Balancing
• Category: Balancing Valves

Technical Specifications

• Size: 5 inches
• Material: Cast Iron
• Weight: 88.2 pounds
• Connection Type: Flanged x Flanged
• Max Operating Temperature: 250 degrees Fahrenheit
• Max Pressure: 250 PSI
• Min Operating Temperature: -14 degrees Fahrenheit
• Shipping Dimensions: 25 inches (Width) x 25.75 inches (Depth) x 11.73 inches (Height)
