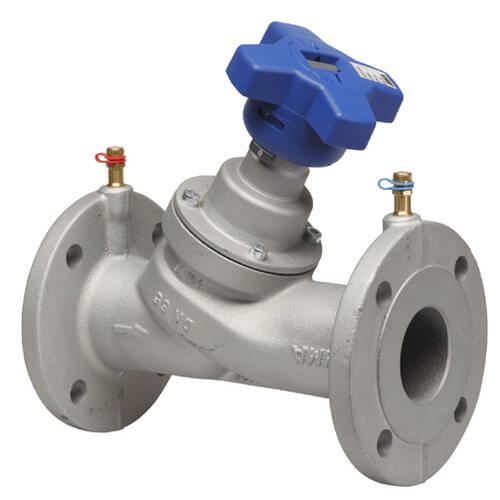

Macon Balancing MB-STVA-3 3 Flanged STVA Balancing Valve

Product Description

The Macon Balancing MB-STVA-3 is a 3-inch flanged balancing valve designed for heating and cooling systems. It accurately measures and balances flow rates, enhancing comfort and energy efficiency. This valve features a Y pattern, globe style design for improved accuracy. The multi-turn, 360-degree handwheel includes a vernier scale and digital readout for precise adjustments. There are self-sealing pressure and temperature ports, a built-in memory stop, and optional drain valves, making it a versatile choice for HVAC systems.

• Constructed from durable cast iron
• Rated for a maximum operating temperature of two hundred fifty degrees Fahrenheit
• Flanged connections for easy installation

Product Highlights

This valve offers effective flow measurement, flow balancing, and positive shutoff to streamline system operation.

Product Information

Standard Information

• Brand: Macon Balancing
• Product Type: Balancing Valve

Technical Specifications

• MPN: MB-STVA-3
• Size: 3 inches
• Material: Cast Iron
• Weight: forty-three point fifty-eight pounds
• Connection Type: Flanged x Flanged
• Maximum Operating Temperature: two hundred fifty degrees Fahrenheit
• Maximum Pressure: two hundred fifty PSI
• Minimum Operating Temperature: minus fourteen degrees Fahrenheit
