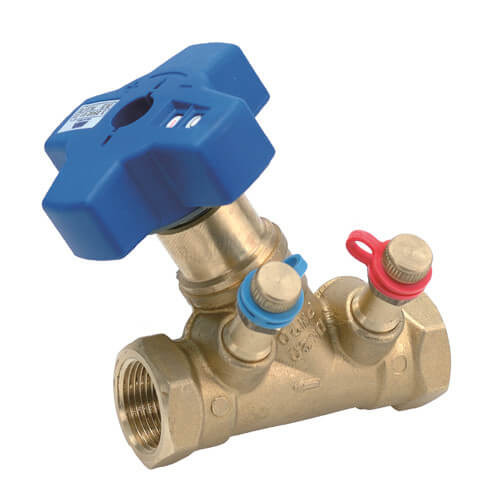

Macon Balancing MB-STV-NPT-1-1/2 1-1/2 NPT STV Balancing Valve

Product Description

Macon Balancing MB-STV-NPT-1-1/2 is a balancing valve designed for heating and cooling systems. This valve is essential for measuring and balancing flow rates, contributing to reduced maintenance, improved comfort, and lower energy usage.

• Y pattern and globe style design for accuracy
• Multi-turn handwheel with a vernier scale for precise adjustments
• Built-in pressure and temperature ports for easy monitoring

Product Highlights

This valve provides flow measurement, flow balancing, and positive shutoff capabilities.

Product Information

Standard Information

• Brand: Macon Balancing
• Category: Heating Supplies & Parts

Technical Specifications

• Size: 1-1/2 inches
• Material: Brass
• Weight: 3.7 lbs
• Connection Type: Threaded
• Max Operating Temperature: 250 degrees Fahrenheit
• Max Pressure: 300 PSI
• Min Operating Temperature: -22 degrees Fahrenheit
• Shipping Dimensions: 6.7 inches (depth) x 5 inches (width) x 4.5 inches (height)
