Macomb Group MB930UD CPVC S80 Soc/Thrd Tu Ball Valve Viton

Product Description

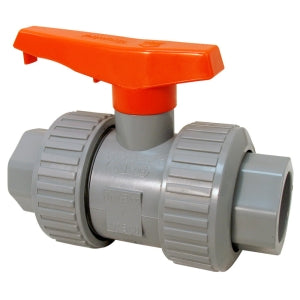

The MACOMB GROUP MB930UD is a CPVC full-port true union ball valve with socket end X FNPT connection. Designed for durability, it features a CPVC body, stem, and trim, with PTFE seats and FKM seals. Suitable for various applications, this valve is rated to 250 PSI at 73 DEG F and a maximum service temperature of 210 DEG F.

• Full-Port True Union Ball Valve
• Improved union nut grip style and flats on end connectors
• Universal product includes socket and threaded end connections

Product Highlights

This CPVC ball valve offers reliable performance with its robust construction and versatile connection options.

Product Information

Standard Information

• Brand: MACOMB GROUP
• Manufacturer Part Number: MB930UD

Technical Specifications

• Series/Model: U51TB-V/Model D
• Nominal Size: 2 IN
• Connection Type: Socket End X FNPT
• Pressure Rating: 250 PSI At 73 DEG F Water Non-Shock
• Pressure Class: SCH 80
• Temperature Rating: 210 DEG F Maximum Service
• Body Material: CPVC
• Stem Material: CPVC
• Trim Material: CPVC Ball
• Seat Material: PTFE
• Seal Material: FKM
• Material Standard - Body: ASTM F1970
• Industry Standards: NSF/ANSI Standard 14, NSF/ANSI Standard 61, Annex G
• Lead Free: No
• Flow Co-Efficient (Cv): 178.4
• Sub Brand: Chemtrol®, True Bloc®, Corzan® HP
• Item Name: True Union Ball Valve
• Type: Full-Port
